10.3.2
Front Panel Menus – ODU Menu Hierarchy
Figure 10-1 identifies the front panel menu hierarchies allocated to the configuration, monitor, and
control of a Comtech EF Data ODU. More specifically, menu branches that incorporate ODU
operations are shown in bold; menu content that is dedicated to ODU operations is additionally
italicized.

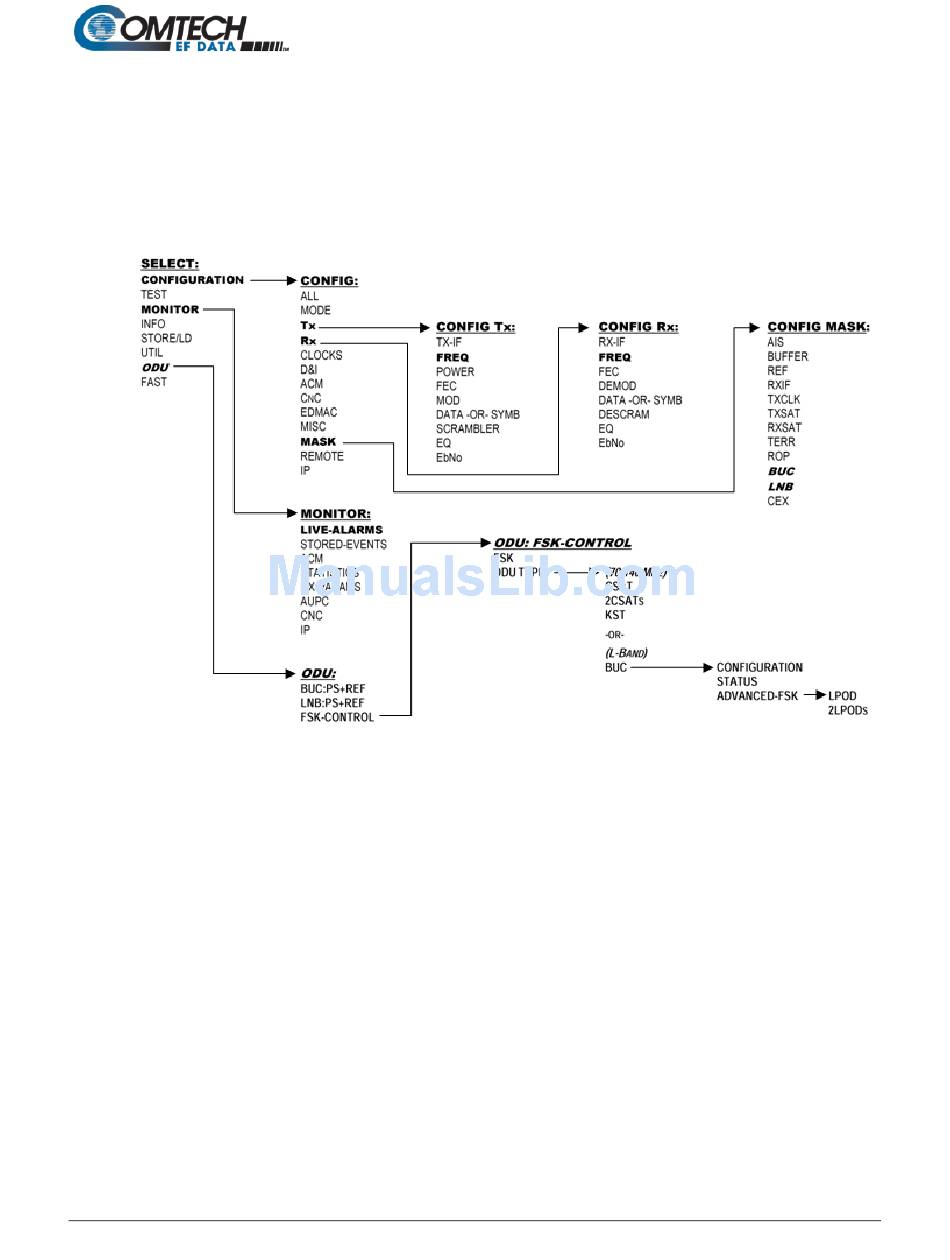

Figure 10-1. Front Panel ODU Operation Menu Tree – (FW Ver. 1.1.1)
ODU (Transceiver, BUC, LNB) Operation
CDM-425 Advanced Satellite Modem
10–4
Revision 0
MN-CDM-425
