10.5.1.2.1.1 Home > Outdoor Unit (ODU) > CSAT-5060 > Up Converter Settings
1/2, 2/2
After configuring the CDM-425 for L-Band operation, and when a Block Up
Converter (BUC) is installed, you may use this page to configure BUC operating
settings and to view the BUC operational status.

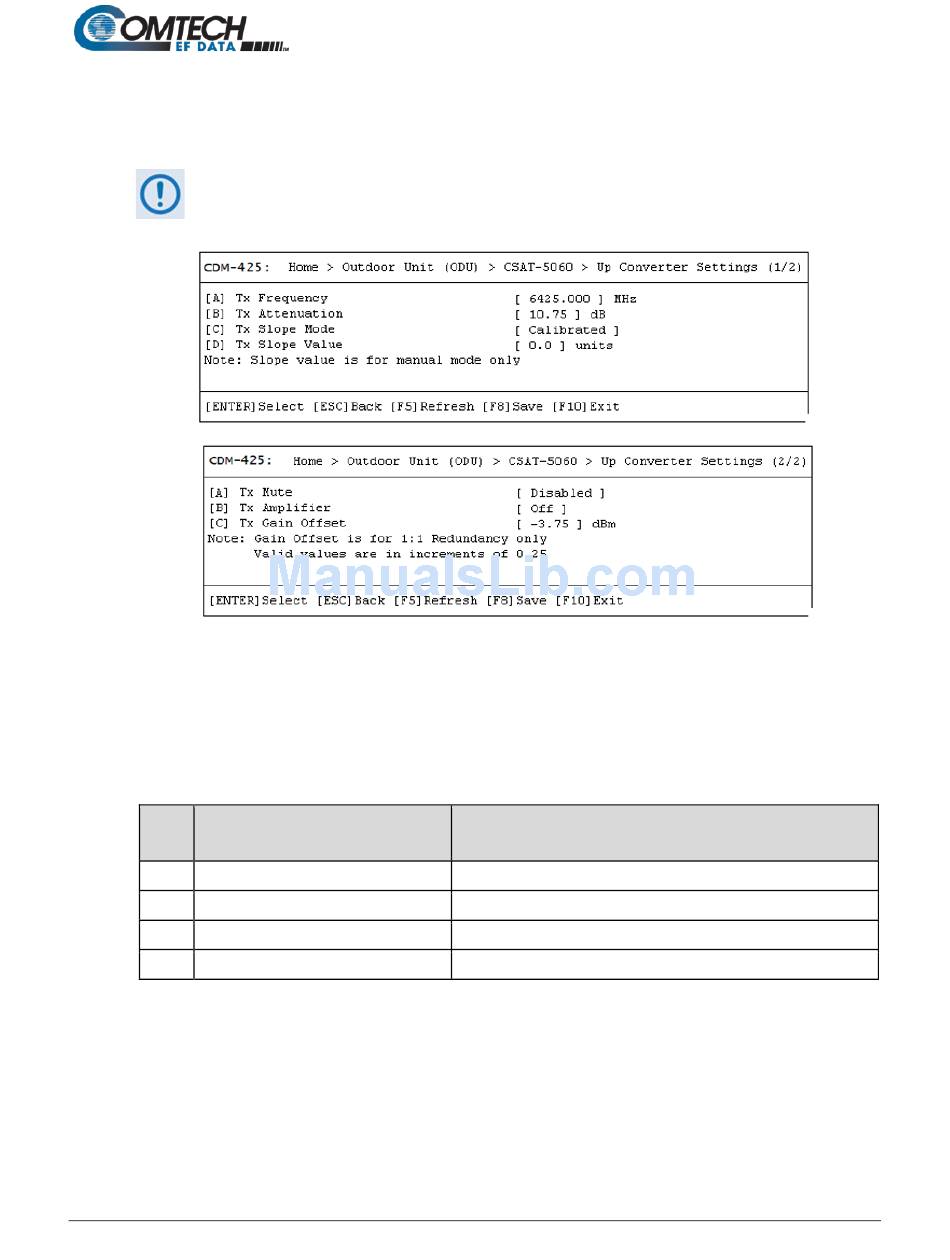

Open the Up Converter Settings 1/2 page or the Up Converter Settings2/2 page from the
nested CSAT-5060 submenu.
The Up Converter Settings 1/2 page contains the following options:
Hot
Key
A Tx Frequency
B Tx Attenuation
C Tx Slope Mode
D
Tx Slope Value
ODU (Transceiver, BUC, LNB) Operation
Dialog Window
CDM-425 Advanced Satellite Modem
Option Entry
Enter a value from 5845.000 to 6725.000 MHz
Enter a value from 0.00 to 25.00 dB
Use the ↑↓ arrow keys to select Manual or Calibrated
Enter a value from 0.0 to 1.0 units
