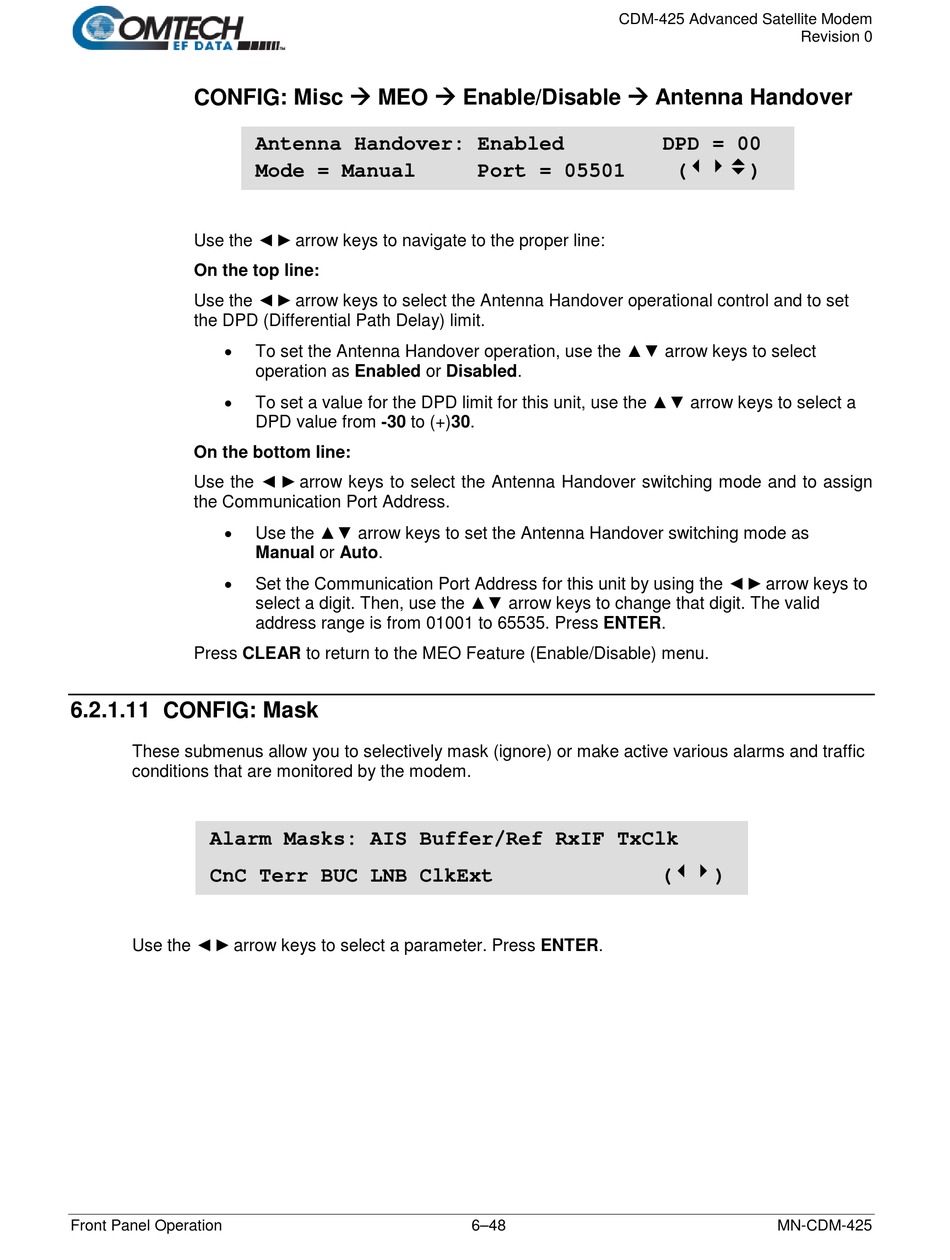

CONFIG: Misc  MEO  Enable/Disable  Antenna Handover
Use the ◄ ►arrow keys to navigate to the proper line:
On the top line:
Use the ◄ ►arrow keys to select the Antenna Handover operational control and to set
the DPD (Differential Path Delay) limit.
•
•
On the bottom line:
Use the ◄ ►arrow keys to select the Antenna Handover switching mode and to assign
the Communication Port Address.
•
•
Press CLEAR to return to the MEO Feature (Enable/Disable) menu.

6.2.1.11 CONFIG: Mask

These submenus allow you to selectively mask (ignore) or make active various alarms and traffic
conditions that are monitored by the modem.
Alarm Masks: AIS Buffer/Ref RxIF TxClk
CnC Terr BUC LNB ClkExt
Use the ◄ ►arrow keys to select a parameter. Press ENTER.
Front Panel Operation
Antenna Handover: Enabled
Mode = Manual
To set the Antenna Handover operation, use the ▲▼ arrow keys to select
operation as Enabled or Disabled.
To set a value for the DPD limit for this unit, use the ▲▼ arrow keys to select a
DPD value from -30 to (+)30.
Use the ▲▼ arrow keys to set the Antenna Handover switching mode as
Manual or Auto.
Set the Communication Port Address for this unit by using the ◄ ►arrow keys to
select a digit. Then, use the ▲▼ arrow keys to change that digit. The valid
address range is from 01001 to 65535. Press ENTER.
CDM-425 Advanced Satellite Modem
Port = 05501
