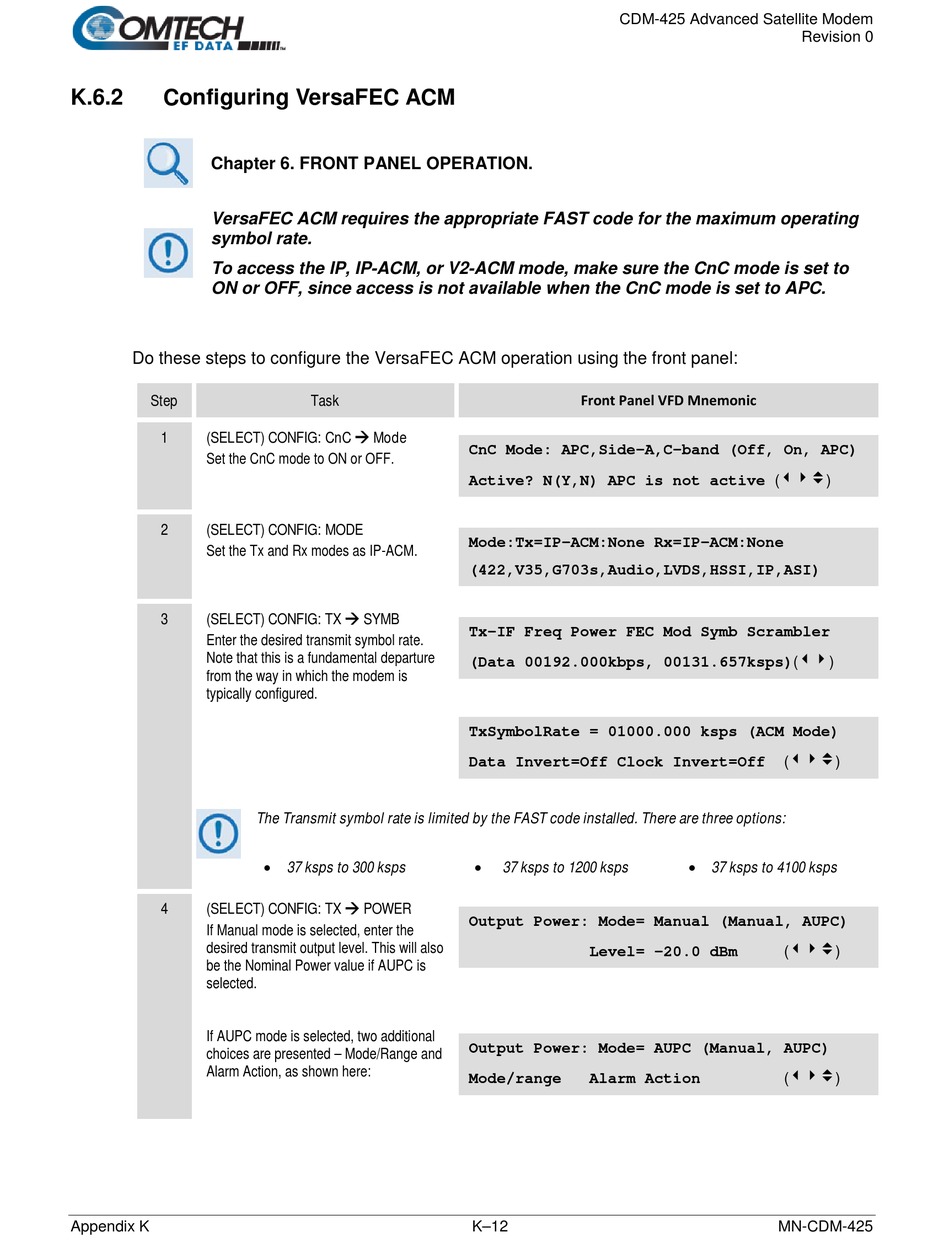

K.6.2

Configuring VersaFEC ACM

Chapter 6. FRONT PANEL OPERATION.
VersaFEC ACM requires the appropriate FAST code for the maximum operating
symbol rate.
To access the IP, IP-ACM, or V2-ACM mode, make sure the CnC mode is set to
ON or OFF, since access is not available when the CnC mode is set to APC.
Do these steps to configure the VersaFEC ACM operation using the front panel:
Step
1 (SELECT) CONFIG: CnC  Mode
Set the CnC mode to ON or OFF.
2 (SELECT) CONFIG: MODE
Set the Tx and Rx modes as IP-ACM.
3 (SELECT) CONFIG: TX  SYMB
Enter the desired transmit symbol rate.
Note that this is a fundamental departure
from the way in which the modem is
typically configured.
4 (SELECT) CONFIG: TX  POWER
If Manual mode is selected, enter the
desired transmit output level. This will also
be the Nominal Power value if AUPC is
selected.
If AUPC mode is selected, two additional
choices are presented – Mode/Range and
Alarm Action, as shown here:
Appendix K
Task
The Transmit symbol rate is limited by the FAST code installed. There are three options:
• 37 ksps to 300 ksps
CDM-425 Advanced Satellite Modem
Front Panel VFD Mnemonic
CnC Mode: APC,Side-A,C-band (Off, On, APC)
Active? N(Y,N) APC is not active ()
Mode:Tx=IP-ACM:None Rx=IP-ACM:None
(422,V35,G703s,Audio,LVDS,HSSI,IP,ASI)
Tx-IF Freq Power FEC Mod Symb Scrambler
(Data 00192.000kbps, 00131.657ksps)()
TxSymbolRate = 01000.000 ksps (ACM Mode)
Data Invert=Off Clock Invert=Off
37 ksps to 1200 ksps
•
Output Power: Mode= Manual (Manual, AUPC)
Level= –20.0 dBm
Output Power: Mode= AUPC (Manual, AUPC)
Mode/range Alarm Action
K–12
Revision 0
()
• 37 ksps to 4100 ksps
()
()
