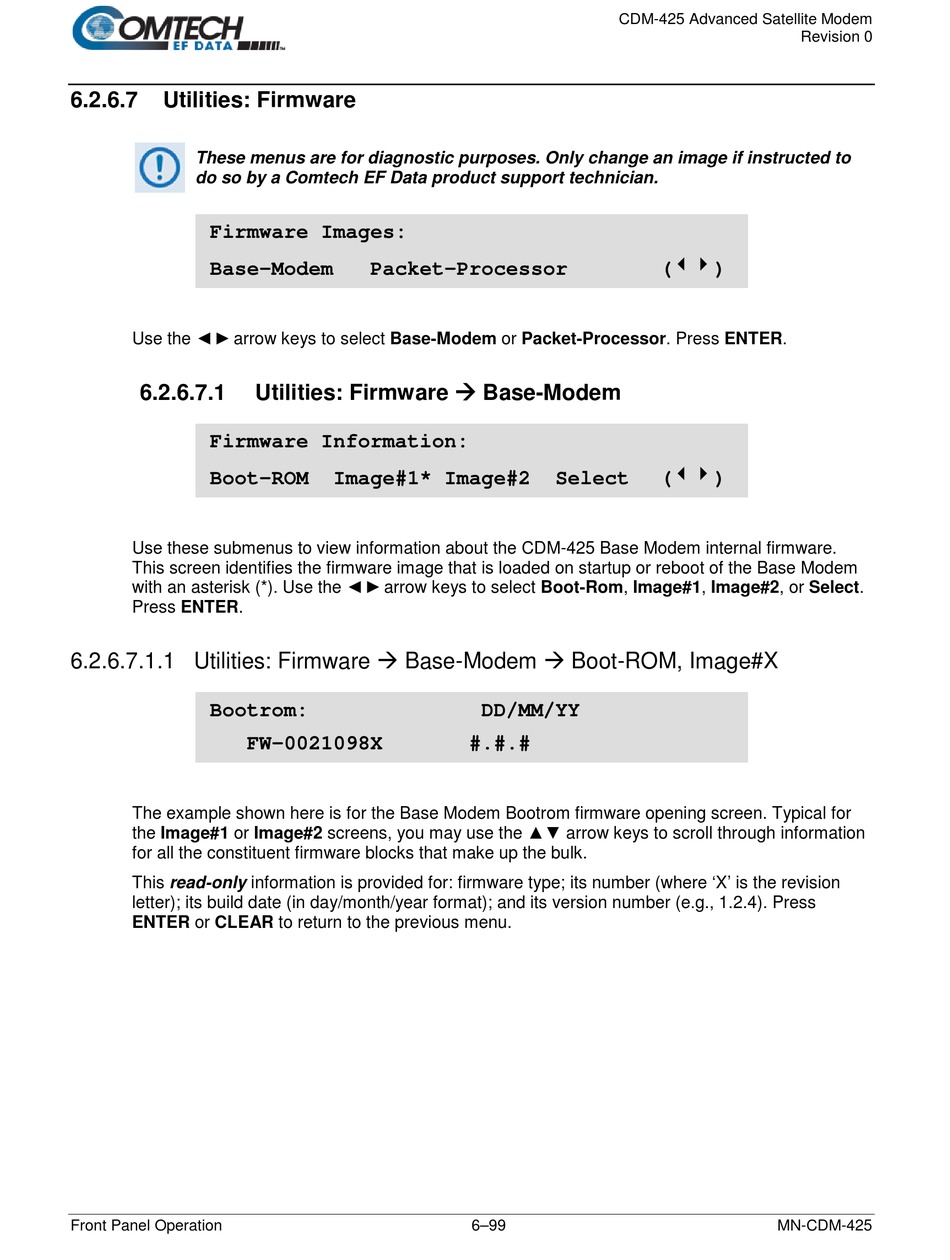

6.2.6.7
Utilities: Firmware
These menus are for diagnostic purposes. Only change an image if instructed to
do so by a Comtech EF Data product support technician.
Firmware Images:
Base-Modem
Use the ◄ ►arrow keys to select Base-Modem or Packet-Processor. Press ENTER.
6.2.6.7.1
Firmware Information:
Boot-ROM
Use these submenus to view information about the CDM-425 Base Modem internal firmware.
This screen identifies the firmware image that is loaded on startup or reboot of the Base Modem
with an asterisk (*). Use the ◄ ►arrow keys to select Boot-Rom, Image#1, Image#2, or Select.
Press ENTER.
6.2.6.7.1.1 Utilities: Firmware Base-Modem Boot-ROM, Image#X
Bootrom:
FW-0021098X
The example shown here is for the Base Modem Bootrom firmware opening screen. Typical for
the Image#1 or Image#2 screens, you may use the ▲▼ arrow keys to scroll through information
for all the constituent firmware blocks that make up the bulk.
This read-only information is provided for: firmware type; its number (where 'X' is the revision
letter); its build date (in day/month/year format); and its version number (e.g., 1.2.4). Press
ENTER or CLEAR to return to the previous menu.
Front Panel Operation
Packet-Processor
Utilities: Firmware Base-Modem
Image#1* Image#2
CDM-425 Advanced Satellite Modem
Select
DD/MM/YY
#.#.#
6–99
Revision 0
()
()
MN-CDM-425
