This section displays all existing QoS Rules Table entries. From left to right:
Column
Index
Protocol
VLAN Range
TOS
Src IP/Mask
Dst IP/Mask
Min Src Port
Max Src Port
Min Dst Port
Max Dst Port
Max BW (Kbps)
Min BW (Kbps)
Priority
WRED
Filter All

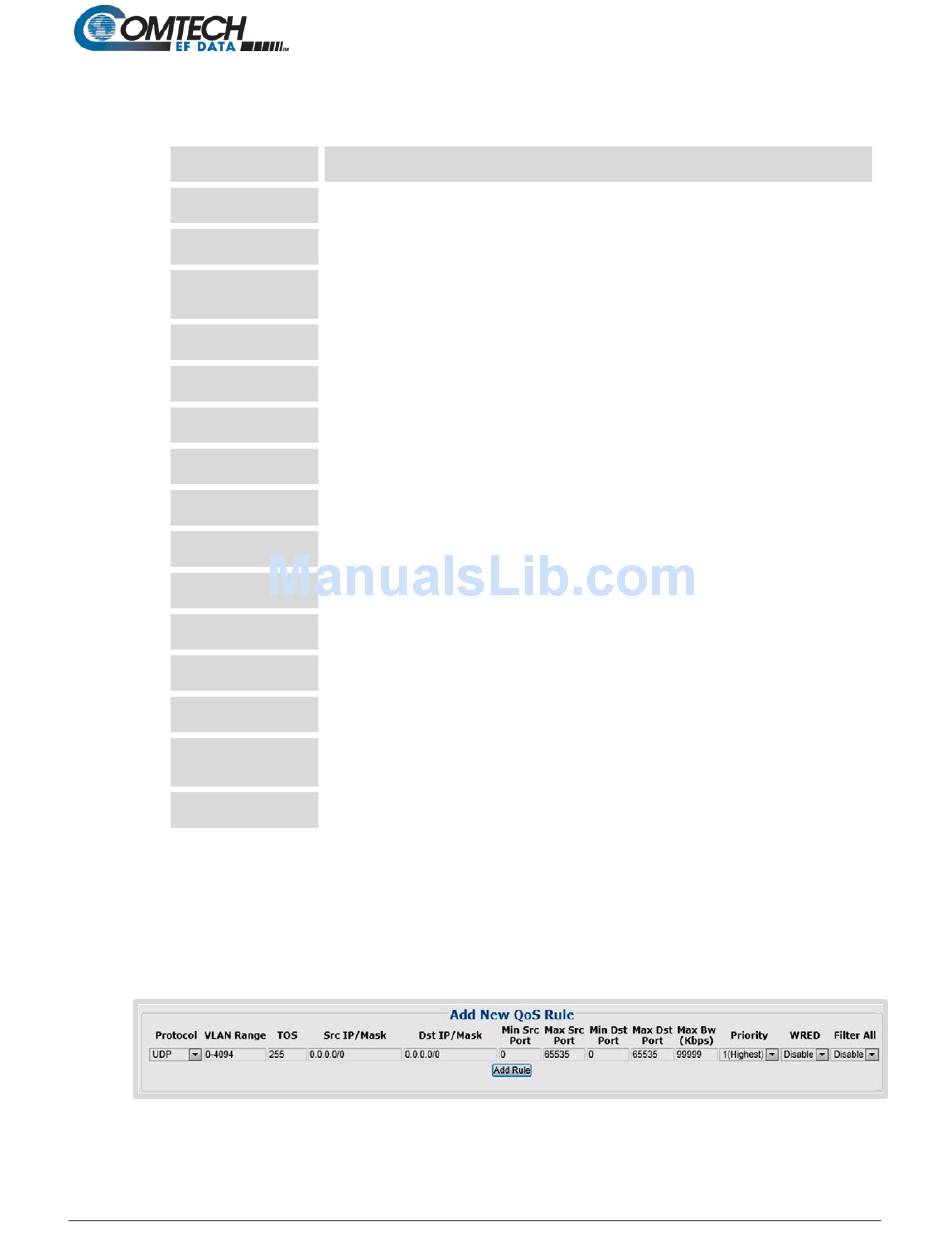

Add New QoS Rule
This section allows you to directly add a new rule entry. Note that the index will automatically
increment to the next available number.
For the "Max/Priority" page:
Ethernet-based Remote Product Management
This is the internal table index that is automatically assigned and cannot be edited.
Specifies the protocol for the specific rule.
Specifies the minimum-to-maximum range of VLAN IDs (applicable only in Managed
Switch Mode)
Specifies the Type Of Service
Identifies the Source IP Address/Mask in the form XXX.XXX.XXX.XXX/YY.
Identifies the Destination IP Address/Mask in the form XXX.XXX.XXX.XXX/YY.
Specifies the Minimum Source Port.
Specifies the Maximum Source Port.
Specifies the Minimum Destination Port.
Specifies the Maximum Destination Port.
("Max/Priority" page only) Specifies the maximum bandwidth value.
("Min/Max" page only) Specifies the minimum bandwidth value.
("Max/Priority" page only) Specifies the priority established for the specific rule.
Specifies the WRED (Weighted Random Early Detection) setting for the specific rule
as Disable or Enable.
Specifies the flow filter setting for the specific rule as Disable or Enable.
