Figure 1-8. Rx Carrier Level Vs. Symbol Rate - L-Band (950-2250 Mhz); Figure 1-9. Rx Carrier Level Vs. Symbol Rate - If Band (50-180 Mhz) - Comtech EF Data CDM-425 Installation And Operation Manual

CDM-425 Advanced Satellite Modem
Revision 0
0
-10
Maximum
-20
-30
-40
-50
-60
-70
Minimum
-80
-90
10 100 1000 10000 100000
Symbol Rate in ksps

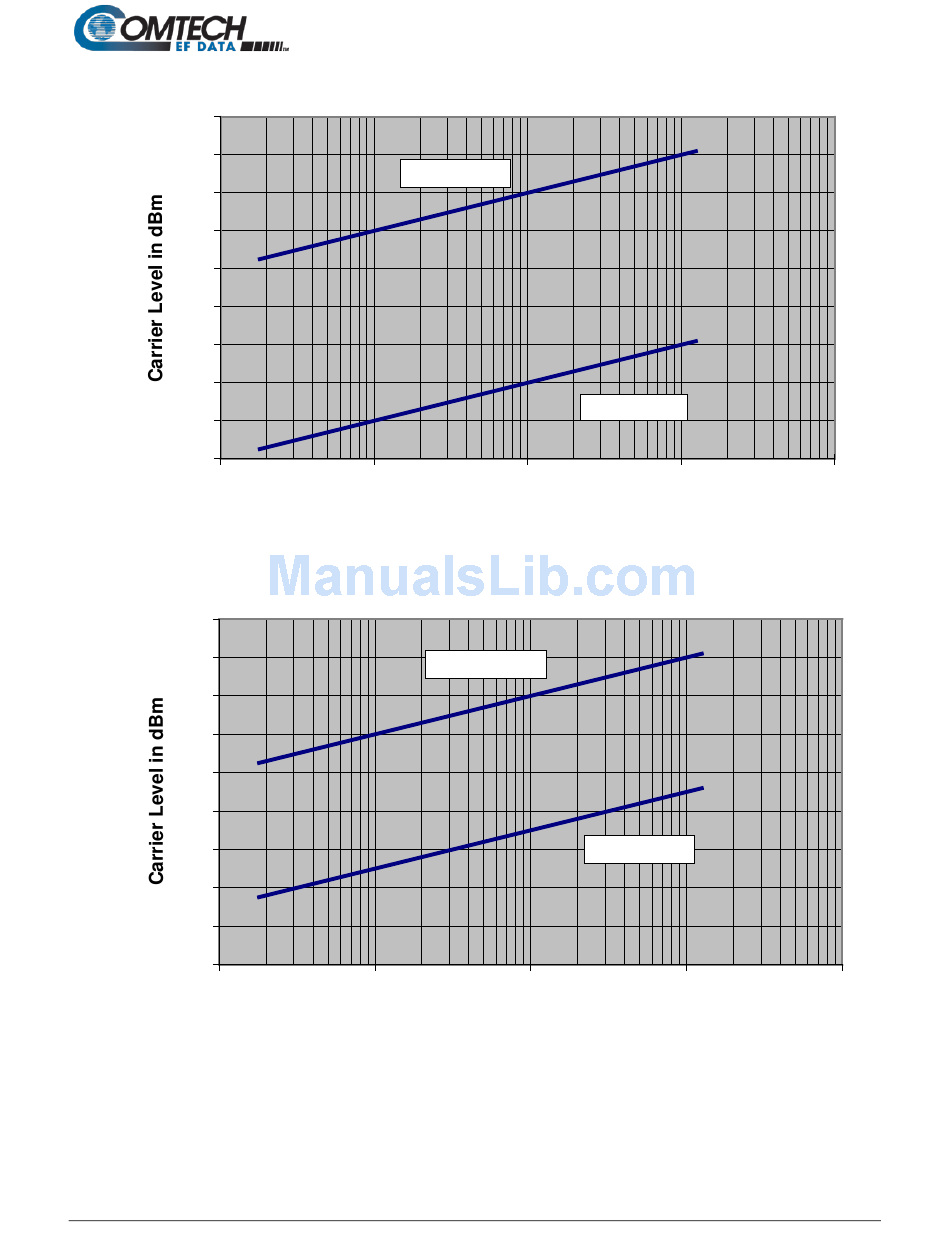

Figure 1-8. Rx Carrier Level vs. Symbol Rate – L-Band (950-2250 MHz)
10
0
Maximum
-10
-20
-30
-40
Minimum
-50
-60
-70
-80
10 100 1000 10000 100000
Symbol Rate in ksps
Figure 1-9. Rx Carrier Level vs. Symbol Rate – IF Band (50-180 MHz)
