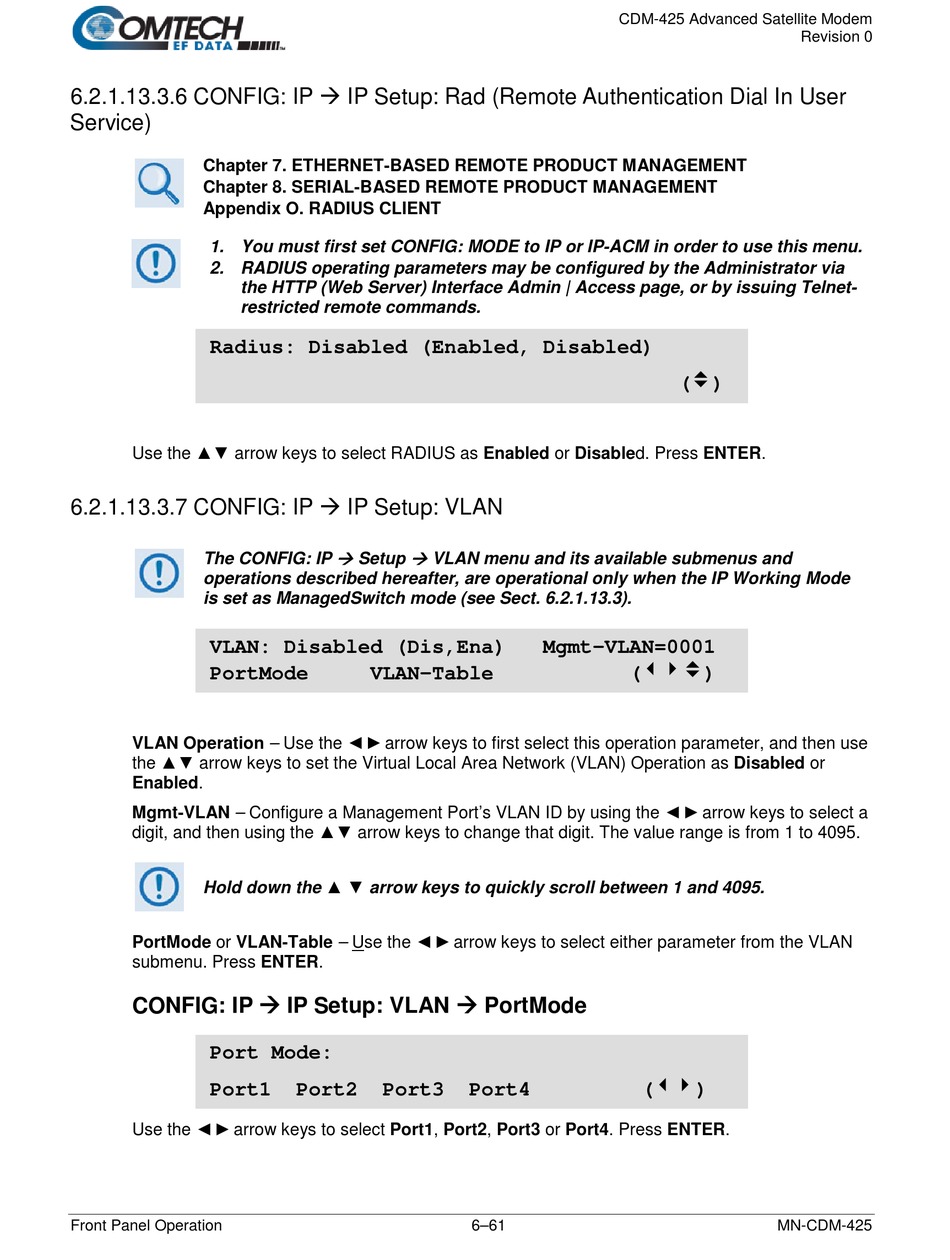

6.2.1.13.3.6 CONFIG: IP  IP Setup: Rad (Remote Authentication Dial In User
Service)
Chapter 7. ETHERNET-BASED REMOTE PRODUCT MANAGEMENT
Chapter 8. SERIAL-BASED REMOTE PRODUCT MANAGEMENT
Appendix O. RADIUS CLIENT
1. You must first set CONFIG: MODE to IP or IP-ACM in order to use this menu.
2. RADIUS operating parameters may be configured by the Administrator via
the HTTP (Web Server) Interface Admin | Access page, or by issuing Telnet-
restricted remote commands.
Radius: Disabled (Enabled, Disabled)
Use the ▲▼ arrow keys to select RADIUS as Enabled or Disabled. Press ENTER.
6.2.1.13.3.7 CONFIG: IP  IP Setup: VLAN
The CONFIG: IP
operations described hereafter, are operational only when the IP Working Mode
is set as ManagedSwitch mode (see Sect. 6.2.1.13.3).
VLAN: Disabled (Dis,Ena)
PortMode
VLAN Operation – Use the ◄ ►arrow keys to first select this operation parameter, and then use
the ▲▼ arrow keys to set the Virtual Local Area Network (VLAN) Operation as Disabled or
Enabled.
Mgmt-VLAN – Configure a Management Port's VLAN ID by using the ◄ ►arrow keys to select a
digit, and then using the ▲▼ arrow keys to change that digit. The value range is from 1 to 4095.
Hold down the ▲ ▼ arrow keys to quickly scroll between 1 and 4095.
PortMode or VLAN-Table – Use the ◄ ►arrow keys to select either parameter from the VLAN
submenu. Press ENTER.
CONFIG: IP  IP Setup: VLAN  PortMode
Port Mode:
Port1
Use the ◄ ►arrow keys to select Port1, Port2, Port3 or Port4. Press ENTER.
Front Panel Operation
 
Setup VLAN menu and its available submenus and
VLAN-Table
Port2 Port3 Port4
6–61
