6.2.1.8

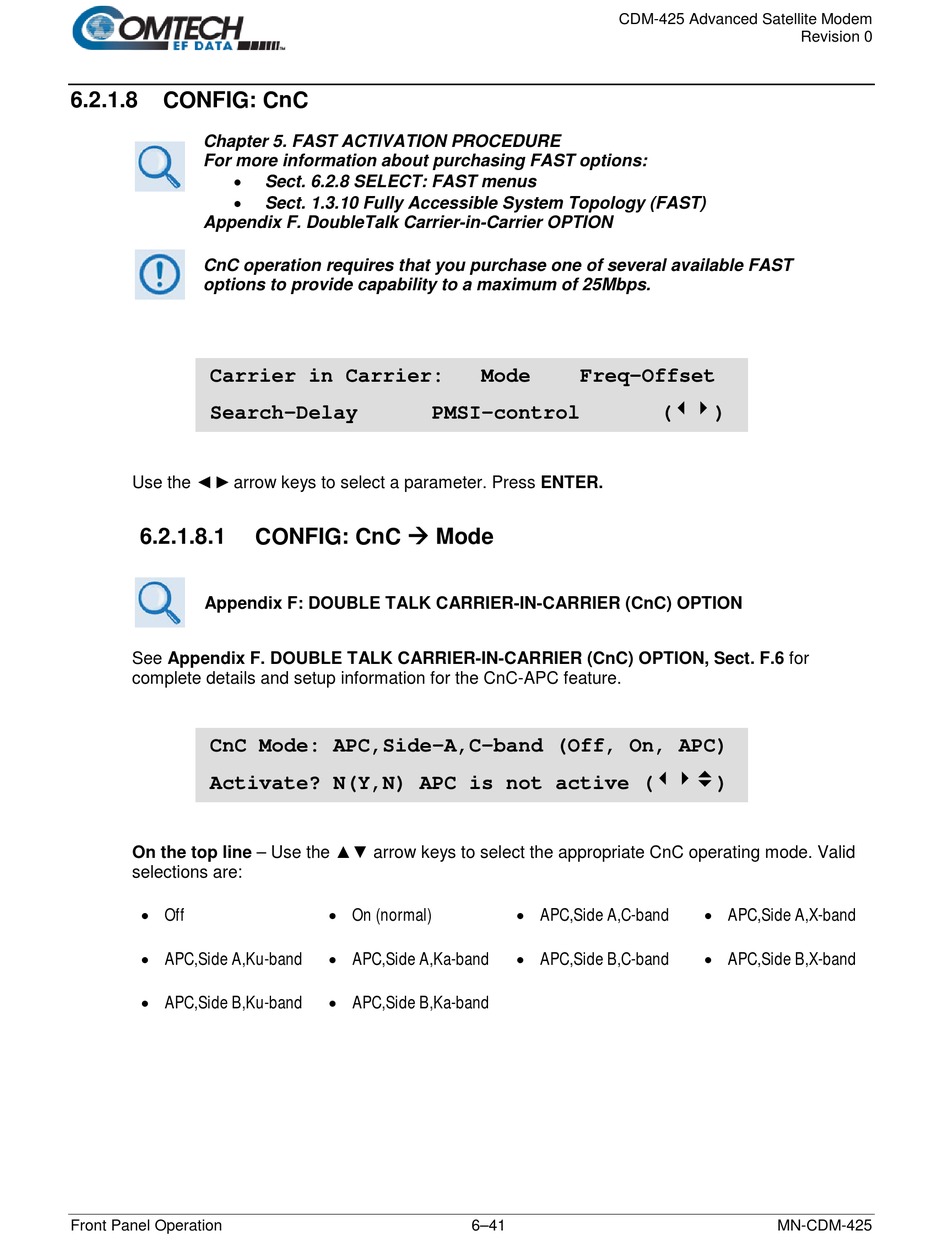

CONFIG: CnC

Chapter 5. FAST ACTIVATION PROCEDURE
For more information about purchasing FAST options:
•
•
Appendix F. DoubleTalk Carrier-in-Carrier OPTION
CnC operation requires that you purchase one of several available FAST
options to provide capability to a maximum of 25Mbps.
Carrier in Carrier:
Search-Delay
Use the ◄ ►arrow keys to select a parameter. Press ENTER.
6.2.1.8.1
Appendix F: DOUBLE TALK CARRIER-IN-CARRIER (CnC) OPTION
See Appendix F. DOUBLE TALK CARRIER-IN-CARRIER (CnC) OPTION, Sect. F.6 for
complete details and setup information for the CnC-APC feature.
CnC Mode: APC,Side-A,C-band (Off, On, APC)
Activate? N(Y,N) APC is not active ()
On the top line – Use the ▲▼ arrow keys to select the appropriate CnC operating mode. Valid
selections are:
• Off
• APC,Side A,Ku-band
• APC,Side B,Ku-band
Front Panel Operation
Sect. 6.2.8 SELECT: FAST menus
Sect. 1.3.10 Fully Accessible System Topology (FAST)
PMSI-control
CONFIG: CnC  Mode
• On (normal)
• APC,Side A,Ka-band
• APC,Side B,Ka-band
CDM-425 Advanced Satellite Modem
Mode Freq-Offset
• APC,Side A,C-band
• APC,Side B,C-band
6–41
Revision 0
()
• APC,Side A,X-band
• APC,Side B,X-band
