F.3.2 CDM-625 Front Panel Menus – ODU Menu Hierarchy
Figure F-2 identifies the CDM-625 front panel menu hierarchies allocated to the configuration,
monitor, and control of a Comtech EF Data ODU. More specifically, menu branches that
incorporate ODU operations are shown in bold; menu content that is dedicated to ODU
operations is additionally italicized.

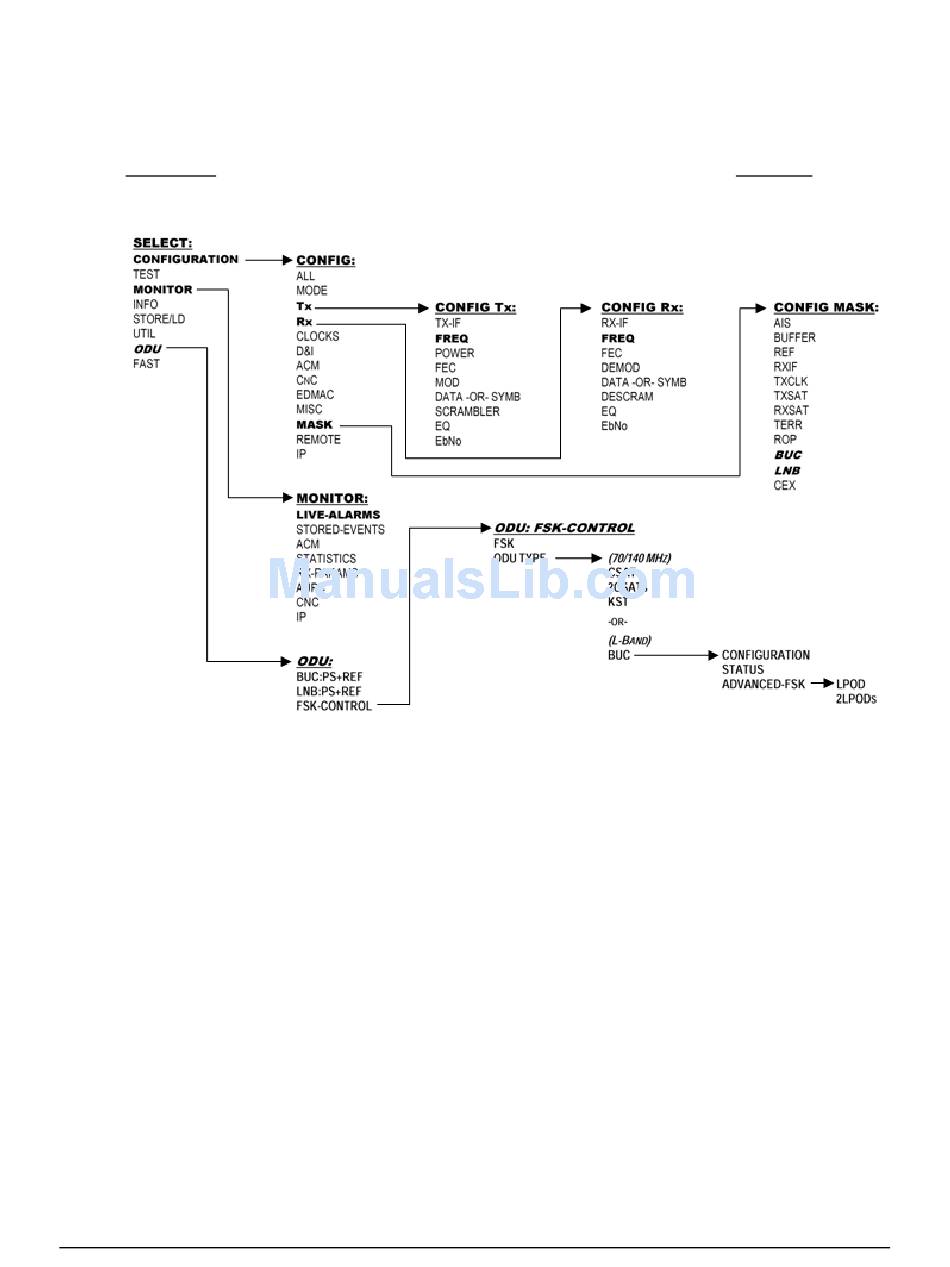

Figure F-2.CDM-625 Front Panel ODU Operation Menu Tree – (FW Ver. 2.3.1)
