10.3.2 CDM-625A Front Panel Menus – ODU Menu Hierarchy
Figure 10-2 identifies the CDM-625A front panel menu hierarchies allocated to the configuration,
monitor, and control of a Comtech EF Data ODU. More specifically, menu branches that
incorporate ODU operations are shown in bold; menu content that is dedicated to ODU
operations is additionally italicized.

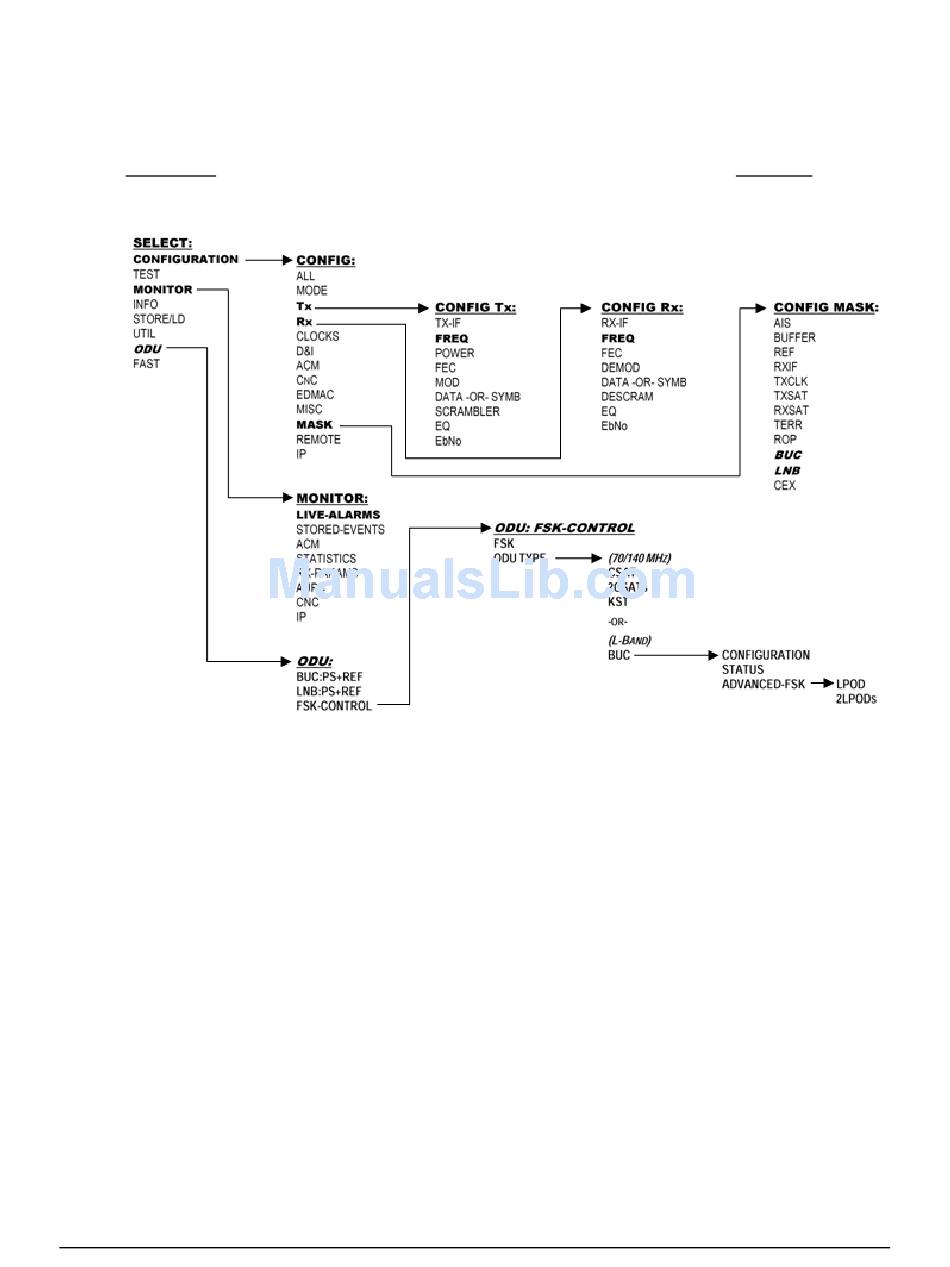

Figure 10-2.CDM-625A Front Panel ODU Operation Menu Tree – (FW Ver. 1.1.1)
