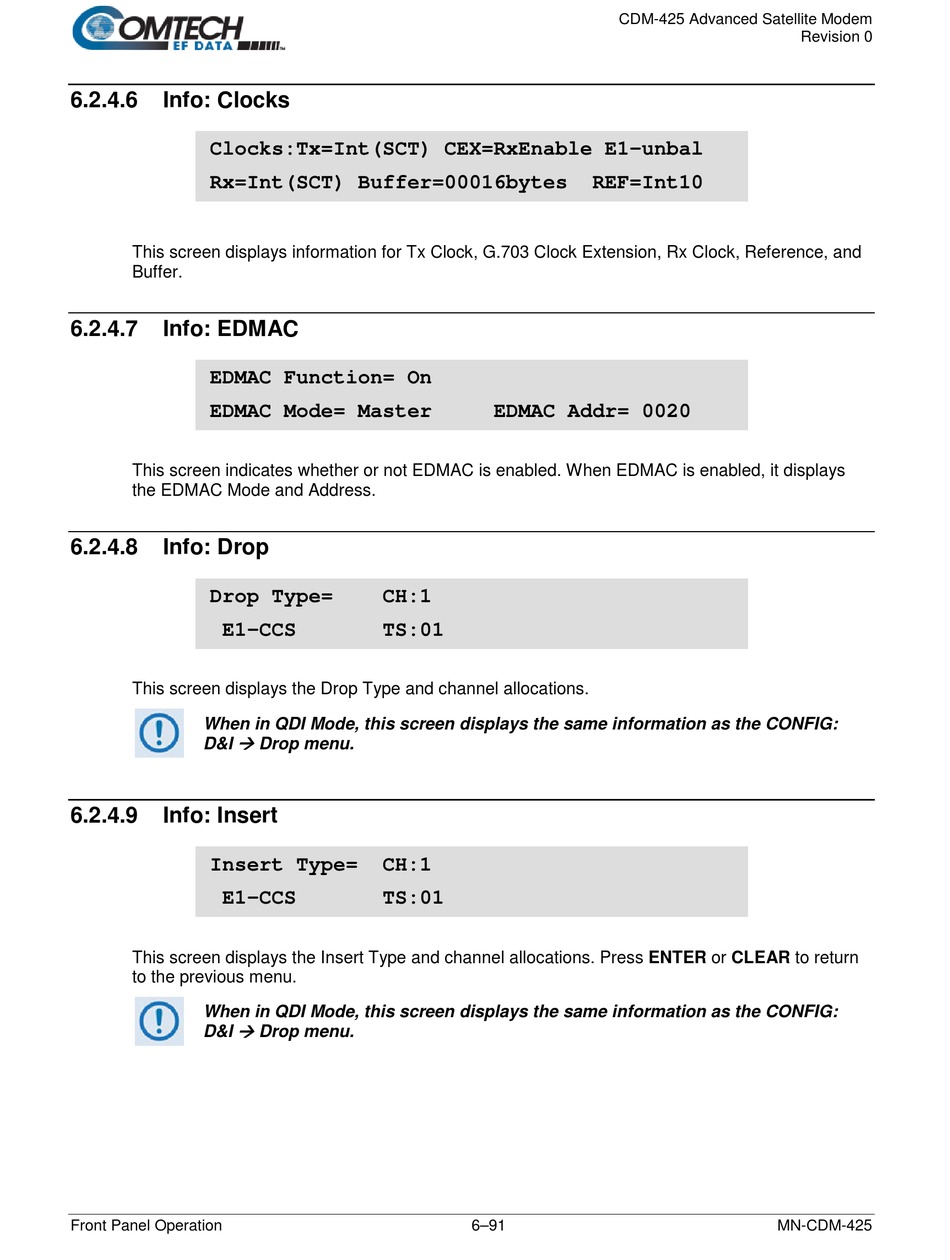

6.2.4.6

Info: Clocks

Clocks:Tx=Int(SCT) CEX=RxEnable E1-unbal
Rx=Int(SCT) Buffer=00016bytes
This screen displays information for Tx Clock, G.703 Clock Extension, Rx Clock, Reference, and
Buffer.
6.2.4.7

Info: EDMAC

EDMAC Function= On
EDMAC Mode= Master
This screen indicates whether or not EDMAC is enabled. When EDMAC is enabled, it displays
the EDMAC Mode and Address.
6.2.4.8

Info: Drop

Drop Type=
E1-CCS
This screen displays the Drop Type and channel allocations.
When in QDI Mode, this screen displays the same information as the CONFIG:

D&I
6.2.4.9

Info: Insert

Insert Type=
E1-CCS
This screen displays the Insert Type and channel allocations. Press ENTER or CLEAR to return
to the previous menu.
When in QDI Mode, this screen displays the same information as the CONFIG:

D&I
Front Panel Operation
CH:1
TS:01
Drop menu.
CH:1
TS:01
Drop menu.
CDM-425 Advanced Satellite Modem
REF=Int10
EDMAC Addr= 0020
6–91
Revision 0
MN-CDM-425
