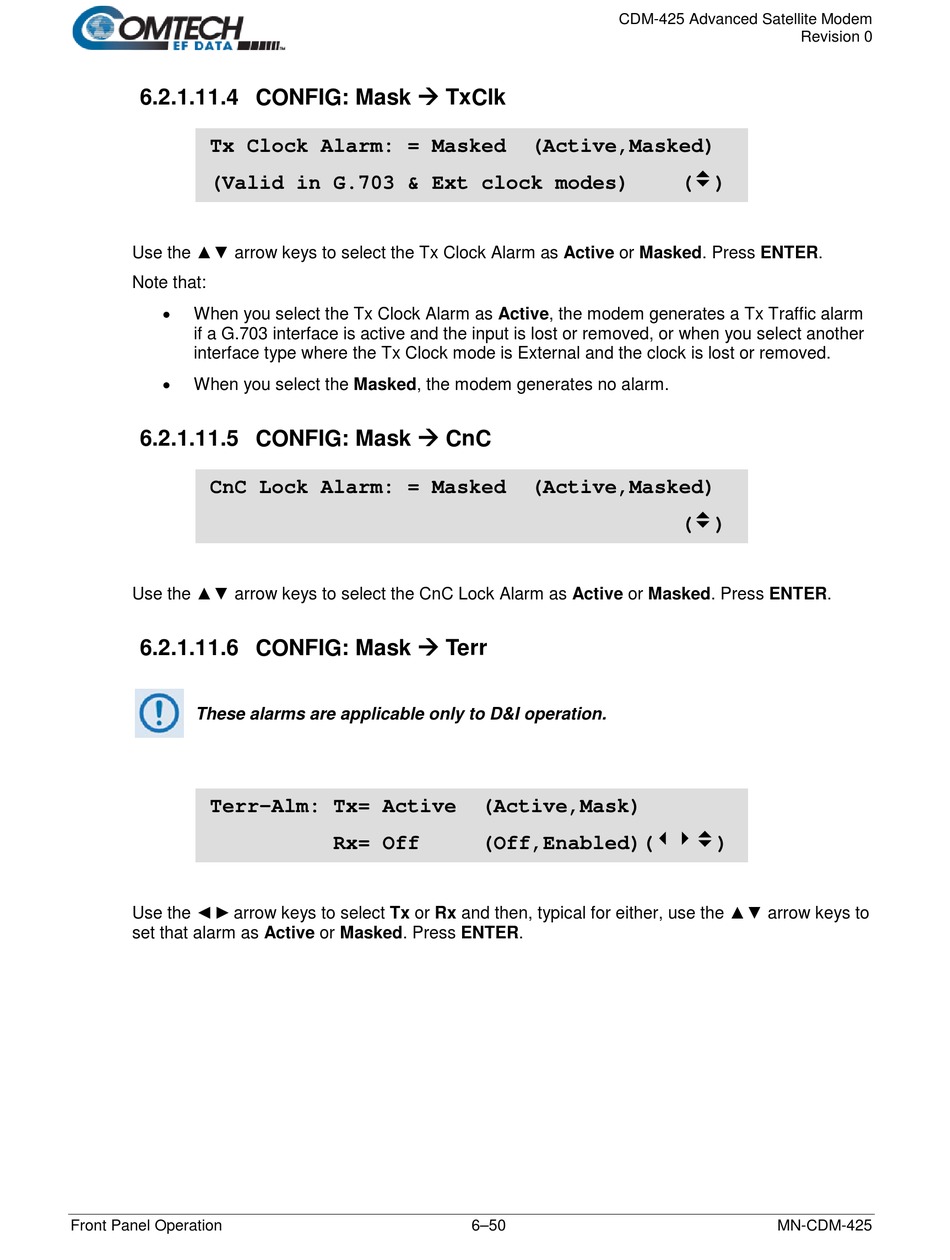

6.2.1.11.4 CONFIG: Mask  TxClk
Tx Clock Alarm: = Masked
(Valid in G.703 & Ext clock modes)
Use the ▲▼ arrow keys to select the Tx Clock Alarm as Active or Masked. Press ENTER.
Note that:
•
When you select the Tx Clock Alarm as Active, the modem generates a Tx Traffic alarm
if a G.703 interface is active and the input is lost or removed, or when you select another
interface type where the Tx Clock mode is External and the clock is lost or removed.
•
When you select the Masked, the modem generates no alarm.
6.2.1.11.5 CONFIG: Mask  CnC
CnC Lock Alarm: = Masked
Use the ▲▼ arrow keys to select the CnC Lock Alarm as Active or Masked. Press ENTER.
6.2.1.11.6 CONFIG: Mask  Terr
These alarms are applicable only to D&I operation.
Terr-Alm: Tx= Active
Use the ◄ ►arrow keys to select Tx or Rx and then, typical for either, use the ▲▼ arrow keys to
set that alarm as Active or Masked. Press ENTER.
