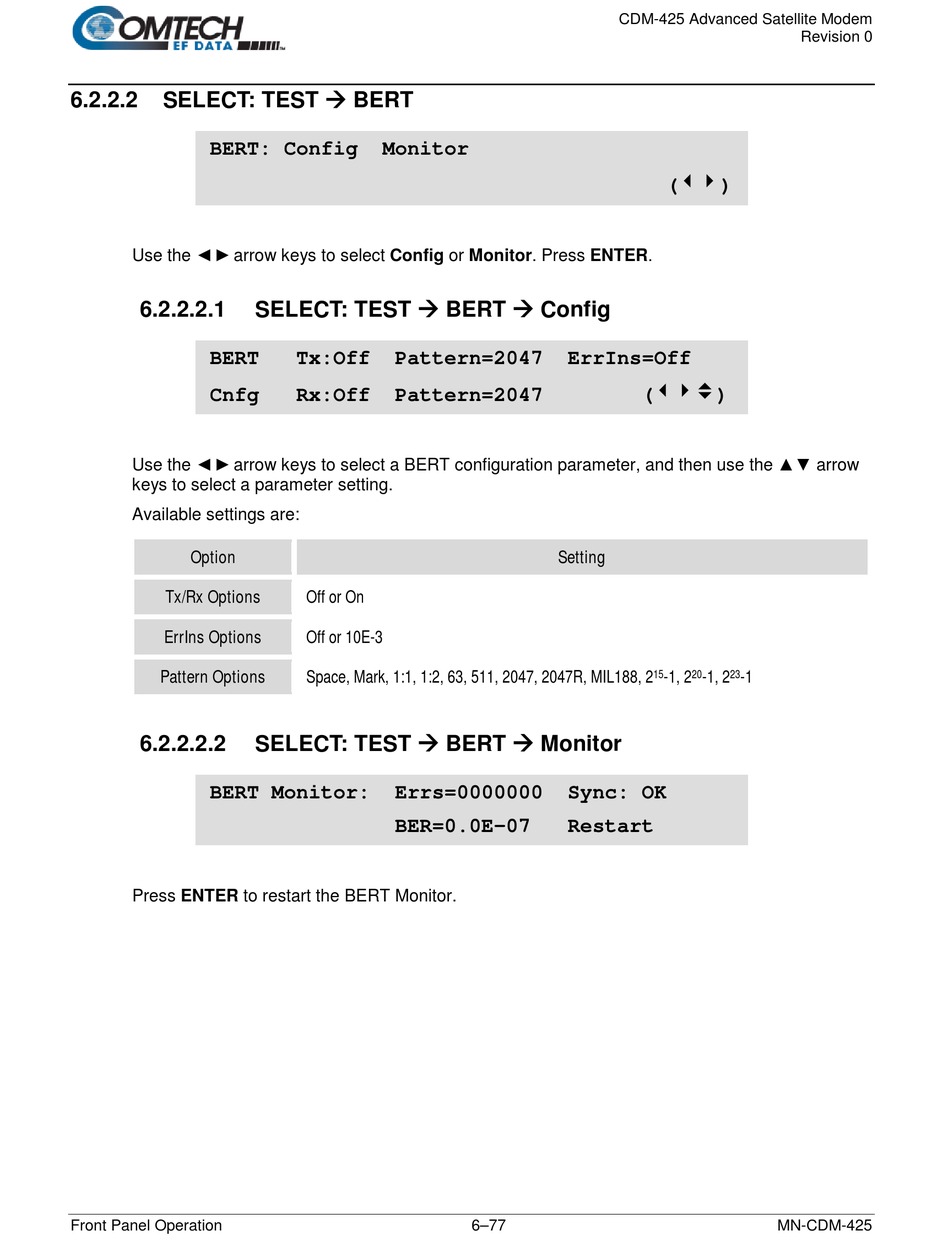

SELECT: TEST  BERT
6.2.2.2
BERT: Config
Use the ◄ ►arrow keys to select Config or Monitor. Press ENTER.
6.2.2.2.1
BERT
Cnfg
Use the ◄ ►arrow keys to select a BERT configuration parameter, and then use the ▲▼ arrow
keys to select a parameter setting.
Available settings are:
Option
Tx/Rx Options
ErrIns Options
Pattern Options
6.2.2.2.2
BERT Monitor:
Press ENTER to restart the BERT Monitor.
Front Panel Operation
Monitor
SELECT: TEST  BERT  Config
Tx:Off Pattern=2047
Rx:Off Pattern=2047
Off or On
Off or 10E-3
Space, Mark, 1:1, 1:2, 63, 511, 2047, 2047R, MIL188, 2
SELECT: TEST  BERT  Monitor
Errs=0000000
BER=0.0E-07
CDM-425 Advanced Satellite Modem
ErrIns=Off
()
Setting
Sync: OK
Restart
6–77
Revision 0
()
-1, 2 -1, 2 -1
15 20 23
MN-CDM-425
