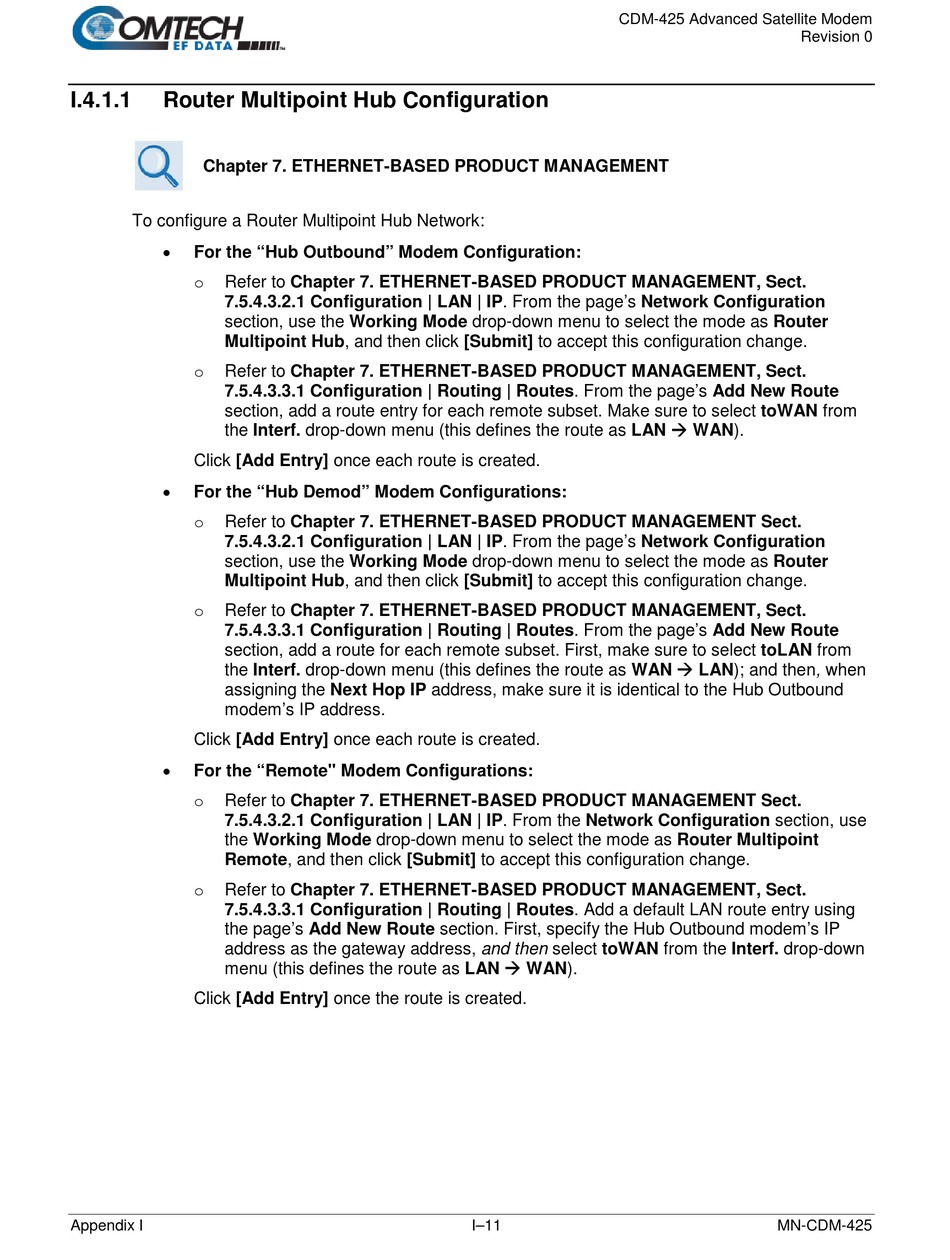

I.4.1.1

Router Multipoint Hub Configuration

Chapter 7. ETHERNET-BASED PRODUCT MANAGEMENT
To configure a Router Multipoint Hub Network:
•
For the "Hub Outbound" Modem Configuration:
Refer to Chapter 7. ETHERNET-BASED PRODUCT MANAGEMENT, Sect.
o
7.5.4.3.2.1 Configuration | LAN | IP. From the page's Network Configuration
section, use the Working Mode drop-down menu to select the mode as Router
Multipoint Hub, and then click [Submit] to accept this configuration change.
Refer to Chapter 7. ETHERNET-BASED PRODUCT MANAGEMENT, Sect.
o
7.5.4.3.3.1 Configuration | Routing | Routes. From the page's Add New Route
section, add a route entry for each remote subset. Make sure to select toWAN from
the Interf. drop-down menu (this defines the route as LAN  WAN).
Click [Add Entry] once each route is created.
•
For the "Hub Demod" Modem Configurations:
Refer to Chapter 7. ETHERNET-BASED PRODUCT MANAGEMENT Sect.
o
7.5.4.3.2.1 Configuration | LAN | IP. From the page's Network Configuration
section, use the Working Mode drop-down menu to select the mode as Router
Multipoint Hub, and then click [Submit] to accept this configuration change.
Refer to Chapter 7. ETHERNET-BASED PRODUCT MANAGEMENT, Sect.
o
7.5.4.3.3.1 Configuration | Routing | Routes. From the page's Add New Route
section, add a route for each remote subset. First, make sure to select toLAN from
the Interf. drop-down menu (this defines the route as WAN  LAN); and then, when
assigning the Next Hop IP address, make sure it is identical to the Hub Outbound
modem's IP address.
Click [Add Entry] once each route is created.
•
For the "Remote" Modem Configurations:
Refer to Chapter 7. ETHERNET-BASED PRODUCT MANAGEMENT Sect.
o
7.5.4.3.2.1 Configuration | LAN | IP. From the Network Configuration section, use
the Working Mode drop-down menu to select the mode as Router Multipoint
Remote, and then click [Submit] to accept this configuration change.
Refer to Chapter 7. ETHERNET-BASED PRODUCT MANAGEMENT, Sect.
o
7.5.4.3.3.1 Configuration | Routing | Routes. Add a default LAN route entry using
the page's Add New Route section. First, specify the Hub Outbound modem's IP
address as the gateway address, and then select toWAN from the Interf. drop-down
menu (this defines the route as LAN  WAN).
Click [Add Entry] once the route is created.
