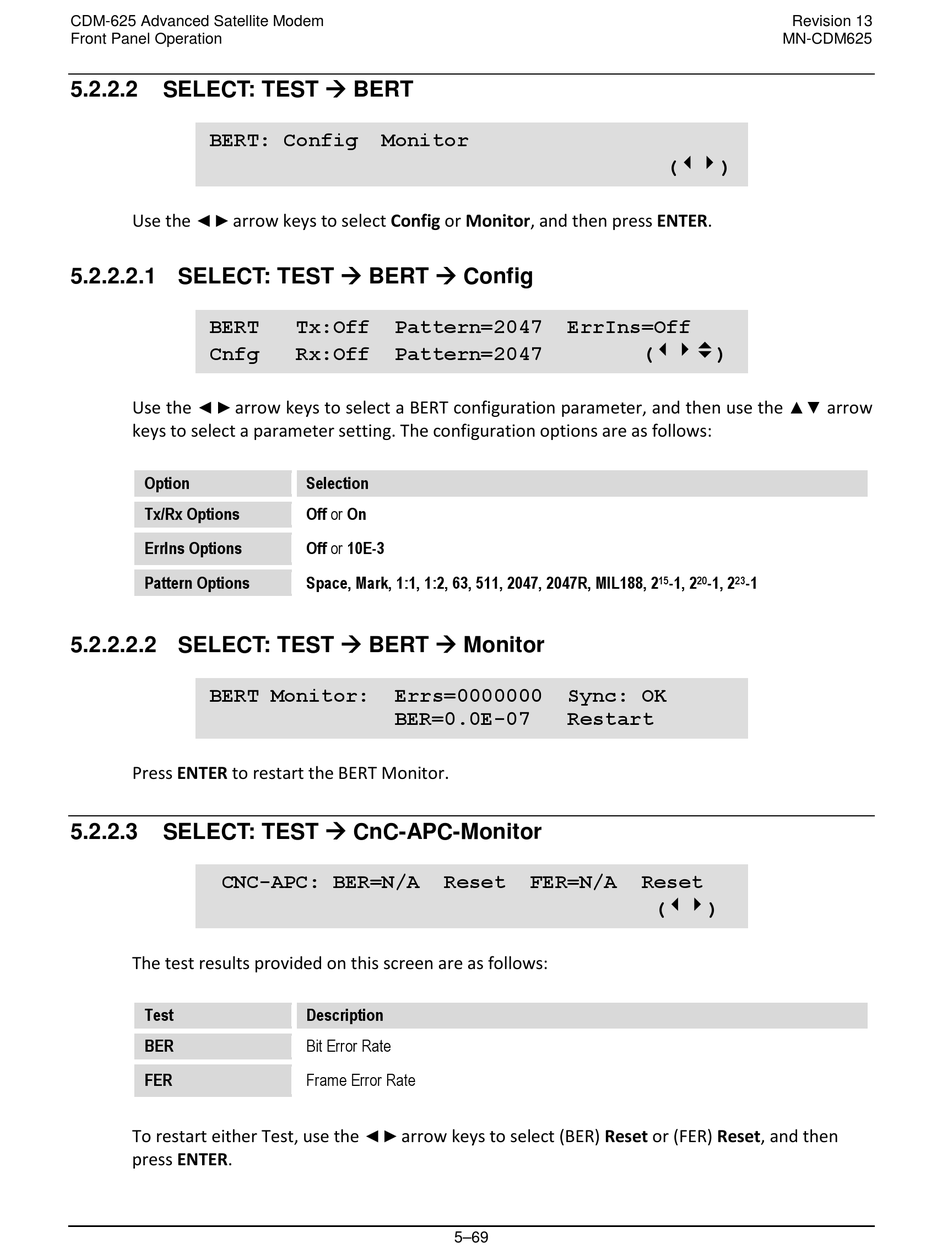

SELECT: TEST  BERT
5.2.2.2
BERT: Config
Use the ◄ ► arrow keys to select Config or Monitor, and then press ENTER.
5.2.2.2.1 SELECT: TEST  BERT  Config
BERT
Cnfg
Use the ◄ ► arrow keys to select a BERT configuration parameter, and then use the
keys to select a parameter setting. The configuration options are as follows:
Option
Tx/Rx Options
ErrIns Options
Pattern Options
5.2.2.2.2 SELECT: TEST  BERT  Monitor
BERT Monitor:
Press ENTER to restart the BERT Monitor.
SELECT: TEST  CnC-APC-Monitor
5.2.2.3
CNC-APC: BER=N/A
The test results provided on this screen are as follows:
Test
BER
FER
To restart either Test, use the
press ENTER.
Monitor
Tx:Off Pattern=2047
Rx:Off Pattern=2047
Selection
Off or On
Off or 10E-3
Space, Mark, 1:1, 1:2, 63, 511, 2047, 2047R, MIL188, 2
Errs=0000000
BER=0.0E-07
Reset
Description
Bit Error Rate
Frame Error Rate
◄ ►
arrow keys to select (BER) Reset or (FER) Reset, and then
5–69
()
ErrIns=Off
()
-1, 2 -1, 2
15 20
Sync: OK
Restart
FER=N/A Reset
()
Revision 13
MN-CDM625
arrow
▲▼
-1
23
