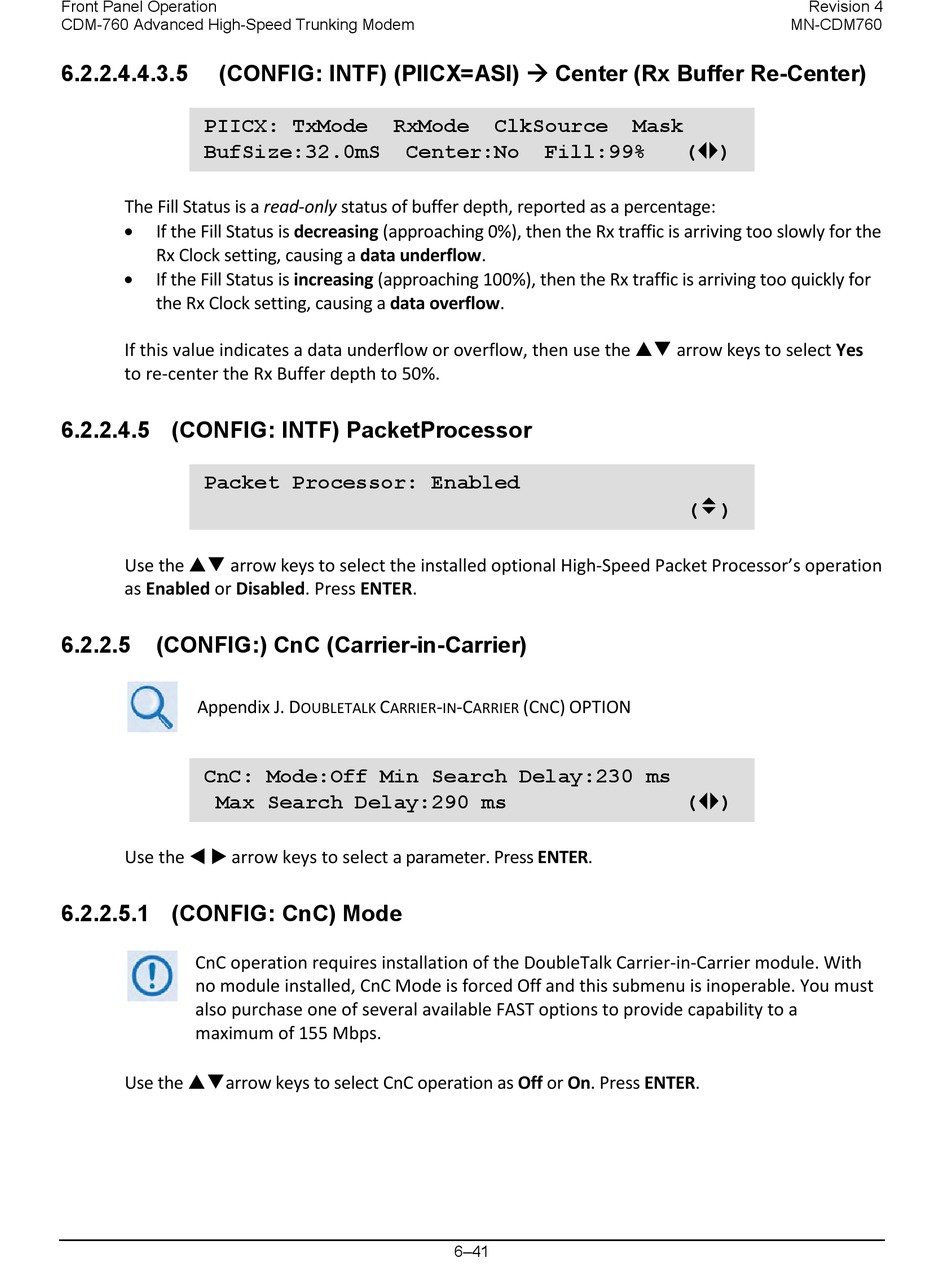

6.2.2.4.4.3.5 (CONFIG: INTF) (PIICX=ASI)  Center (Rx Buffer Re-Center)
PIICX: TxMode
BufSize:32.0mS
The Fill Status is a read-only status of buffer depth, reported as a percentage:
•
If the Fill Status is decreasing (approaching 0%), then the Rx traffic is arriving too slowly for the
Rx Clock setting, causing a data underflow.
• If the Fill Status is increasing (approaching 100%), then the Rx traffic is arriving too quickly for
the Rx Clock setting, causing a data overflow.
If this value indicates a data underflow or overflow, then use the  arrow keys to select Yes
to re-center the Rx Buffer depth to 50%.

6.2.2.4.5 (CONFIG: INTF) PacketProcessor

Packet Processor: Enabled
Use the  arrow keys to select the installed optional High-Speed Packet Processor's operation
as Enabled or Disabled. Press ENTER.
6.2.2.5

(CONFIG:) CnC (Carrier-in-Carrier)

Appendix J. D
CnC: Mode:Off Min Search Delay:230 ms
Max Search Delay:290 ms
Use the   arrow keys to select a parameter. Press ENTER.

6.2.2.5.1 (CONFIG: CnC) Mode

CnC operation requires installation of the DoubleTalk Carrier-in-Carrier module. With
no module installed, CnC Mode is forced Off and this submenu is inoperable. You must
also purchase one of several available FAST options to provide capability to a
maximum of 155 Mbps.
Use the arrow keys to select CnC operation as Off or On. Press ENTER.
