9.3.4.1 QoS Configuration > QoS Rules Configuration (Max/Pri Mode)
Open the nested QoS Rules Configuration page from the QoS Configuration page.

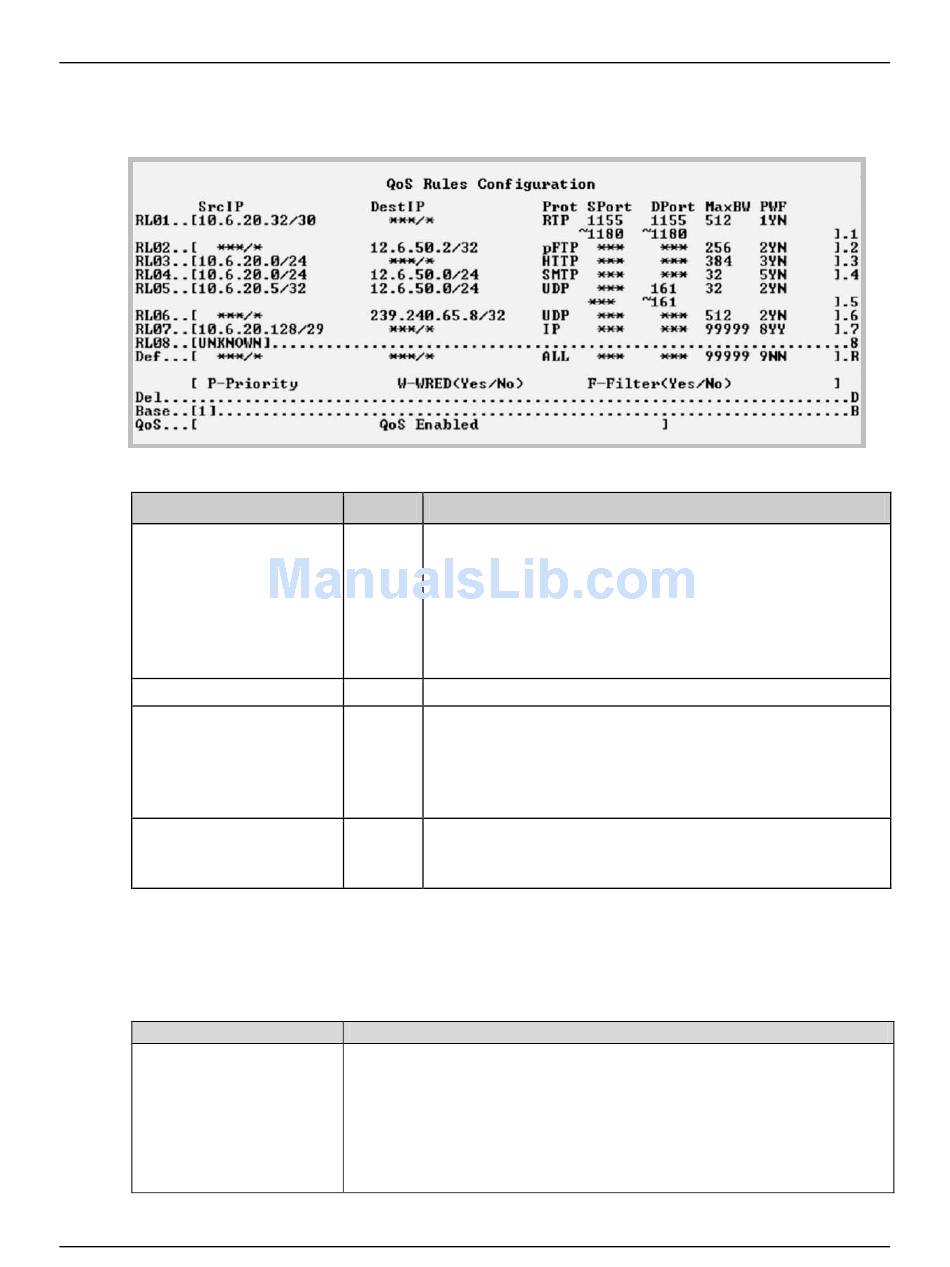

Figure 9-15. QoS Rules Configuration (Max/Priority Mode)
Selection
RL01 through RL32
(The current eight of up to 32
definable QoS Rules).
Delete
Base [#]
QoS [ ]
Assign or Edit a QoS Rule
When you select a rule to create or edit (Hot Key 1 through 8), the CLI prompts you to assign
parameters in this order:
Screen Prompt
Specify Protocol for the rule
Hot Key Description
1 – 8
Assign Max/Pri QoS to up to 32 different types of definable flows.
Define flows by any combination of Protocol, Priority,
Source/Destination IP Addresses (specific or range), and/or Layer 3
Source and Destination Ports.
FOR RULE ASSIGNMENT OR EDIT PROCESS, SEE "Assign or Edit
a QoS Rule"
D Set the QoS Rule to delete, from 1 to 32.
B
Select Base to display or edit a different group of eight of up to 32 QoS
Rules.
For example, if you want to edit QoS Rule 9: Type 'B', and then type
'9' to select the Base value of 9. The QoS Rules Configuration page
will refresh to display RL09 through RL16.
[RO] This line displays state of the QoS option as Unavailable, Enabled, or
Disabled. If available, QoS is Enabled or Disabled from the
Administrator Features page.
Action
Specify your desired rule protocol:
1 for UDP (User Datagram Protocol)
2 for TCP (Transmission Control Protocol)
3 for ICMP (Internet Control Message Protocol)
4 for RTP (Real Time Protocol (includes all RTP – VOCE, VDEO, and RTPS))
5 for VOCE (Voice RTP)
6 for VDEO (Video RTP)
9–26
