Replacing The Color Developing Unit - Canon iR C6800 Series Service Manual

Chapter 12

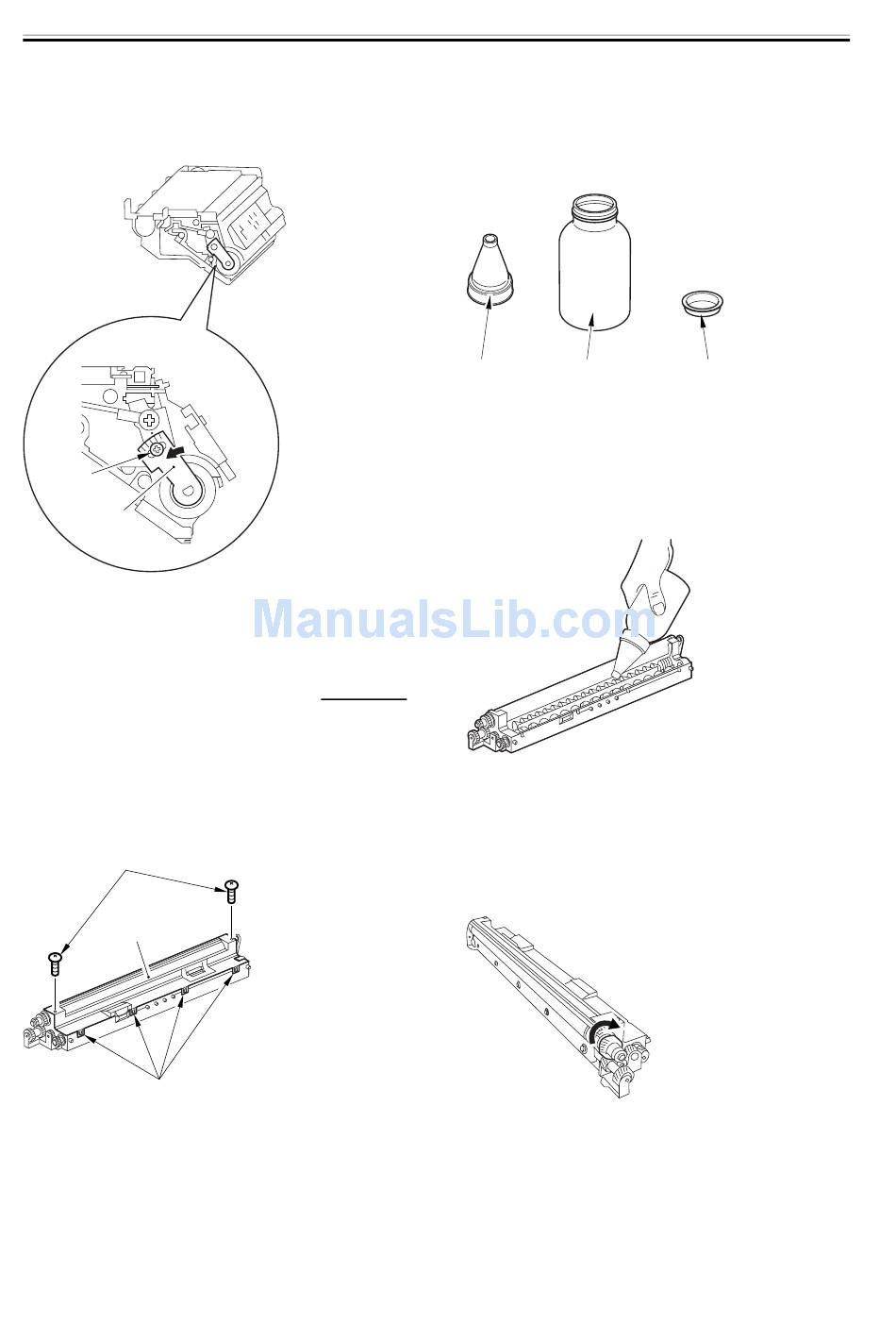

3) Turn the polarity
counterclockwise by a single index (5 deg); then,
tighten the screw [2] to fix it in place.
[2]
[1]
F-12-29
12.5.3 Replacing the Color
Developing Unit
1) Open the packing box, and take out the new color
developing unit.
2) Remove the screw [1], and free the 4 hooks [2];
then, remove the developing assembly lid [3].
[1]
[3]
[2]
F-12-30
12-24
positioning plate [1]
0004-0872
3) Even out the starter by shaking the container about
10 times.
4) Open the lid [2] of the starter bottle [1]; then,
remove the middle lid [3], and close the lid.
[2] [1]
F-12-31
5) Supply half the starter so that it is even in the
lengthwise direction around the stirring screw inside
the color developing unit.
F-12-32
6) Turn the developing gear 5 to 6 times by hand in the
direction indicated in the figure so that the starter will
be even inside the unit.
F-12-33
[3]
