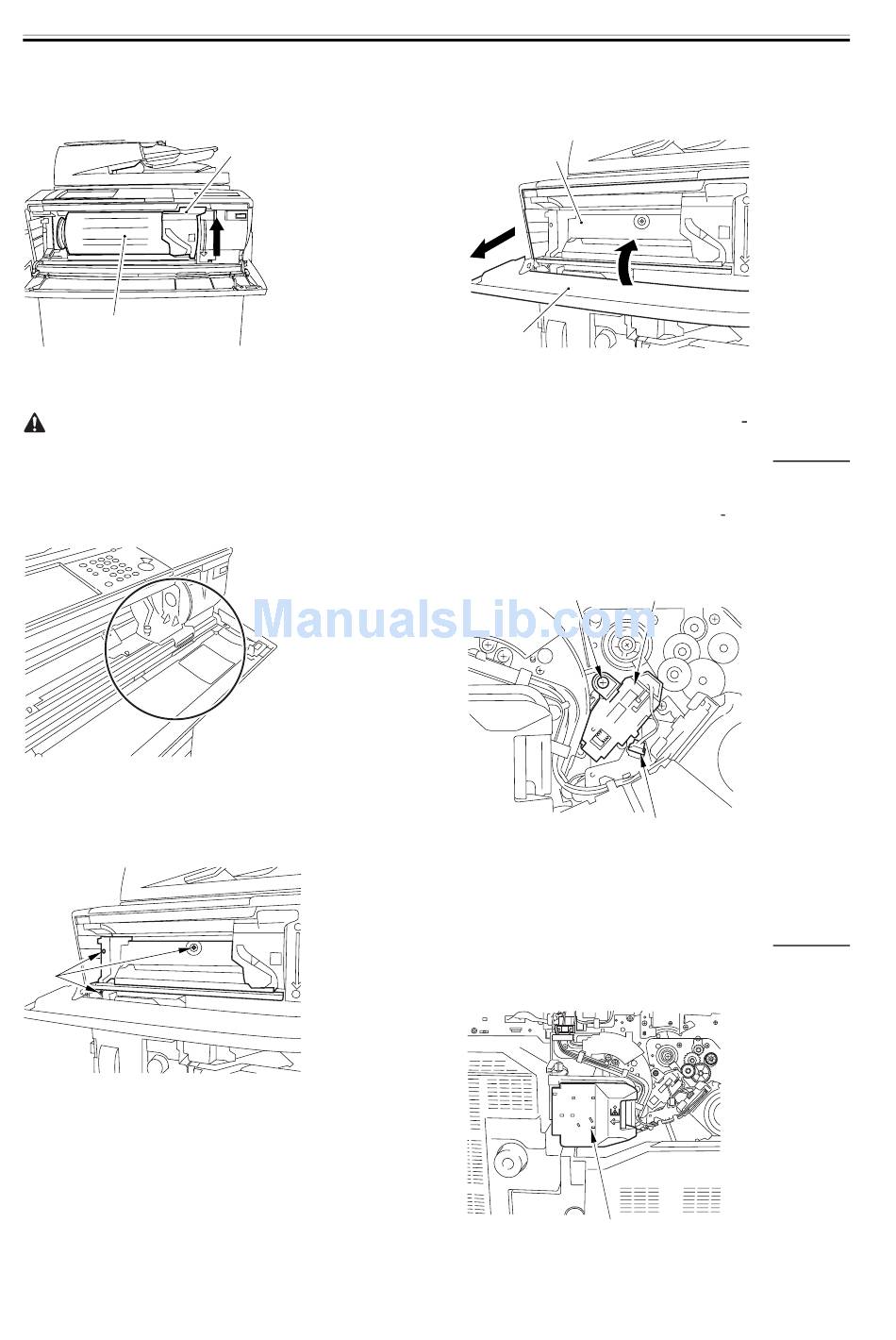

2) Shift down the lever [1], and detach the black toner
bottle [2].
[2]
F-7-1105
Once you have released the hopper assembly, toner
can spill over the toner bottle supply mouth of the
hopper assembly cover. Be sure to wipe off any such
toner.
F-7-1106
3) Remove the 3 screws [1].
[1]
F-7-1107
7-282
[1]
4) Close the black toner supply cover [1]; then, fully
open the hopper assembly [2].
[2]
[1]
F-7-1108
7.11.41.4 Removing the Pre
Transfer Charging Assembly
1) Remove the screw [1], and disconnect the
connector [1]; then, detach the pre transfer charging
assembly [3] from the machine.
[1]
F-7-1109
7.11.41.5 Removing Transfer
Cleaner Drive Assembly
1) Open the color toner supply mouth cover [1].
[1]
F-7-1110
0005-7262
[3]
[2]
0003-2646
