Chapter 7

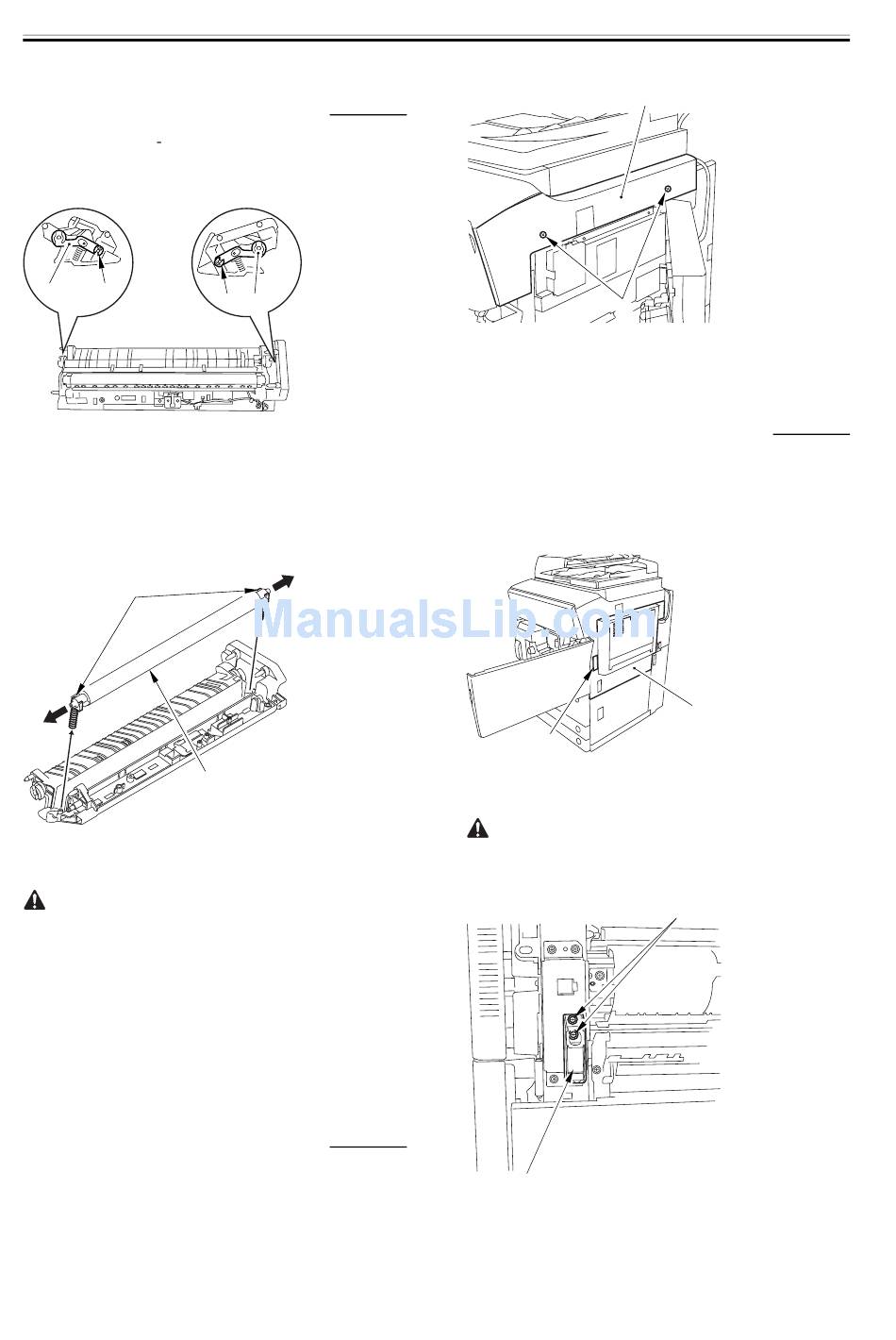

7.11.33.3 Removing the
Secondary Transfer Roller
1) Remove the 2 E rings [1], and detach the left roller
arm [2] and the right roller arm [3].
[2] [1]
F-7-904
2) Pull out the 2 secondary roller bushing [1] in the
direction of the arrow; then, detach the secondary
transfer roller [2].
[1]
F-7-905
If you are replacing the secondary transfer roller,
be sure to hold the roller shaft. Also, take care not to
touch the surface of the roller and not to damage the
roller.

7.11.34 ITB Cleaning Blade

7.11.34.1 Removing the Right
Cover (upper)
1) Remove the 2 screws [1], and detach the right cover
(upper) [2].
7-242
0002-6346
[1] [2]
[2]
0003-8267
[1]
F-7-906
7.11.34.2 Releasing the Front
Cover
1) Open the front cover.
2) While pulling on the grip [1], fully open the manual
feed cover [2] to the front.
[1]
F-7-907
If a side paper deck exists, remove the 2 screws [1]
and the latch plate (front)
[2]
F-7-908
[2]
0003-2597
[2]
[1]
