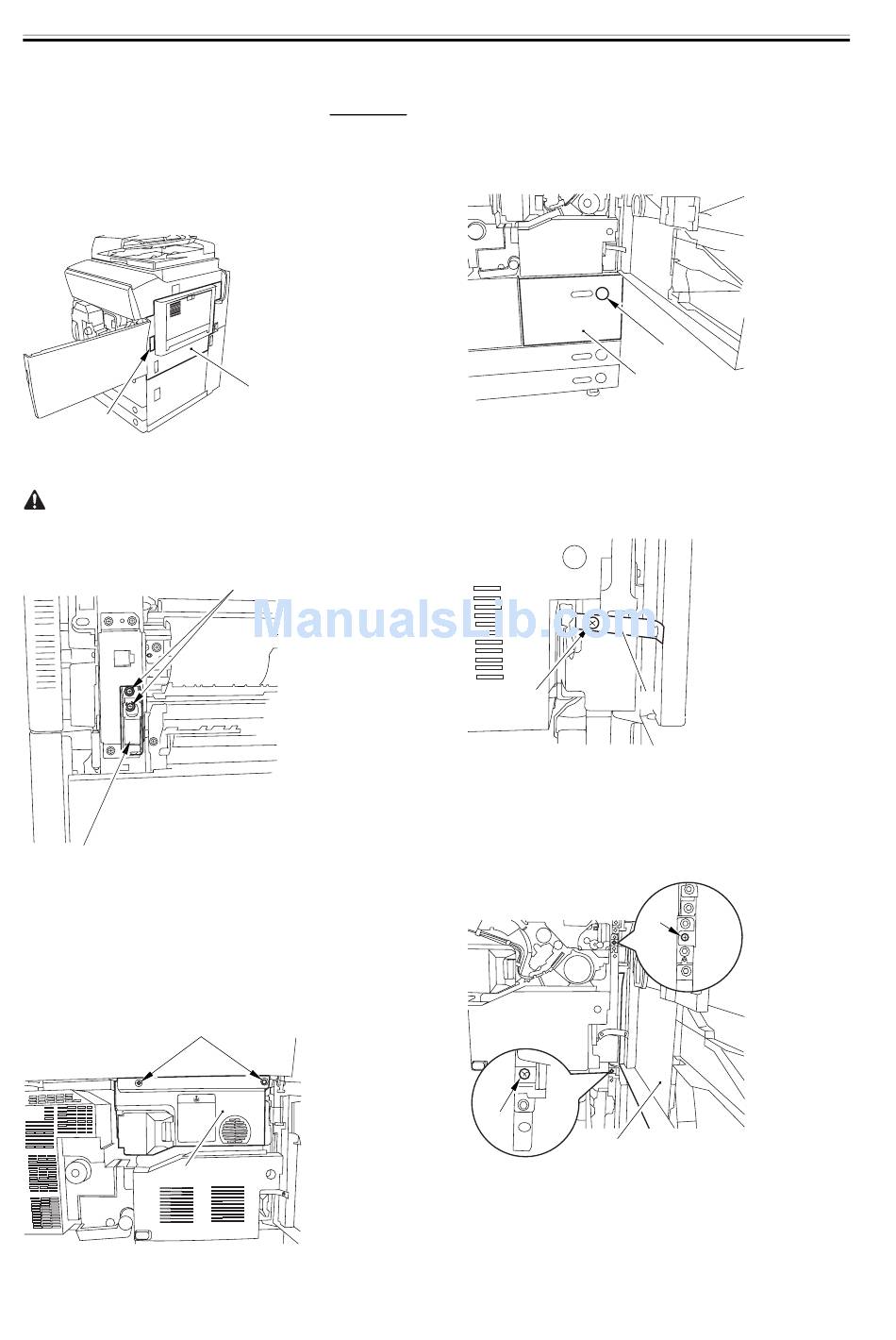

7.11.38.4 Releasing the Front
Cover
1) Open the front cover.
2) While pulling on the grip [1], fully open the manual
feed cover [2] to the front.
[1]
F-7-1002
If a side paper deck exists, remove the 2 screws [1]
and the latch plate (front)
[2]
F-7-1003
3) Slide out the fixing/feeding assembly
4) Remove the 2 screws [1], and detach the process
unit cover [2].
[2]
F-7-1004
7-262
0004-5169
[2]
[1]
[1]
5) Push in the fixing/feeding assembly, and set the
lever in place.
6) Push the release button [1] of the right deck, and
slide out the right deck [2].
F-7-1005
7) Remove the screw [1] from lower right, and detach
the front cover strap [2].
[1]
F-7-1006
8) Remove the 2 screws [1] (binding) of the front
cover hinge, and fully open the front cover [2].
[1]
[2]
F-7-1007
9) Close the right deck.
[1]
[2]
[2]
[1]
