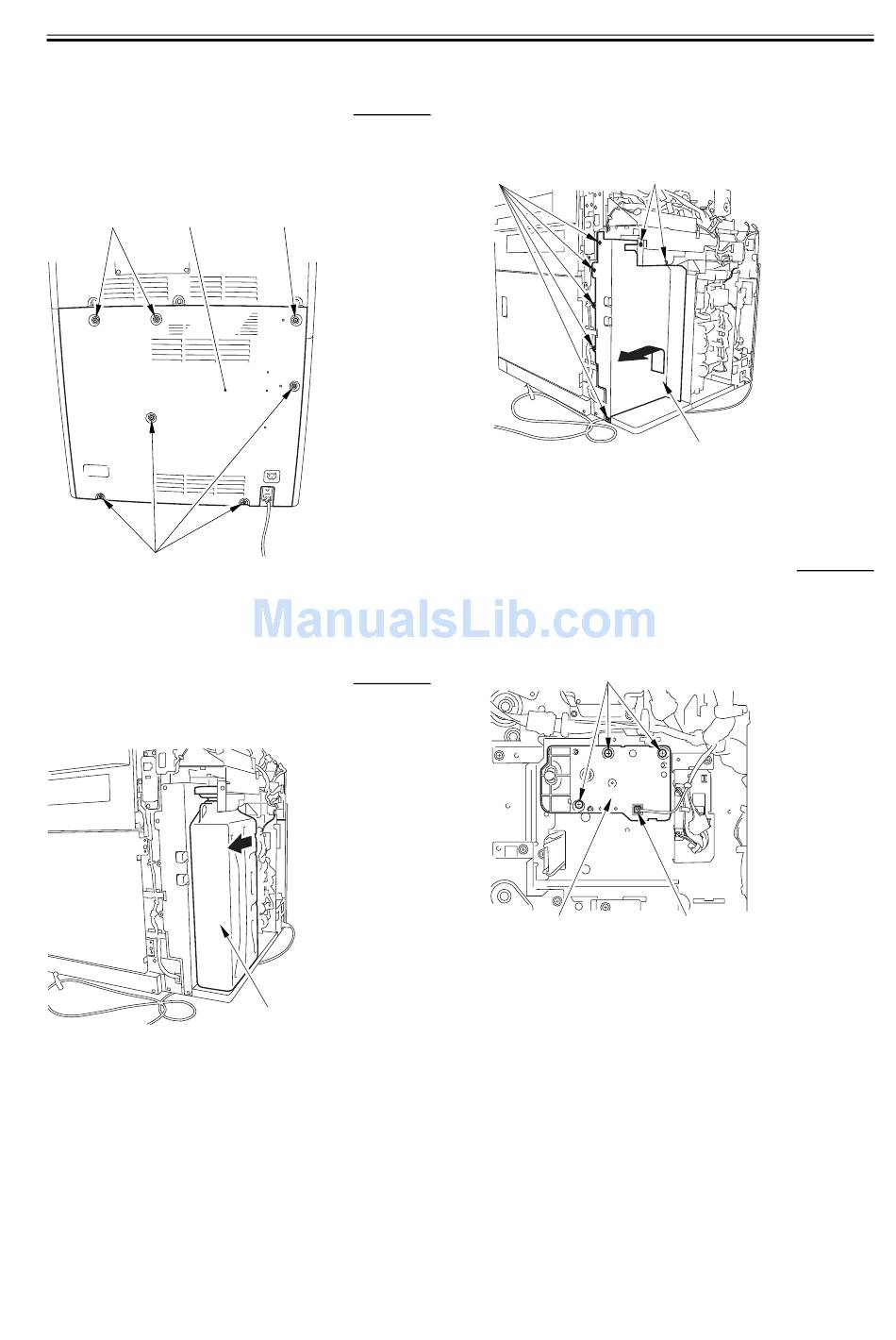

8.11.5.2 Removing the Rear
Cover (lower)
1) Remove the 7 screws [1], and detach the rear cover
(lower) [2].
1] 2]
1]
F-8-75
8.11.5.3 Removing the Waste
Toner Bottle Base
1) Remove the waste toner bottle [1].
F-8-76
0003-6656
1]
0003-6657
[1]
2) Remove the 7 screws [1], and lift the waste toner
bottle base [2] to detach it in the direction of the
arrow.
[1] [1]
F-8-77
8.11.5.4 Removing the Right
Deck Lifter Motor
1) Disconnect the connector [1], and remove the 3
screws [2]; then, detach the right deck lifter motor [3].
[2]
[3]
F-8-78
Chapter 8
[2]
0003-6659
[1]
8-57
