Canon iR C6800 Series Service Manual page 908

Chapter 13
NG OK
A
A
Y M C Bk Full Y M C Bk Full
Ref. Ref.

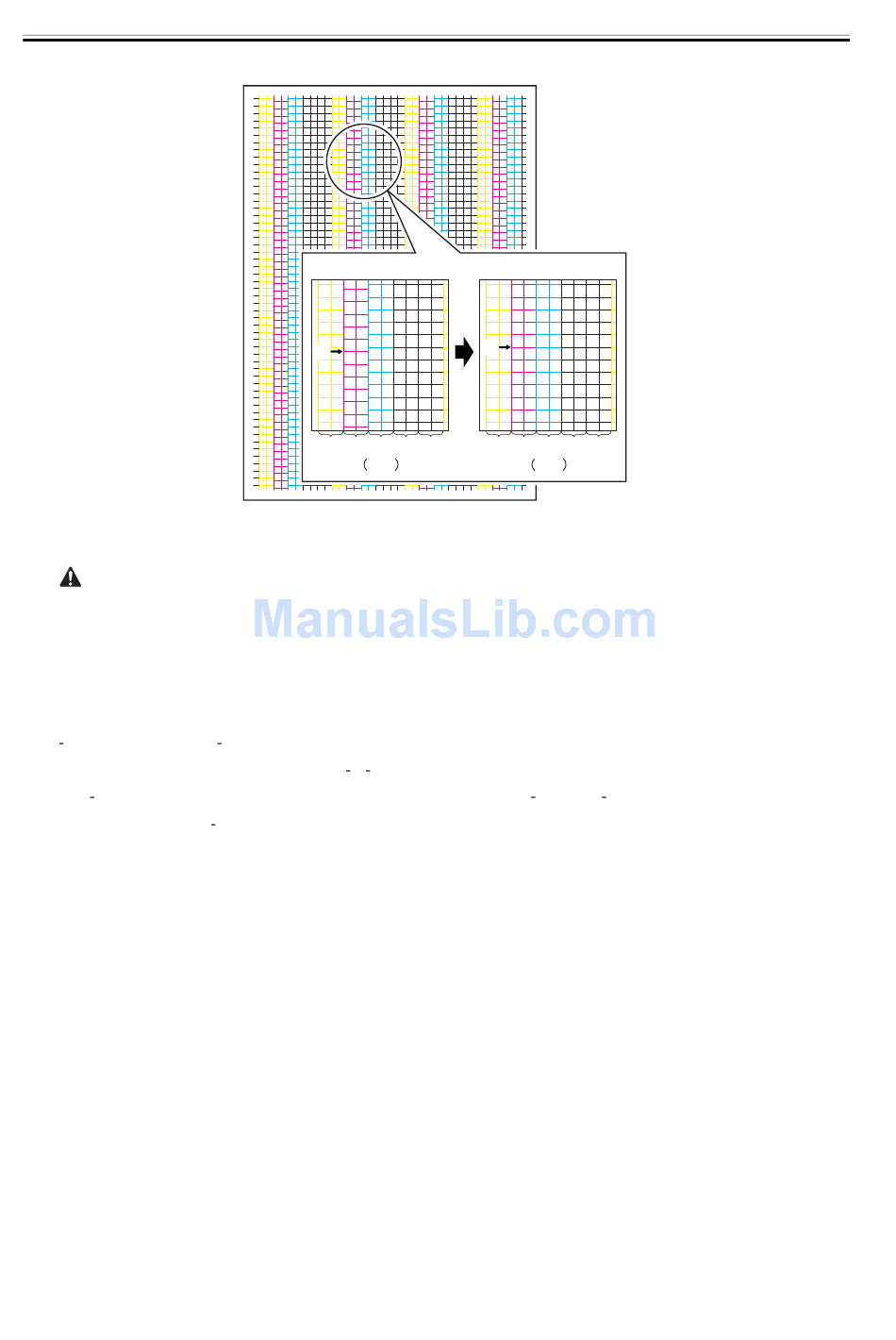

F-13-22
An increase of '1' made to the setting will move the write start position of the selected color by a single pixel
(about 0.04 mm).
If you have initialized the DC controller PCB or if you have replaced the DC controller PCB, be sure to enter
the values indicated on the service label
range of adjustment: 10 to +10 (unit: pixel; at time of shipment: 0)
2. Changing the Primary Transfer Color to Color Current Level
Set ' 2' to the following in service mode: COPIER>ADJUST>HV TR>1TR STS1.
range of adjustment: 5 to 0 (unit: 2 yA; at time of shipment: 0)
13-36
