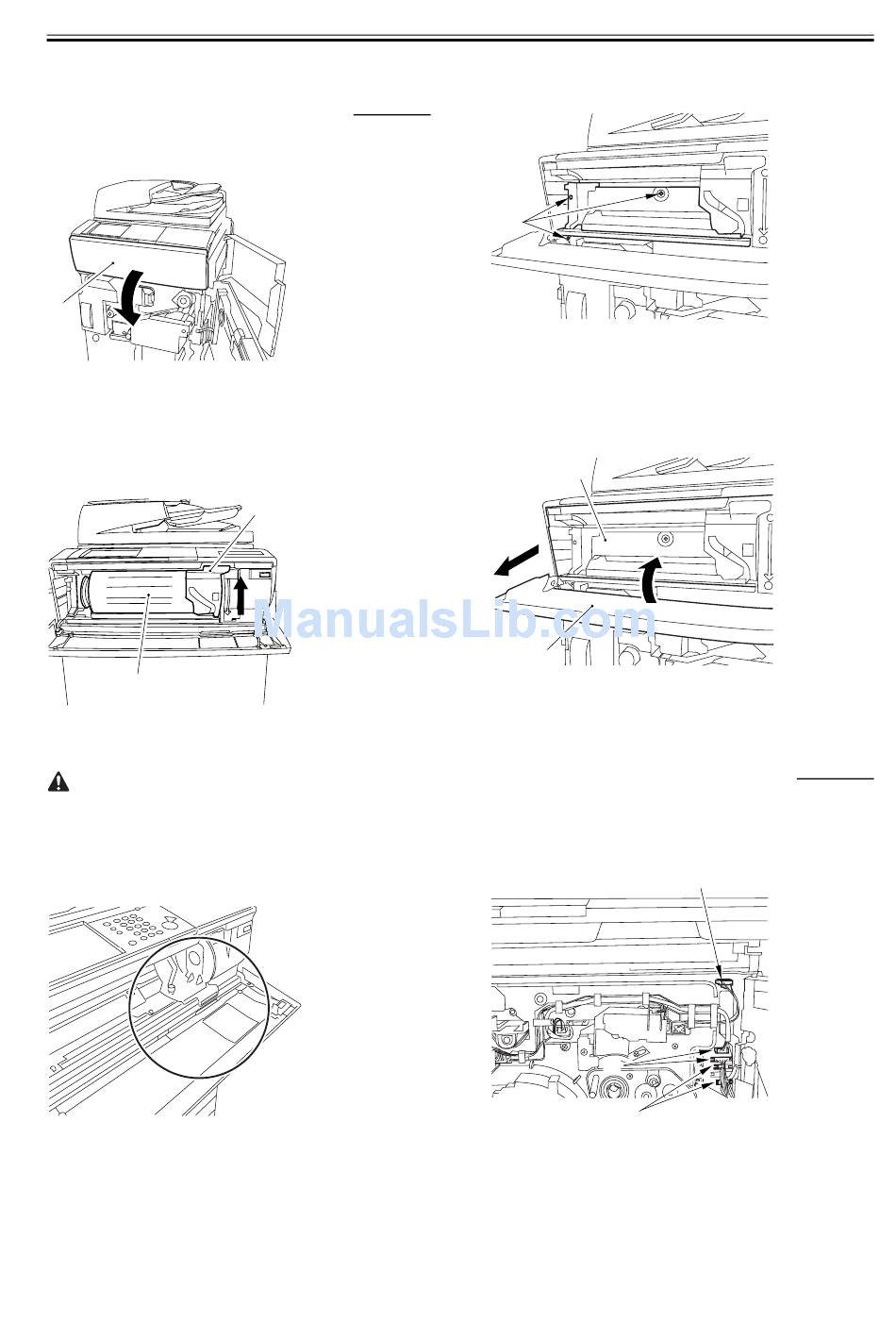

7.11.18.3 Releasing the Hopper
Assembly
1) Open the black toner supply cover [1].
[1]
F-7-566
2) Shift down the lever [1], and detach the black toner
bottle [2].
[2]
F-7-567
Once you have released the hopper assembly, toner
can spill over the toner bottle supply mouth of the
hopper assembly cover. Be sure to wipe off any such
toner.
F-7-568
0003-2518
[1]
3) Remove the 3 screws [1].
[1]
F-7-569
4) Close the black toner supply cover [1]; then, fully
open the hopper assembly [2].
[2]
[1]
F-7-570
7.11.18.4
Sliding
Process Unit
1) Disconnect the 5 connectors [1] found at the upper
right.
[1]
[1]
F-7-571
Chapter 7
Out the
0003-2519
[1]
7-171
