Canon iR C6800 Series Service Manual page 648

Chapter 8

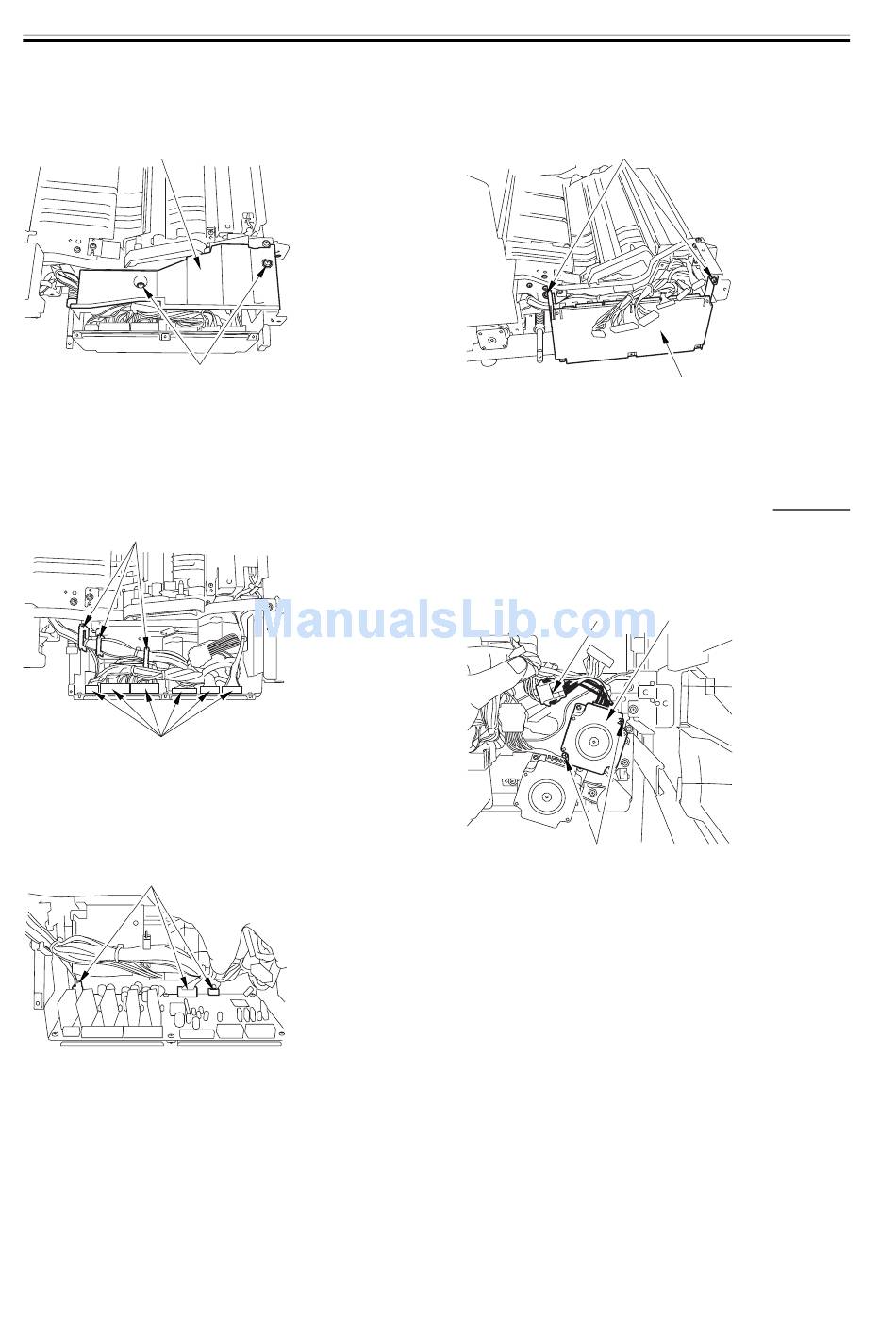

5) Remove the 2 screws [1], and detach the fixing/
feeding upper cover [2].
2]
F-8-179
6) Disconnect the 6 connectors [1], and open the 3
wire saddles [2].
2]
1]
F-8-180
7) Disconnect the 3 connectors [1].
1]
F-8-181
8-80
1]
8) Remove the 2 screws [1], and shift the fixing/
feeding driver PCB [2] toward the front to detach.
1]
F-8-182
8.11.22.2
Removing
Registration Motor
1) Disconnect the connector [1], and remove the 2
screws [2]; then, detach the registration motor [3].
[1]
[2]
F-8-183
2]
the
0003-7032
[3]
