Chapter 7

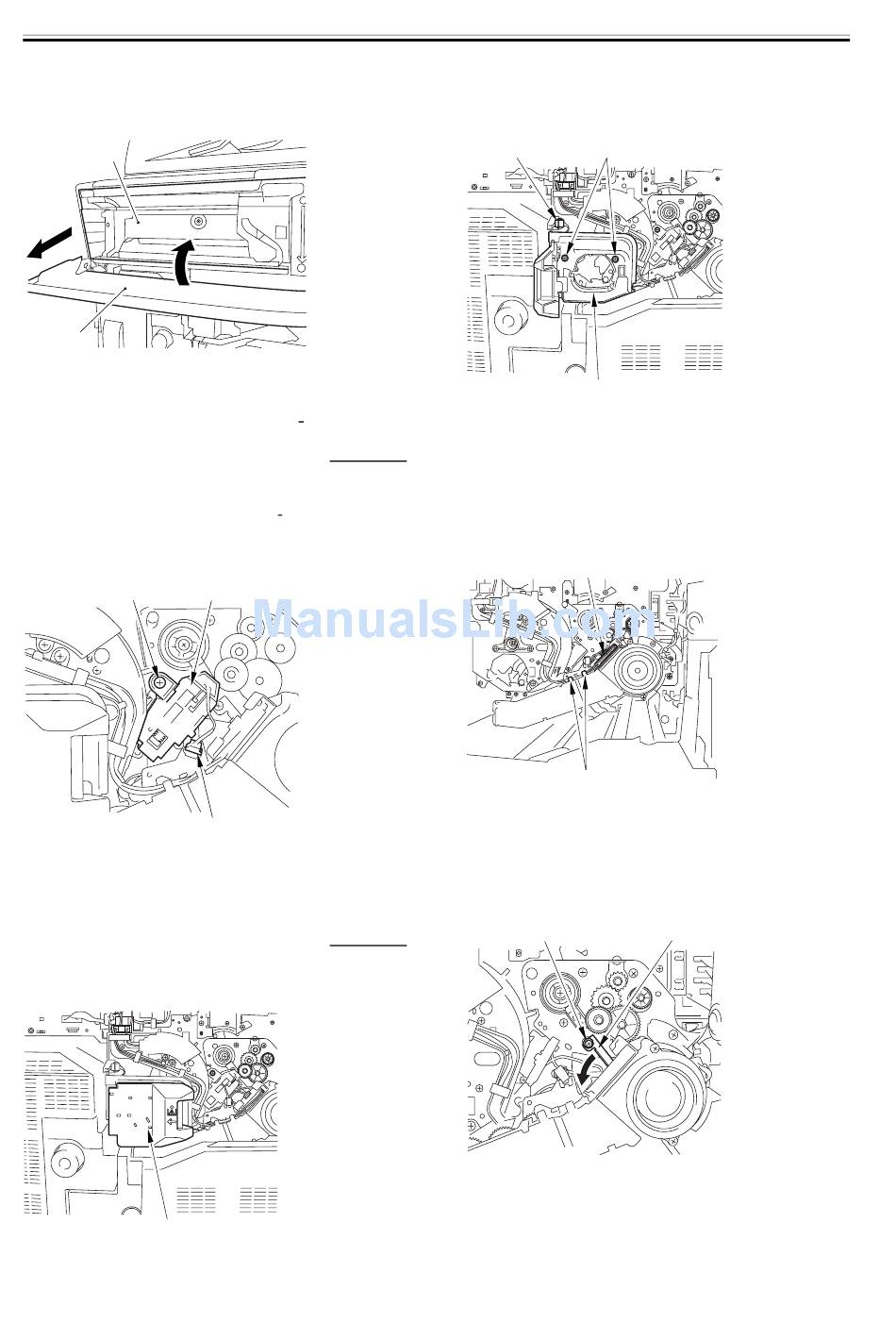

4) Close the black toner supply cover [1]; then, fully
open the hopper assembly [2].
[2]
[1]
F-7-975
7.11.36.4 Removing the Pre
Transfer Charging Assembly
1) Remove the screw [1], and disconnect the
connector [1]; then, detach the pre transfer charging
assembly [3] from the machine.
[1]
F-7-976
7.11.36.5 Removing the Transfer
Cleaner Drive Assembly
1) Open the color toner supply mouth cover [1].
[1]
F-7-977
7-256
0005-7261
[3]
[2]
0003-2605
2) Disconnect the connector [1], and remove the screw
[2]; then, detach the color toner supply cover ]3].
[1] [2]
[3]
F-7-978
3) Slightly slide out the fixing/feeding assembly.
4) Disconcert the connector [1] to free it from the wire
guide[2].
[1]
[2]
F-7-979
5) Remove the screw [1], and shift down the locking
plate [2].
[1]
F-7-980
[2]
