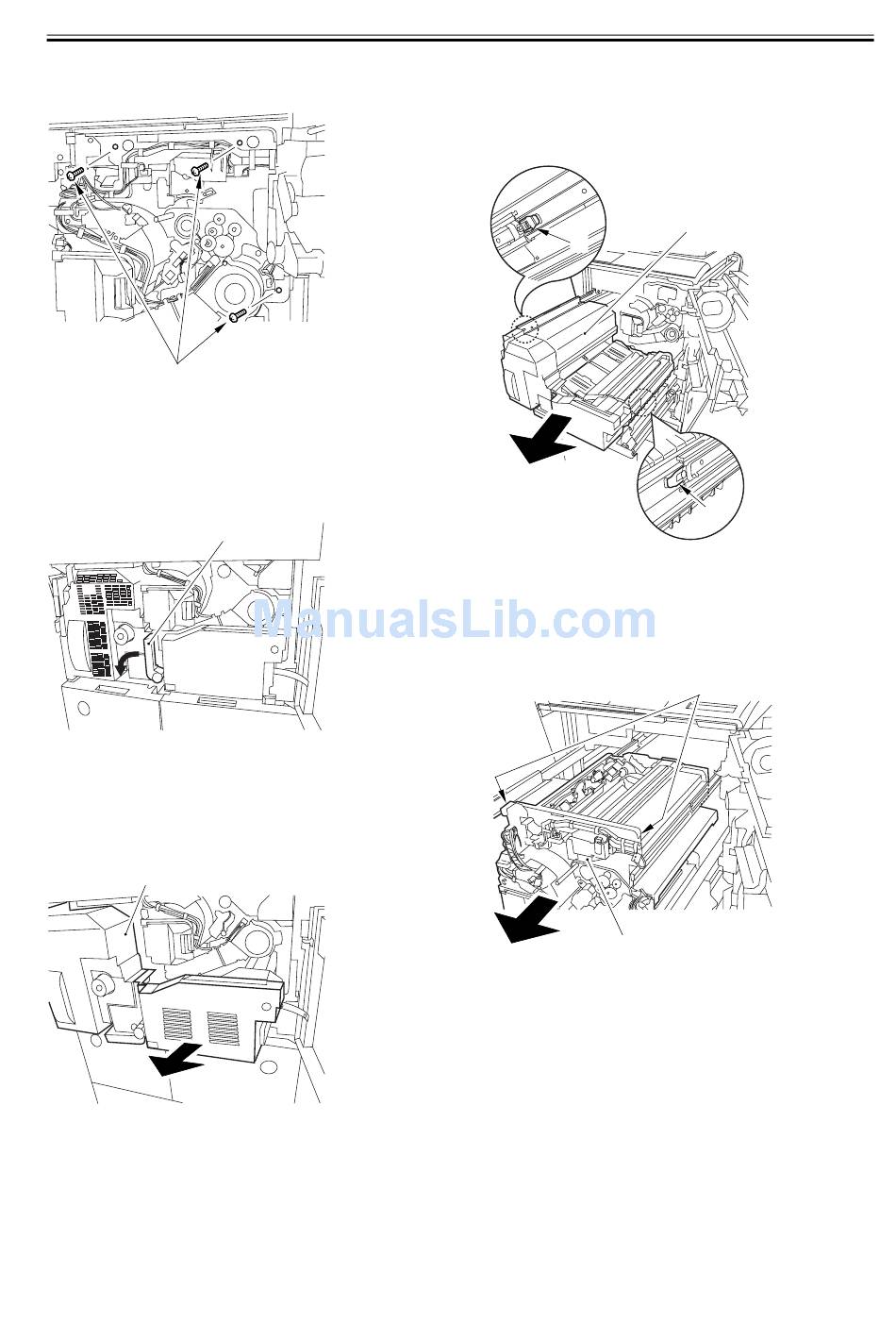

7) Remove the 3 binding screws (M4x8) [1].
[1]
F-7-354
8) Shift down the fixing/feeding assembly releasing
lever [1] in the direction of the arrow.
F-7-355
9) Slide out the fixing/feeding assembly [1] toward
the front.
[1]
F-7-356
[1]
10) While pushing on the 2 hooks [1] found on both
sides of the fixing/feeding assembly, fully slide out
the fixing/feeding assembly [2].
[1]
F-7-357
11) Slightly lift both ends [1] of the process unit, and
fully slide out the process unit [2].
[2]
F-7-358
Chapter 7
[2]
[1]
[1]
