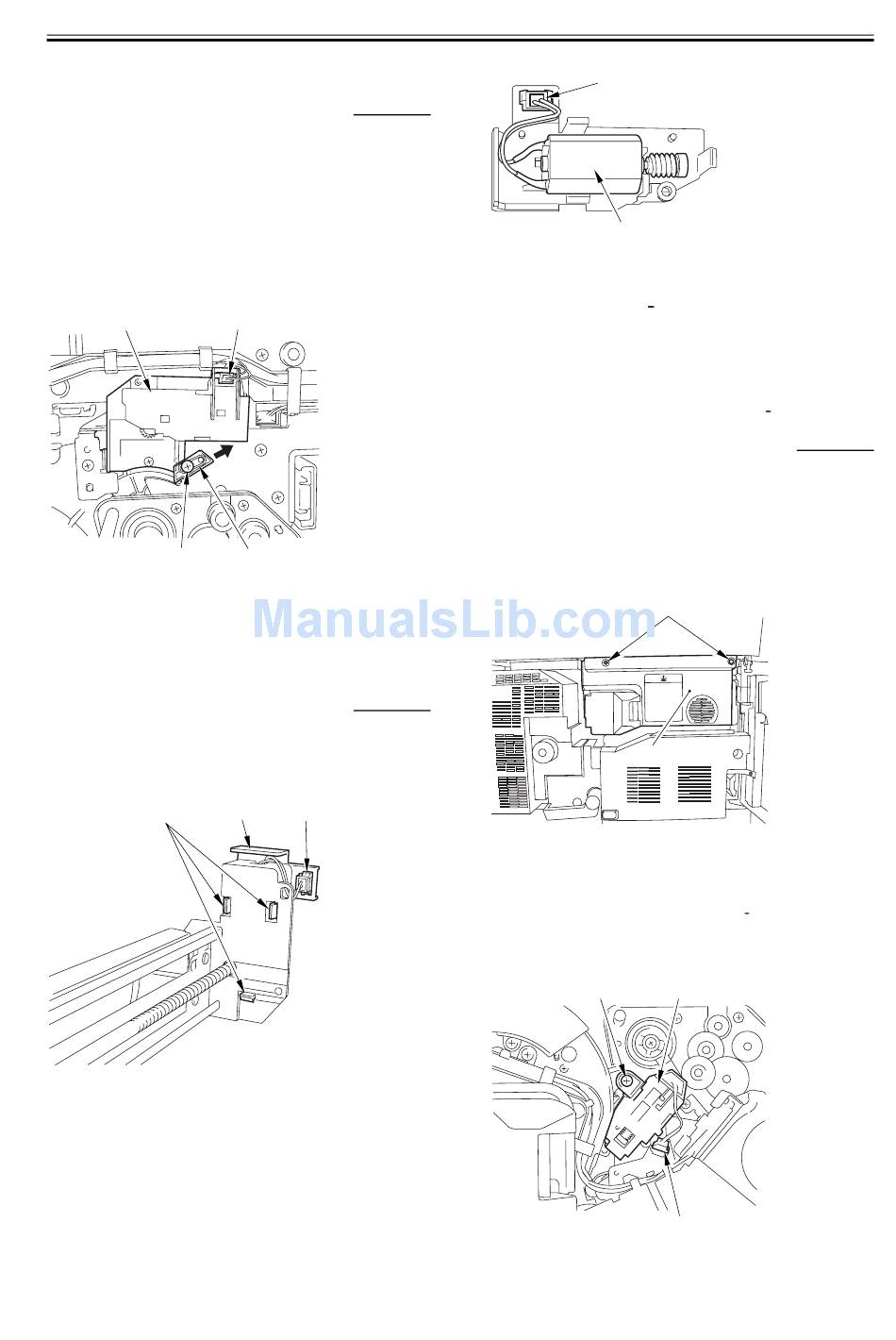

7.11.4.4 Removing the Primary
Charging Assembly
1) Disconnect the connector [1].
2) Loosen the screw [2], and slide the primary
charging assembly stopper [3] in the direction of the
arrow; then, tighten the screw [2].
3) Detach the primary charging assembly [4] from the
machine.
[4]
[2]
F-7-158
7.11.4.5 Removing the Primary
Charging Wire
Motor
1) Free the 3 claws [3], and disconnect the connector
[2]; then, detach the motor cover [3].
[1]
F-7-159
2) Turn over the motor cover, and disconnect the
connector [1]; then, detach the primary charging wire
cleaning motor [2].
0003-2481
[1]
[3]
Cleaning
0002-6222
[3] [2]
[1]
[2]
F-7-160
7.11.5
Pre transfer
Assembly
7.11.5.1 Removing the Pre
Transfer Charging Assembly
1) Open the front cover,
2) Slide out the fixing/feeding assembly.
3) Remove the 2 screws [1], and detach the process
unit cover [2].
[2]
F-7-161
4) Remove the screw [1], and disconnect the
connector [2]; then, detach the pre transfer charging
assembly [3] from the machine.
[1]
F-7-162
Chapter 7
Charging
0002-6224
[1]
[3]
[2]
7-89
