Chapter 12

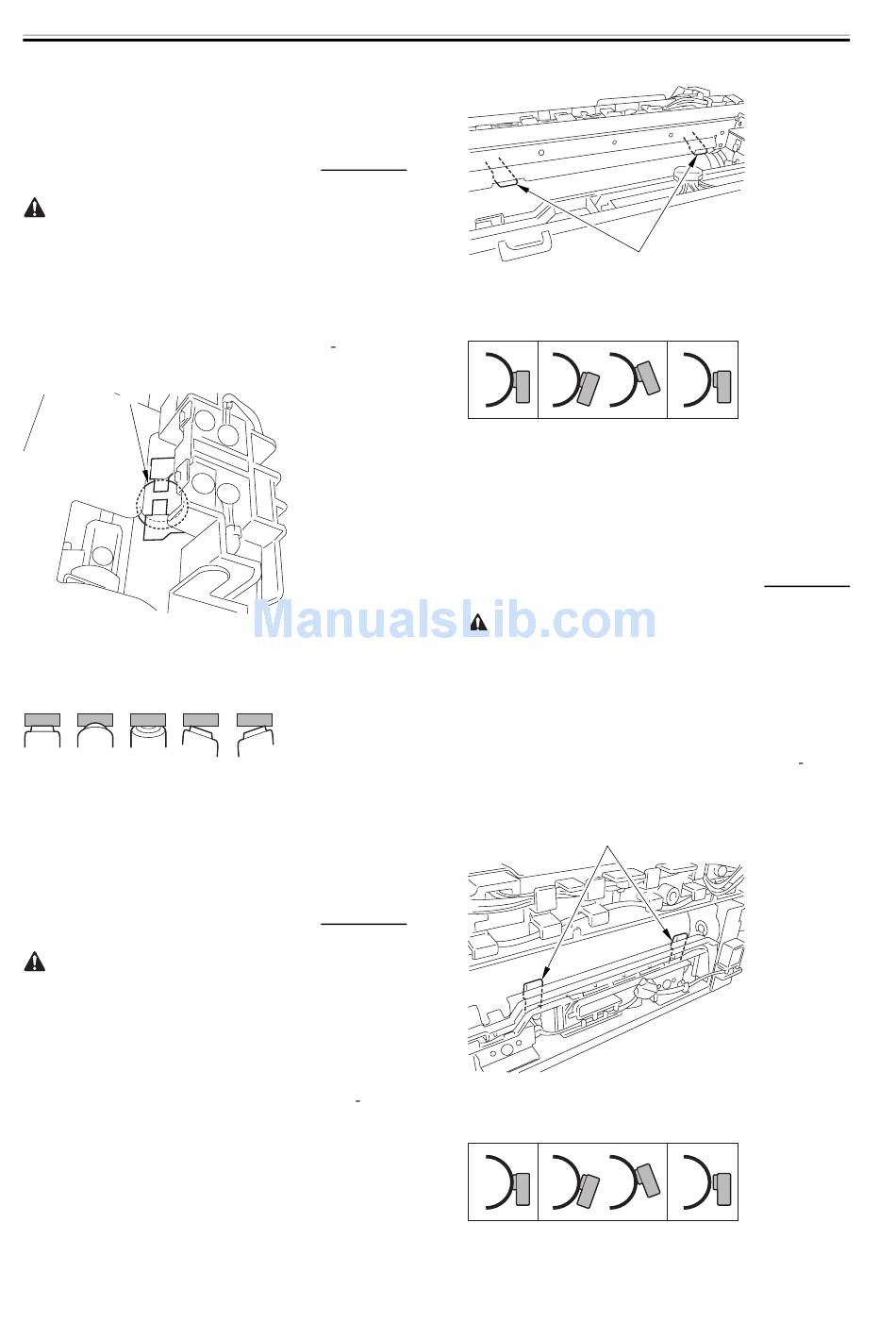

12.6.10 Points to Note When
Mounting the Outside Heating
Roller Thermal Switch
After mounting the thermal switch, check to be
sure of the following:
The surface of the thermal switch [1] must be parallel
to the outside heating roller. (Be sure to shine the
thermal witch switch a pen light.) If not, re mount it.
[1]
F-12-82
OK NG NG NG
F-12-83
12.6.11 Points to Note When
Mounting the Fixing Upper
Thermistor
After mounting the thermistor, make sure of the
following:
The surface of the thermal switch [1] must be parallel
to the fixing roller. (Check to be sure by shining the
thermal switch with a pen light.) Otherwise, re mount
it.
12-40
0004-5060
NG
0005-5549
[1]
F-12-84
OK NG
F-12-85
12.6.12 Points to Note When
Mounting the Fixing Lower
Thermistor
After mounting the thermistor, make sure of the
following:
The surface of the thermal switch [1] must be parallel
to the fixing roller. (Check to be sure by shining the
thermal switch with a pen light.) Otherwise, re mount
it.
[1]
F-12-86
OK NG
F-12-87
NG
0005-5550
NG
