Chapter 7

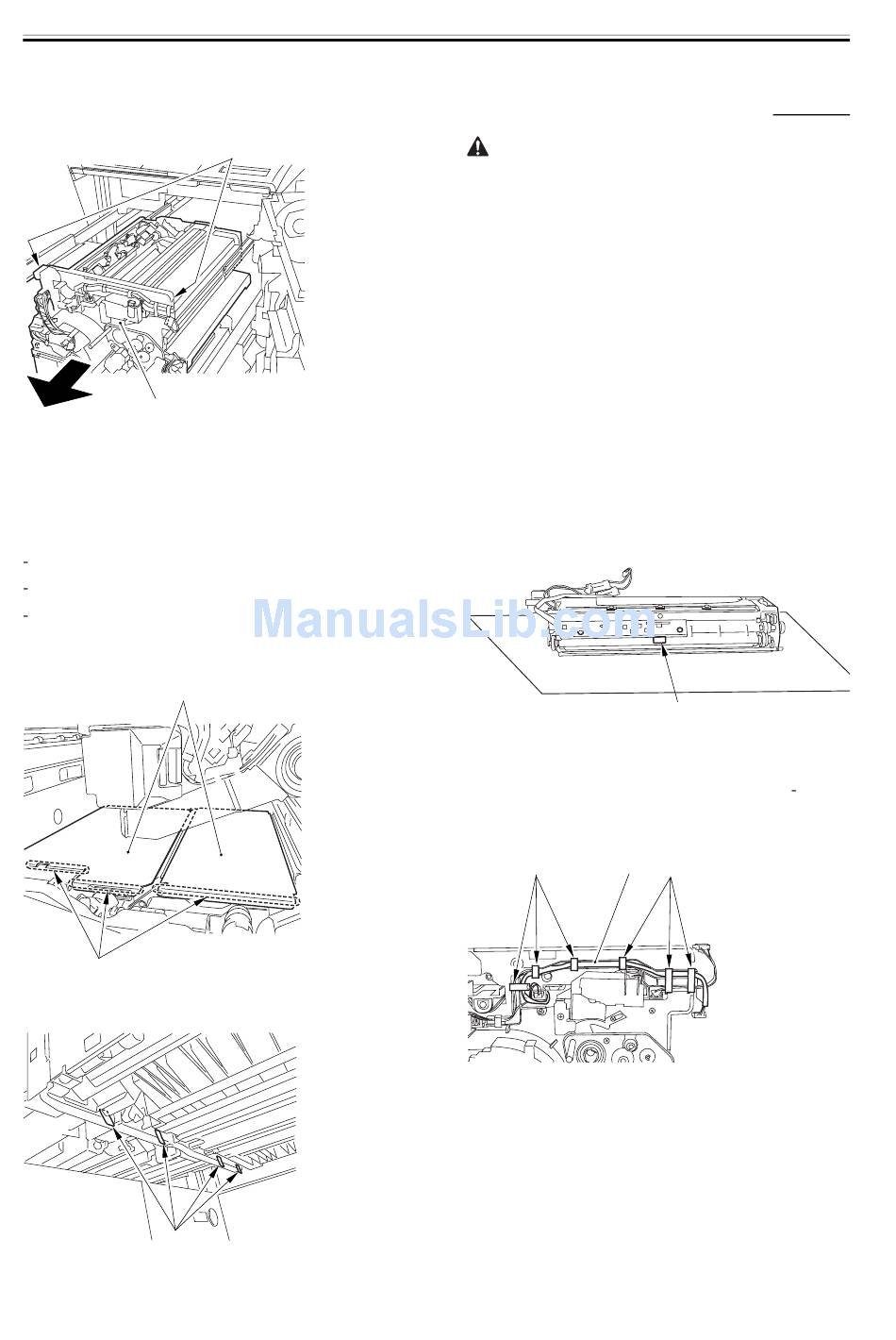

11) Slightly lift both ends [1] of the process unit, and
fully slide out the process unit [2].
[2]
F-7-581
When you have slid out the process unit, check to see
if any of the following parts is soiled with toner before
fitting it back in; if soiled, dry wipe the part:
entire surface of the deck top panel [1]
front bend of the deck top panel [2]
lower rear sheet (4 locations) of the fixing/feeding
assembly [3].
[1]
[2]
F-7-582
[3]
F-7-583
7-174
[1]
7.11.18.5 Removing the Black
Developing Unit
Points to Note About the Work
1 The machine's developing unit is not equipped with
a developing cylinder protection cover. Take full care,
therefore, not to damage the developing cylinder
when you have detached the developing unit.
The waste toner collecting inside the machine can
move into the fixing/feeding assembly through the
outlet; be sure to place paper under the process unit for
the work.
2. The machine's black developing unit is equipped
with a potential sensor. Do not touch the sensor
window [1] indicated in the figure. Moreover, take
care not to drop the black developing assembly or
otherwise subject it to impact so as to avoid damage to
the potential sensor.
F-7-584
1) Open the harness guide used to fix the high voltage
cable [1] in place.
[2] [1]
F-7-585
0002-6286
[1]
[2]
