Bar Code Reader Remove And Replace; Bar Code Reader Removal; Bar Code Reader Replacement; Figure 2-58 Bar Code Reader Removal - Overland Storage Neo Series Library Service Manual

Bar Code Reader Remove and Replace

The Bar Code Reader is mounted on the Shuttle Assembly. No other assemblies need to be removed to
remove the Bar Code Reader.

Bar Code Reader Removal

1) Power off the library using the front panel control and then switch the Master Power Switch
on the power supply at he rear of the module to the off (0) position.
2) Remove the power cord from the receptacle.
3) Remove the tabletop cover and front panel cover using
instructions in this chapter.
4) Remove the cable clamp at the lower front of the Bar Code Reader that secures the cable to the
Shuttle Assembly PCB.
5) Remove the cable at J5 on the Shuttle Assembly PCB.
6) Remove the two screws at the top that mount the Bar Code Reader to the Shuttle Assembly,
see Figure 2–58.
7) Remove the Bar Code Reader from the library.

Bar Code Reader Replacement

1) Position the Bar Code Reader in the opening on the PCB side of the Shuttle Assembly with
the lens pointing through the cartridge opening with the cable on the bottom. The Bar Code
Reader is mounted at a 10 degree angle to the Shuttle Assembly body.
2) Replace the two screws at the top that mount the Bar Code Reader to the Shuttle Assembly,
see Figure 2–58.

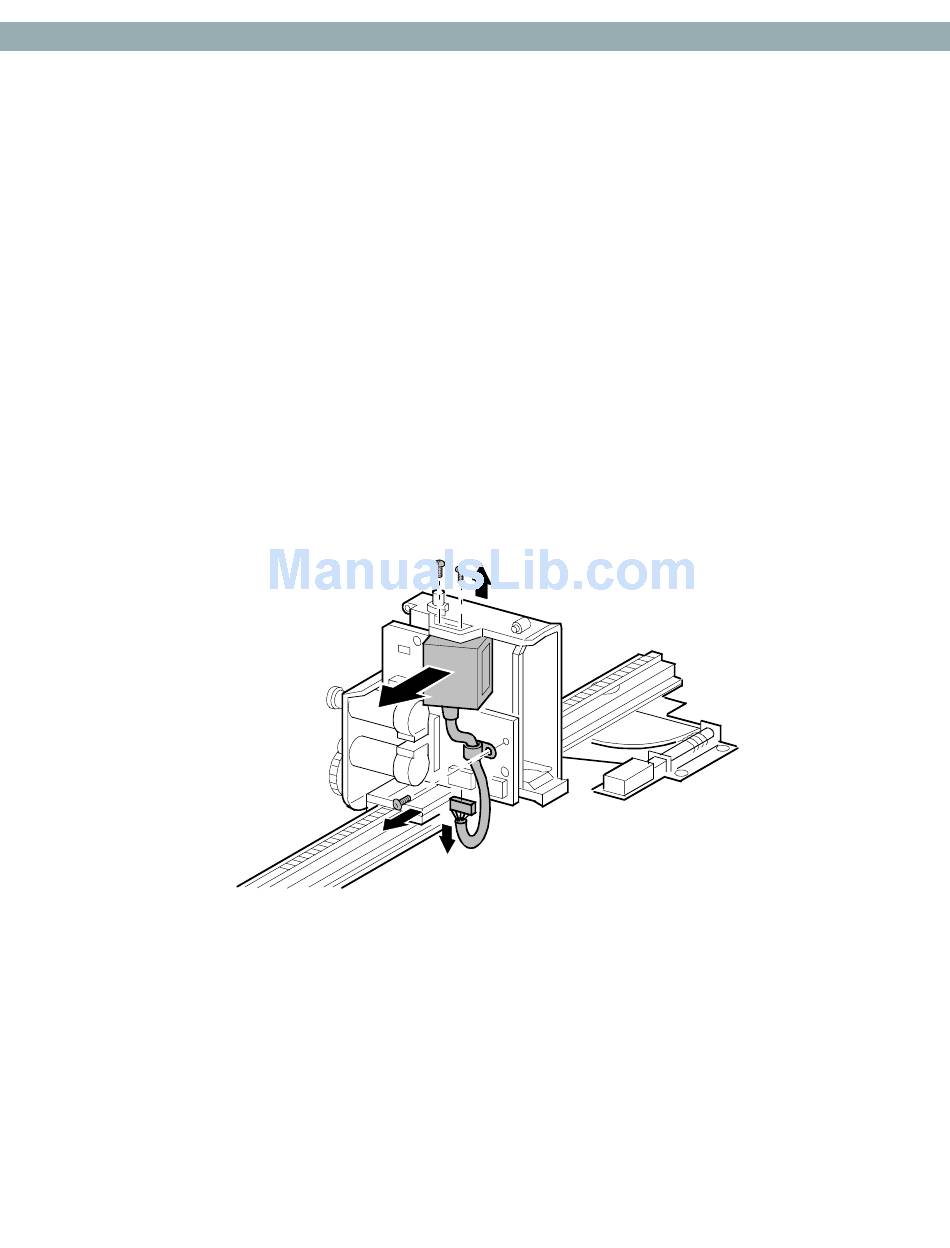

Figure 2–58. Bar Code Reader Removal
B C R R
AR ODE EADER EMOVE AND
"Library Covers Remove and Replace"
Neo-9067
Servicing the Neo Series 2000
R
EPLACE
2-61
