Figure 2-67 Powering Up The Library - Overland Storage Neo Series Library Service Manual

P/n 104241-xxx
Table of Contents

Advertisement

C
S
R
ABLE
UPPORT
OD
2-70
Servicing the Neo Series 2000
u
3) Replace the spacer and screw that mounts the Cable Support Rod to the chassis. See
66.
4) Replace the Front Panel using
5) Replace the tabletop cover and front panel cover using
instructions in this chapter.
6) Turn on the library module as follows, see
1

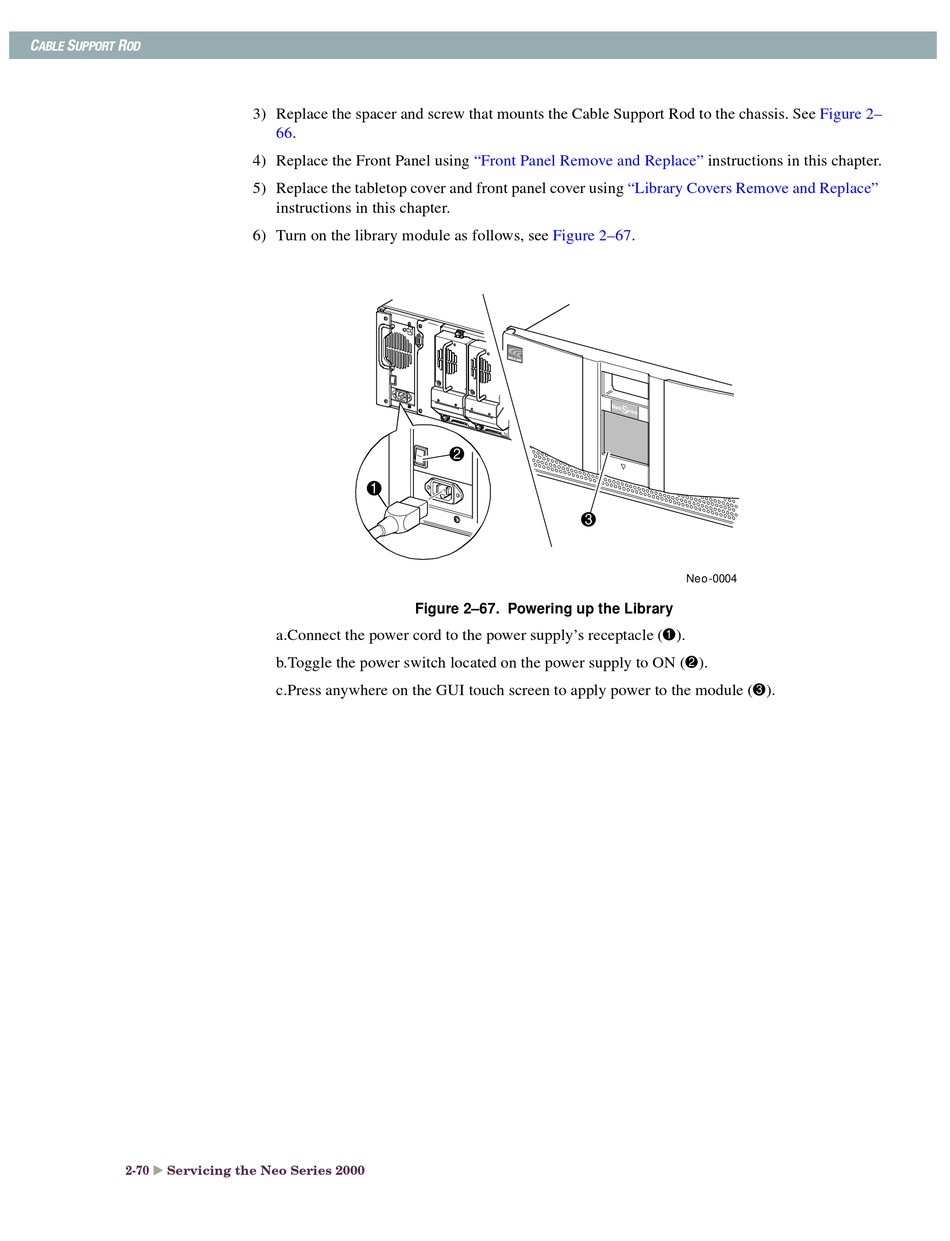

Figure 2–67. Powering up the Library
a.Connect the power cord to the power supply's receptacle (1).
b.Toggle the power switch located on the power supply to ON (2).
c.Press anywhere on the GUI touch screen to apply power to the module (3).
"Front Panel Remove and Replace"
"Library Covers Remove and Replace"
Figure
2–67.
2
3
Figure 2–
instructions in this chapter.
Neo-0004
