Front Panel LED Remove and Replace

The Front Panel LED is mounted inside the Front Panel. The Front panel GUI Assembly must be
removed to replace the Front Panel LED.

Front Panel LED Removal

1) Using the GUI, park the cartridge Shuttle Assembly by powering off the module and then
switch the Master Power Switches on the power supplies at the rear of the module to the off
(0) position. If the module is not operable, refer to
for Service or Shipment".
2) Turn off the Master Power Switches on the power supplies at the rear of the module.
3) Remove the power cords from the receptacle.
4) Remove the Front Panel as described in
5) Remove the GUI Assembly as described in
6) Note the location of the cable tie that is near the left-hand door latch that ties the two door
latch cables and the front panel LED to the Front Panel.
7) Remove the two screws that mount the LED to the Front Panel,
8) Lift the LED board carefully so as not to loosen the triangular LED lens.

Front Panel LED Replacement

1) Place the LED lens on the LED board, aligning the pins with the mounting holes
2) Verify the cable is positioned
3) to the right, (Figure
"Front Panel Remove and
"GUI Assembly Remove and

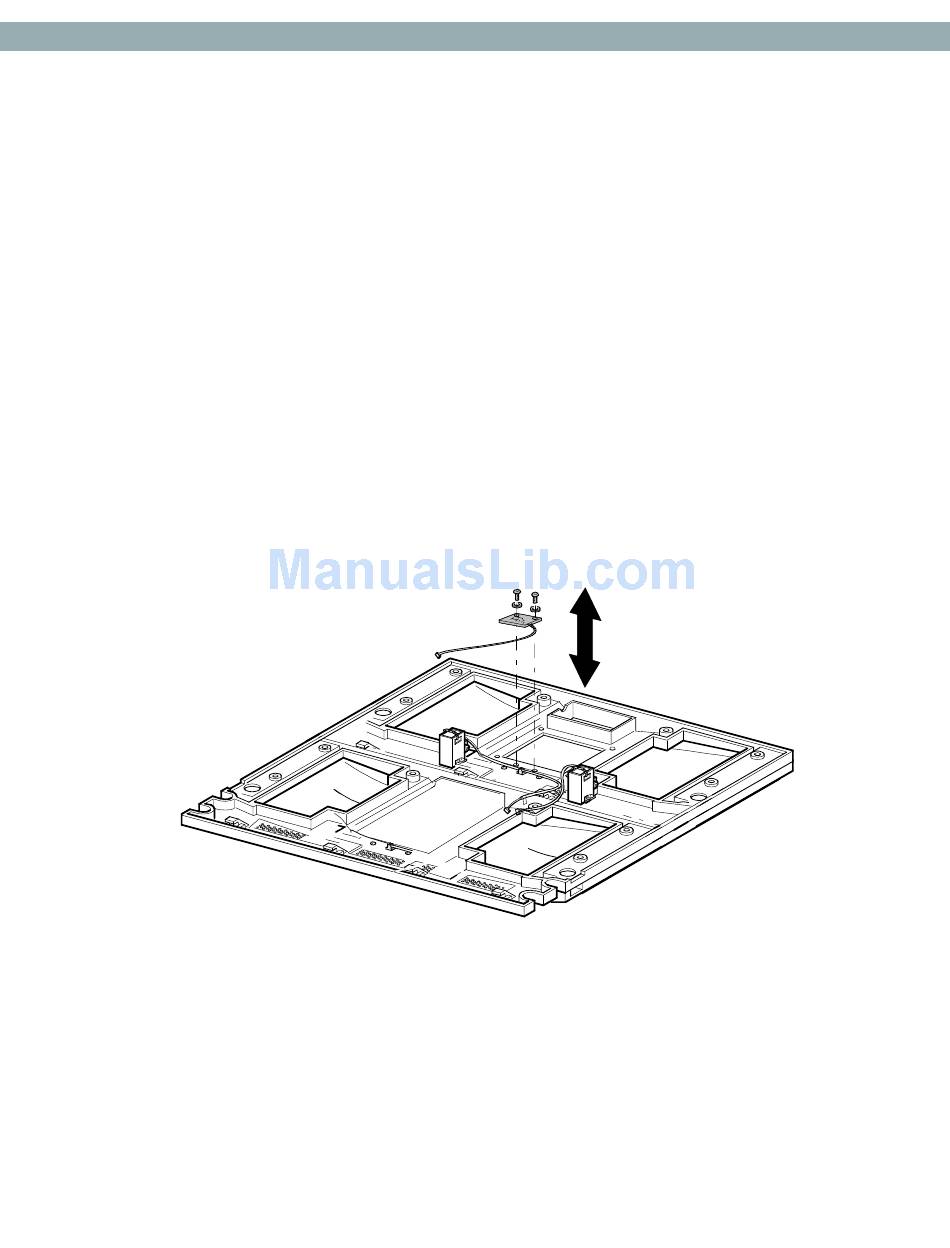

Figure 3–13. LED Remove and Replace
3–13).
F P LED R
RONT ANEL EMOVE AND
"Parking the Shuttle Assembly Robotics
Replace".
Replace".
(Figure 3–13).
Neo-9046b
Servicing the Neo Series 4000
R
EPLACE
3-15
