Magazine Doors

The magazine doors have both an electrical release (via the GUI touch screen) and a manual release. It is
always recommended that you open the magazine doors using the GUI touch screen. However, should
the GUI touch screen fail, you can manually open them by pushing a hex key into the mechanical
releases directly behind the front panel grill (Neo Series 2000) or at the center of each door (Neo Series
4000), see
4-2 Operation
u
Figure 4–2.
CAUTION: The magazine doors must only be opened manually in an emergency. Failure to do so may
cause data loss and equipment damage.
2
1
1
Left Magazine Door Release
2
Library Status LED
3
Right Magazine Door Release

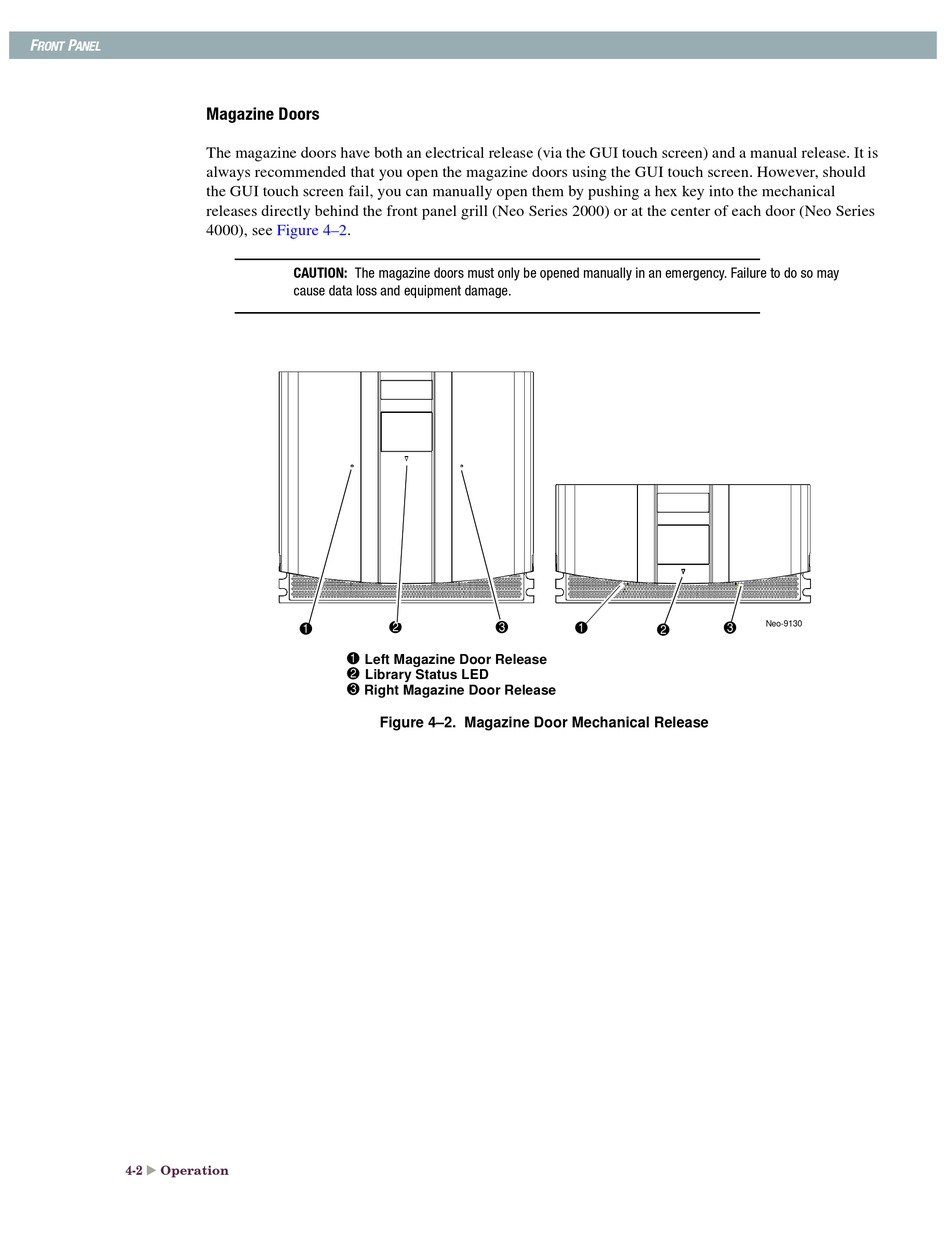

Figure 4–2. Magazine Door Mechanical Release
