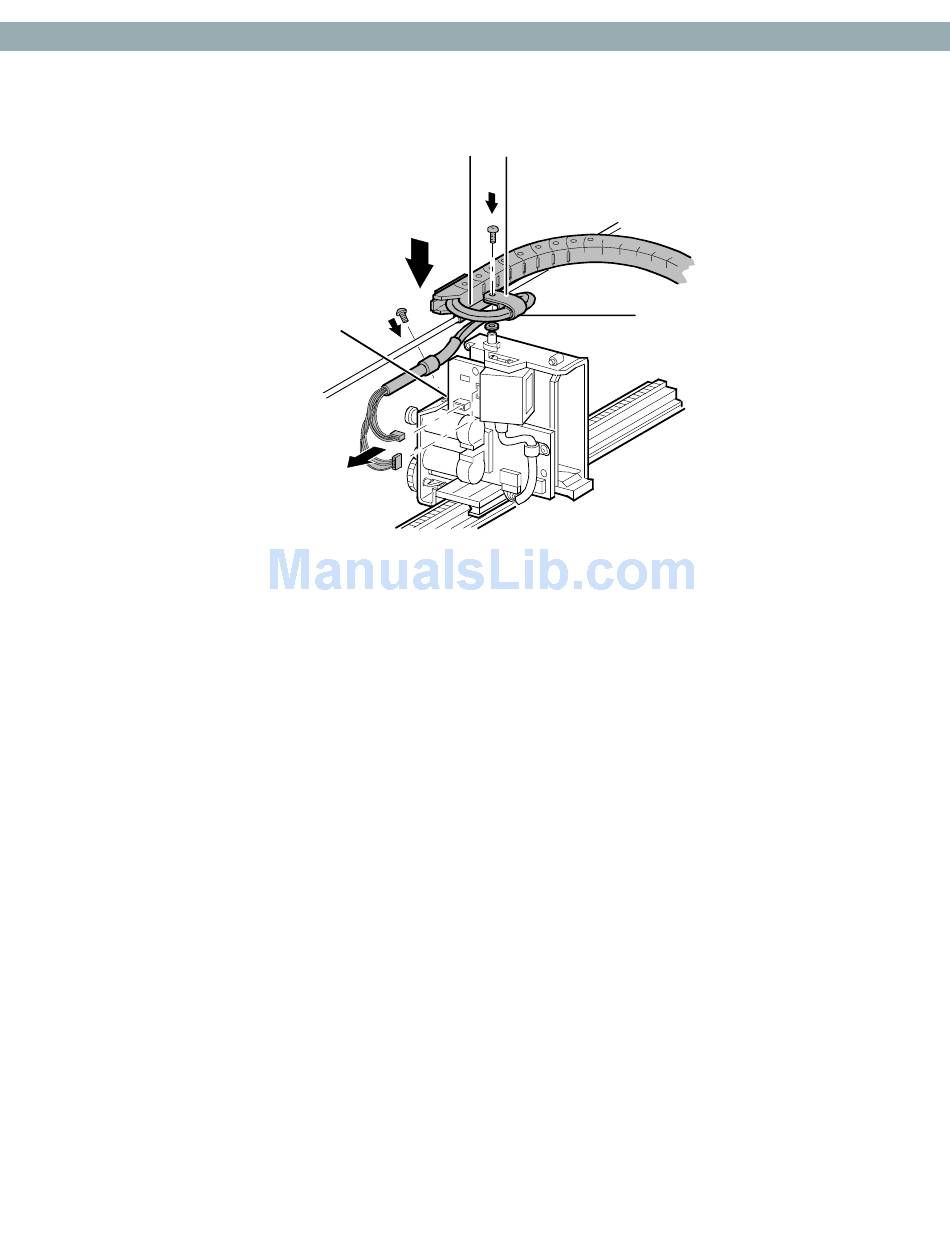

Figure 2-64 Installing Flex Chain On Robot - Overland Storage Neo Series Library Service Manual

Cable Tie
Figure 2–64. Installing Flex Chain on Robot
5) Dress the cables between the Flex Chain and the cable clamp to align the cable tie on the
cables with the rear edge of the cable clamp. The shrink tubing will be inside the clamp. The
cables should exit the cable clamp side-by-side.
6) Tighten the screw against the spacer. Be sure the spacer is inside the screw mounting holes of
the clamp. The cable clamp should be able to rotate after tightening the screw.
7) Continue routing the cables counterclockwise down to the Shuttle Assembly PCB. The cables
should remain parallel and not be twisted around each other. Replace the cables at J9 and J3.
8) Replace the cable clamp above the pulleys. The flat side should be down with the cables above
the mounting screw and the shrink tubing inside the clamp. Do not tighten the screw at this
time.
9) Align the end of the shrink tubing with the edge of the Shuttle Assembly PCB and tighten the
screw.
10) With the Flex Chain still straight along the Cable Support Rod, move the cables inside the
Flex Chain so that the mid-point of the loop at the pivot point is one-half inch from the cable
clamp. See Figure 2–64.
11) Pivot the mounting block end of the Flex Chain to the left (clockwise) and position the
mounting block over the mounting holes in the chassis flange.
12) Move the cables to reveal the screw holes and replace the two flat-head mounting screws. Do
not tighten at this time.
13) Release the brake and move the Shuttle Assembly as far to the front of the library as possible.
The Flex Chain should be curved under the chassis lip at the front of the chassis. Refer to the
section "Parking the Shuttle Assembly Robotics for Service or
1/2"
Cable Tie
Neo-9066b
Shipment"if necessary.
