Shuttle Assembly Track Sensor Replacement; Figure 2-53 Shuttle Assembly Track Sensor Removal - Overland Storage Neo Series Library Service Manual

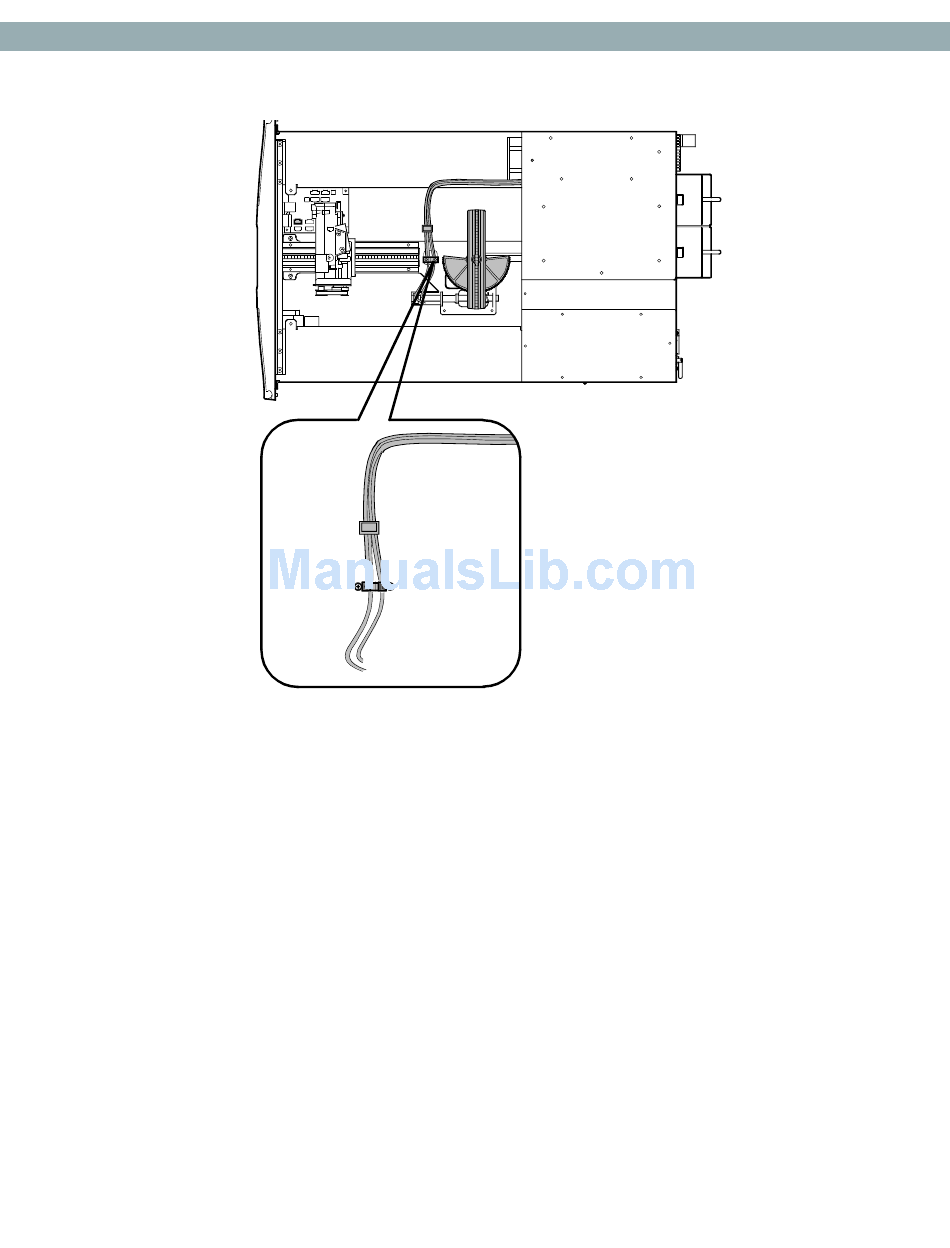

Figure 2–53. Shuttle Assembly Track Sensor Removal
10) Follow the cable to the rear of the library and cut any cable ties to free the cable as it routes
under the left magazine track.
11) Working from the top and inside the drive bay remove the cable at J5 on the Card Cage/Back
Plane PCB. See
12) While pulling the cable from inside the chassis area, guide the cable from the card cage/back
plane connector area through the opening underneath the left magazine track.
13) Remove the sensor from the library. See

Shuttle Assembly Track Sensor Replacement

1) From inside the chassis area, position the Robot Track Sensor with the connector end toward
the rear of the left magazine track. Guide the cable underneath the left magazine track and
through the opening to the card cage/back place connector area.
2) Working from the top and inside the drive bay area, guide the cable into the card cage/back
plane connector area. Feed enough cable through to make the connection to J5. See
42.
Figure 2–42.
Figure
S A T S
HUTTLE SSEMBLY RACK ENSOR
Neo-9065
2–53.
Servicing the Neo Series 2000
R R
EMOVE AND EPLACE
Figure 2–
2-55
