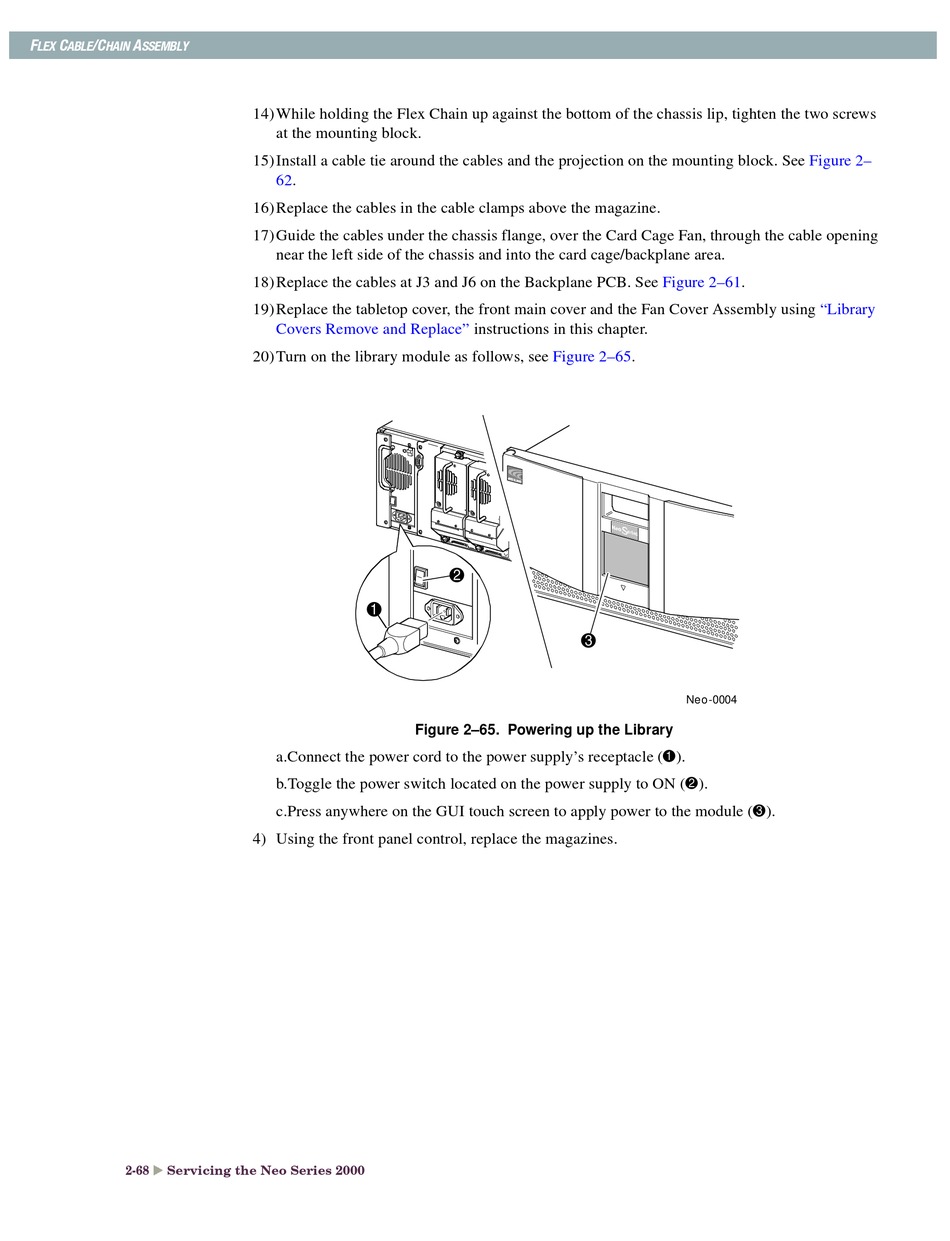

Figure 2-65 Powering Up The Library - Overland Storage Neo Series Library Service Manual

F C /C A
LEX ABLE HAIN SSEMBLY
2-68 Servicing the Neo Series 2000
u
14) While holding the Flex Chain up against the bottom of the chassis lip, tighten the two screws
at the mounting block.
15) Install a cable tie around the cables and the projection on the mounting block. See
62.
16) Replace the cables in the cable clamps above the magazine.
17) Guide the cables under the chassis flange, over the Card Cage Fan, through the cable opening
near the left side of the chassis and into the card cage/backplane area.
18) Replace the cables at J3 and J6 on the Backplane PCB. See
19) Replace the tabletop cover, the front main cover and the Fan Cover Assembly using
Covers Remove and Replace"
20) Turn on the library module as follows, see
1
Figure 2–65. Powering up the Library
a.Connect the power cord to the power supply's receptacle (1).
b.Toggle the power switch located on the power supply to ON (2).
c.Press anywhere on the GUI touch screen to apply power to the module (3).
4) Using the front panel control, replace the magazines.
instructions in this chapter.
Figure 2–65.
2
3
Figure 2–
Figure 2–61.
"Library
Neo-0004
