Cable Support Rod

The Cable Support Rod is mounted on a tab on the front of the chassis behind the Front Panel viewing
port. The Front Panel must be removed to remove the Cable Support Rod.

Cable Support Rod Removal

1) Using the GUI, park the cartridge Shuttle Assembly by powering off the module and then
switch the Master Power Switch on the power supply at the rear of the module to the off (0)
position.
NOTE: If the module is not operable, refer to the section Parking the Shuttle for Service or
Shipment.
2) Remove the tabletop cover and front panel cover using
instructions in this chapter.
3) Remove the Front Panel using
4) Remove the screw and spacer that mounts the Cable Support Rod pivot hole to the chassis, see
Figure 2–66.
5) Pull the Cable Support Rod out the front of the library sliding it out of the pivot block on the
Shuttle Assembly.
6) Remove the Cable Support Rod from the library.

Cable Support Rod Replacement

1) Position the plain end of the Cable Support Rod at the front of the library. Guide the rod into
the library and through the pivot block on the Shuttle Assembly.
2) Position the Cable Support Rod pivot block at the chassis mounting tab so that the mounting
hole is to the left of the Cable Support Rod.
"Front Panel Remove and

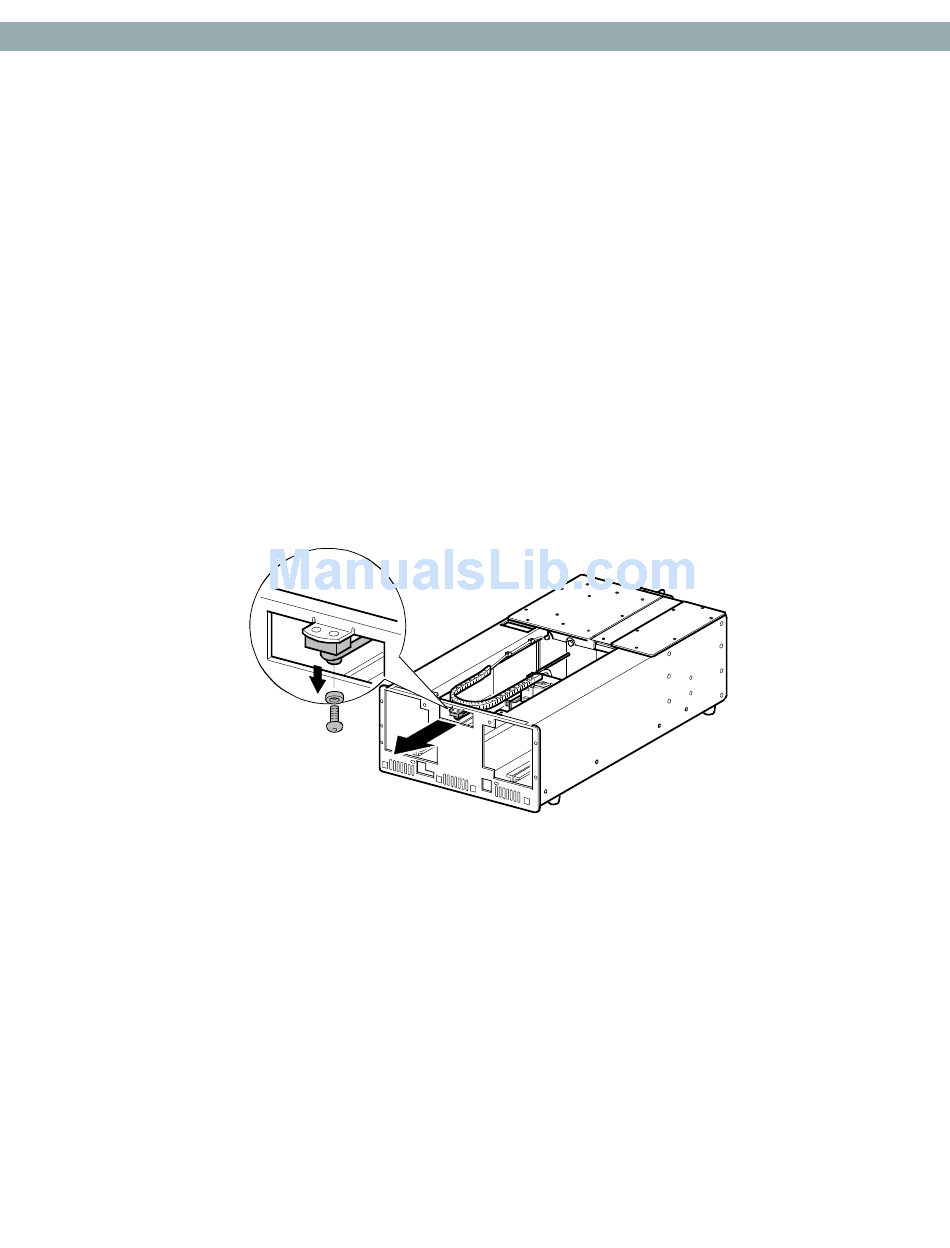

Figure 2–66. Cable Support Rod Removal
C S
ABLE
"Library Covers Remove and Replace"
Replace"instructions in this chapter.
Neo-9069
Servicing the Neo Series 2000
R
UPPORT OD
2-69
