E A E
LEVATOR SSEMBLY XTENSION
C-14
u
Tensioner
Ramp

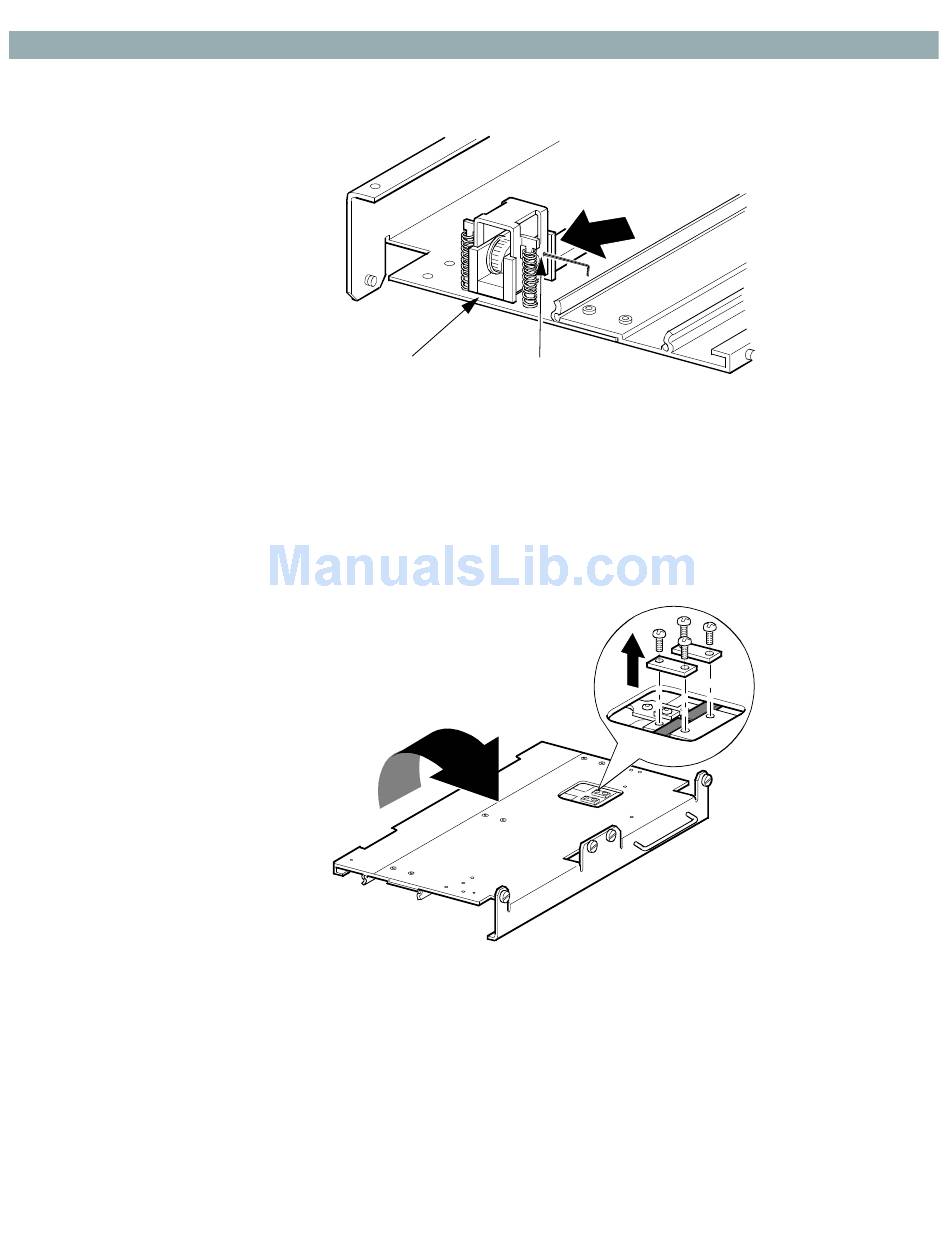

Figure C–11. Tensioner Ramp/Idler Pulley Zero Point
4) Turn the Elevator primary chassis face down.
NOTE: The belt block brackets and fasteners are now visible through the access cutout.
5) Remove the four mounting screws from the two Belt Block Brackets, see
Figure C–12.
6) Turn the primary chassis face up and remove the belt from the Media Elevator Car and the
Tensioner Ramp/Idler Pulley.
Tensioner Ramp
Zero Point
Hold
Neo-9107
Elevator Belt Block and Brackets
Neo-9111
Figure C–12.
