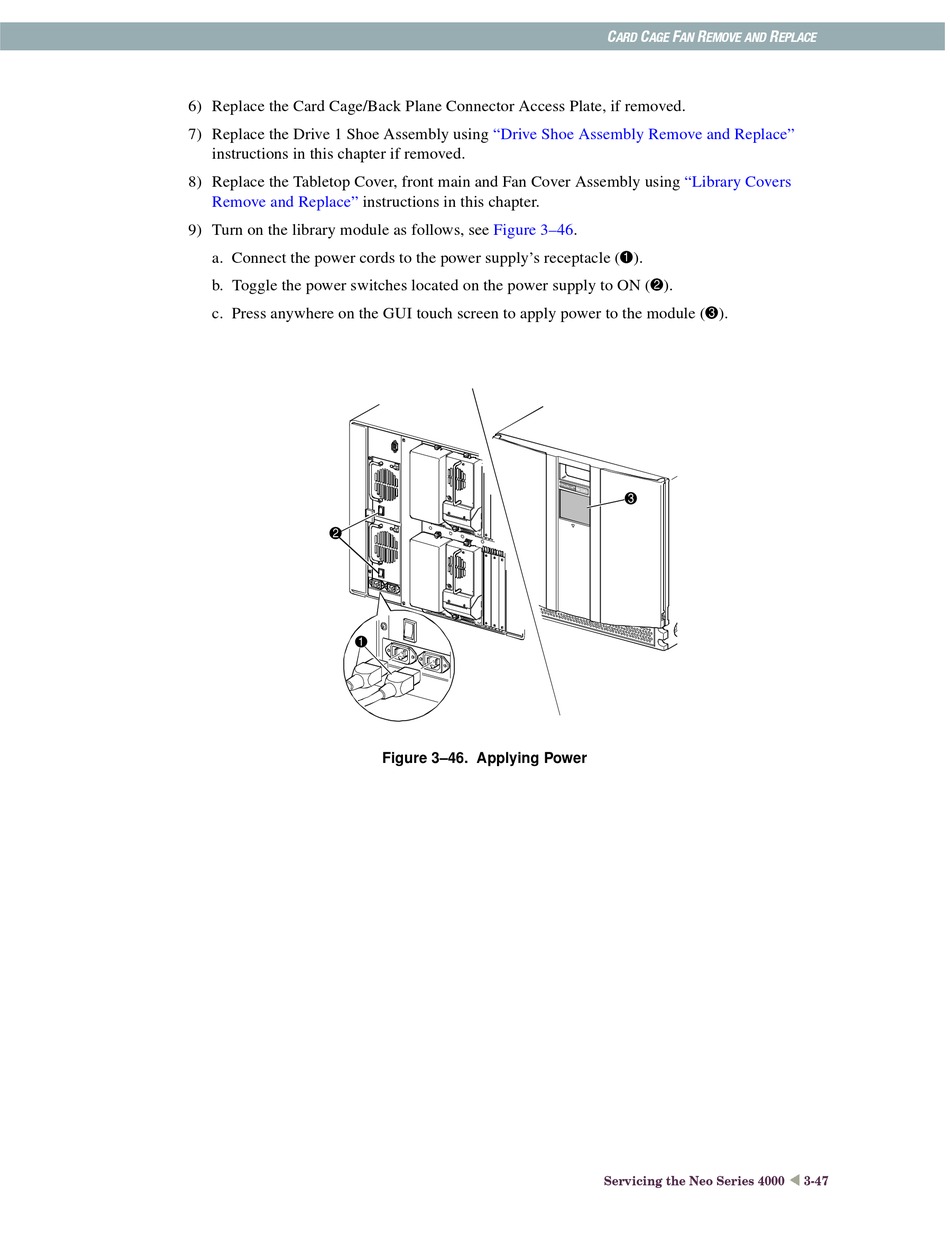

Figure 3-46 Applying Power - Overland Storage Neo Series Library Service Manual

6) Replace the Card Cage/Back Plane Connector Access Plate, if removed.
7) Replace the Drive 1 Shoe Assembly using
instructions in this chapter if removed.
8) Replace the Tabletop Cover, front main and Fan Cover Assembly using
Remove and Replace" instructions in this chapter.
9) Turn on the library module as follows, see
a. Connect the power cords to the power supply's receptacle (1).
b. Toggle the power switches located on the power supply to ON (2).
c. Press anywhere on the GUI touch screen to apply power to the module (3).
2
1
"Drive Shoe Assembly Remove and Replace"
Figure 3–46.
Figure 3–46. Applying Power
