S A T S
HUTTLE SSEMBLY RACK ENSOR
2-56 Servicing the Neo Series 2000
u
R R
EMOVE AND EPLACE
3) Inside the chassis area, route the wires to the motor of the rotating track section between the
sensor mounting studs.
4) Replace the two screws that mount the sensor to the studs on the track base being careful that
the motor wires are not trapped between the sensor and the mounting studs.
5) Route the cable along with the motor wires towards the left magazine track removing the slack
so that the cable and wires lay along the chassis bottom. Continue routing the cable and motor
wires with the other cables running towards the rear of the library.
6) Replace the cable ties where they were removed in step (10) of the removal section.
7) Replace the drive 1 shoe assembly using
instructions in this chapter.
8) Replace the Card Cage/Back Plane Connector Access Plate.
9) Replace the tabletop cover, Fan Cover Assembly and front main cover using
Remove and Replace"
10) Turn on the library module as follows, see
1
a.Connect the power cord to the power supply's receptacle (1).
b.Toggle the power switch located on the power supply to ON (2).
c.Press anywhere on the GUI touch screen to apply power to the module (3).
4) Replace both magazines using the front panel controls.
"Drive Shoe Assembly Remove and Replace"
instructions in this chapter.
Figure
2
3

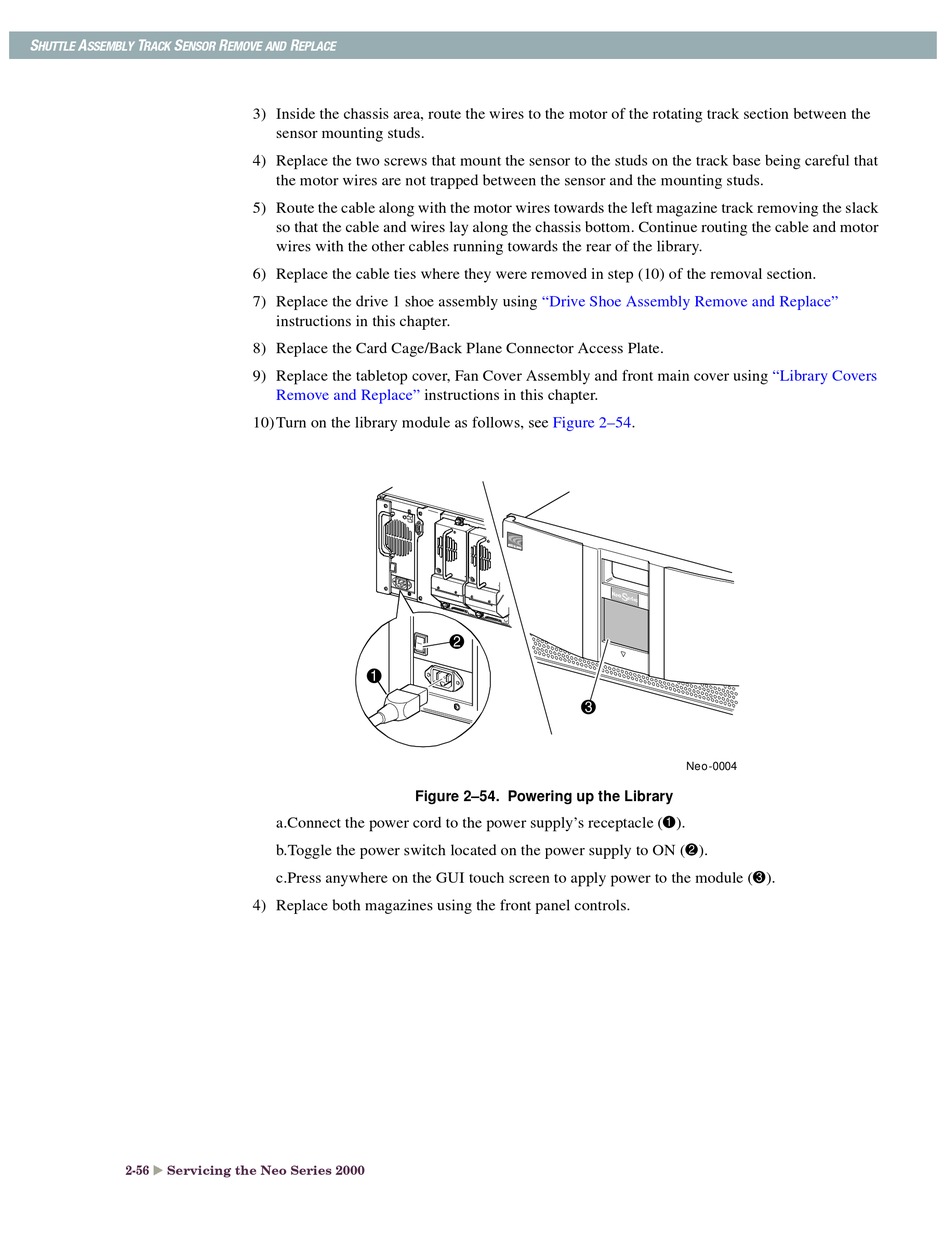

Figure 2–54. Powering up the Library
"Library Covers
2–54.
Neo-0004
