Control Panel PCB Remove and Replace

The Control Panel Printed Circuit Board (PCB) is mounted vertically in between the chassis and
immediately behind the Front Panel. The Front Panel must be removed to access the Control Panel
Printed Circuit Board.

Control Panel PCB Removal

3-22 Servicing the Neo Series 4000
u
R
EPLACE
1) Using the front panel control, park the cartridge Shuttle Assembly by powering off the module
and then switch the Master Power Switches on the power supplies at the rear of the module to
the off (0) position. If the module is not operable, refer to
Robotics for Service or
2) Unplug the power cords.
3) Remove the Front Panel using
4) Verify the cables at J14, J10, J16, J19 and J5 were removed during Front Panel Removal.
5) Remove the four mounting screws and washers from the PCB

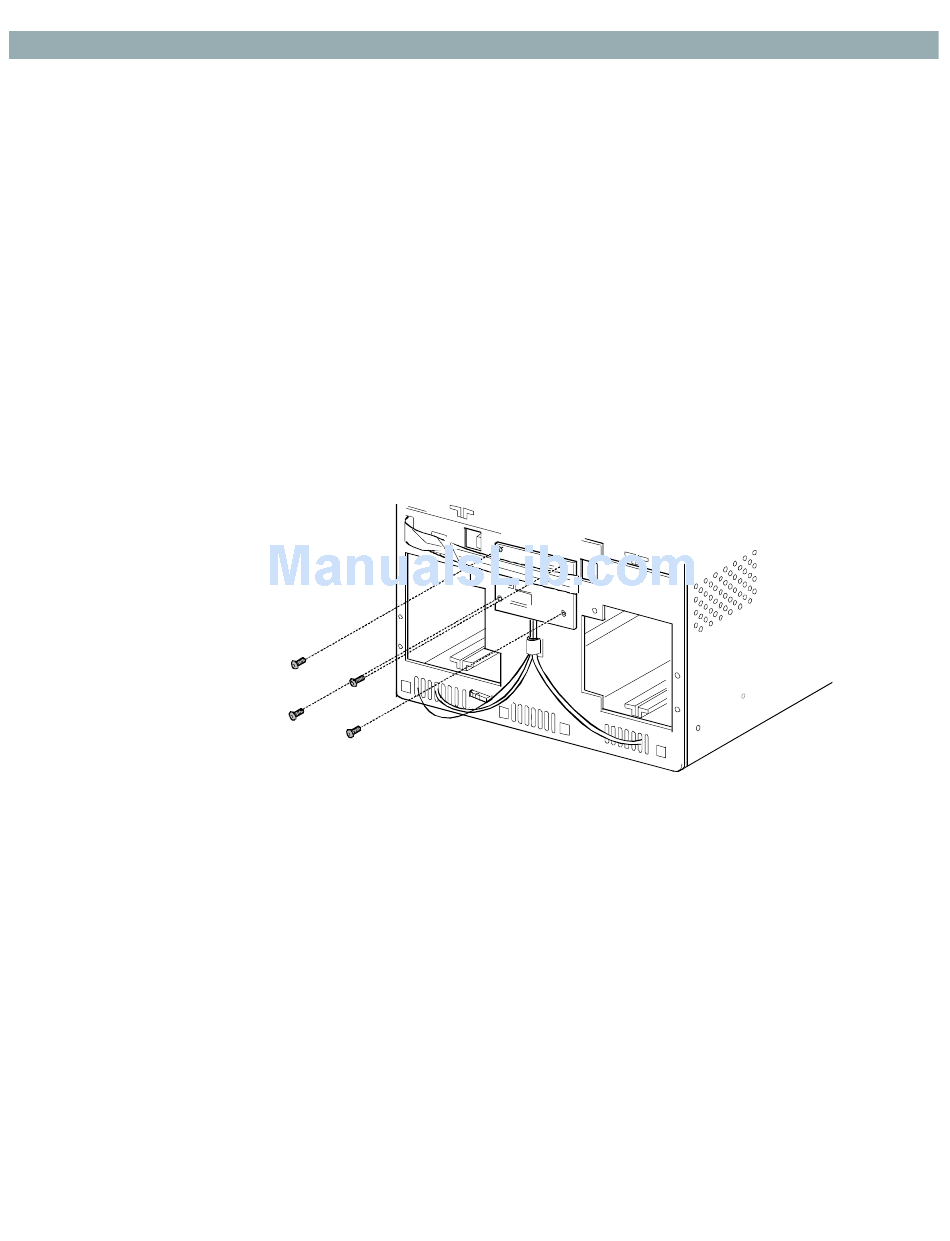

Figure 3–19. Control Panel PCB Mounting Screws
6) Disconnect the cable at J9 and J1. Tilt the Upper edge of the PCB forward and disconnect the
cables at J4, J2, J6, J12, J11, J18, J15,
Shipment".
"Front Panel Remove and Replace"
(Figure 3–20).
"Parking the Shuttle Assembly
instructions in this chapter.
(Figure 3–19).
Neo-9151b
