13) Remove the cables from the cable clamps about the left magazine
14) Cut the cable tie at the flex chain mounting block and move the cables to reveal two flat-head
mounting screws. See Figure
Flex Chain
Mounting Block
15) Remove the two flat-head screws that hold the mounting block on the chassis flange.
16) Remove the screw holding the cable clamp above the pulleys on the Shuttle Assembly. See
Figure 2–63.
2–62.
Projection
Cable Tie

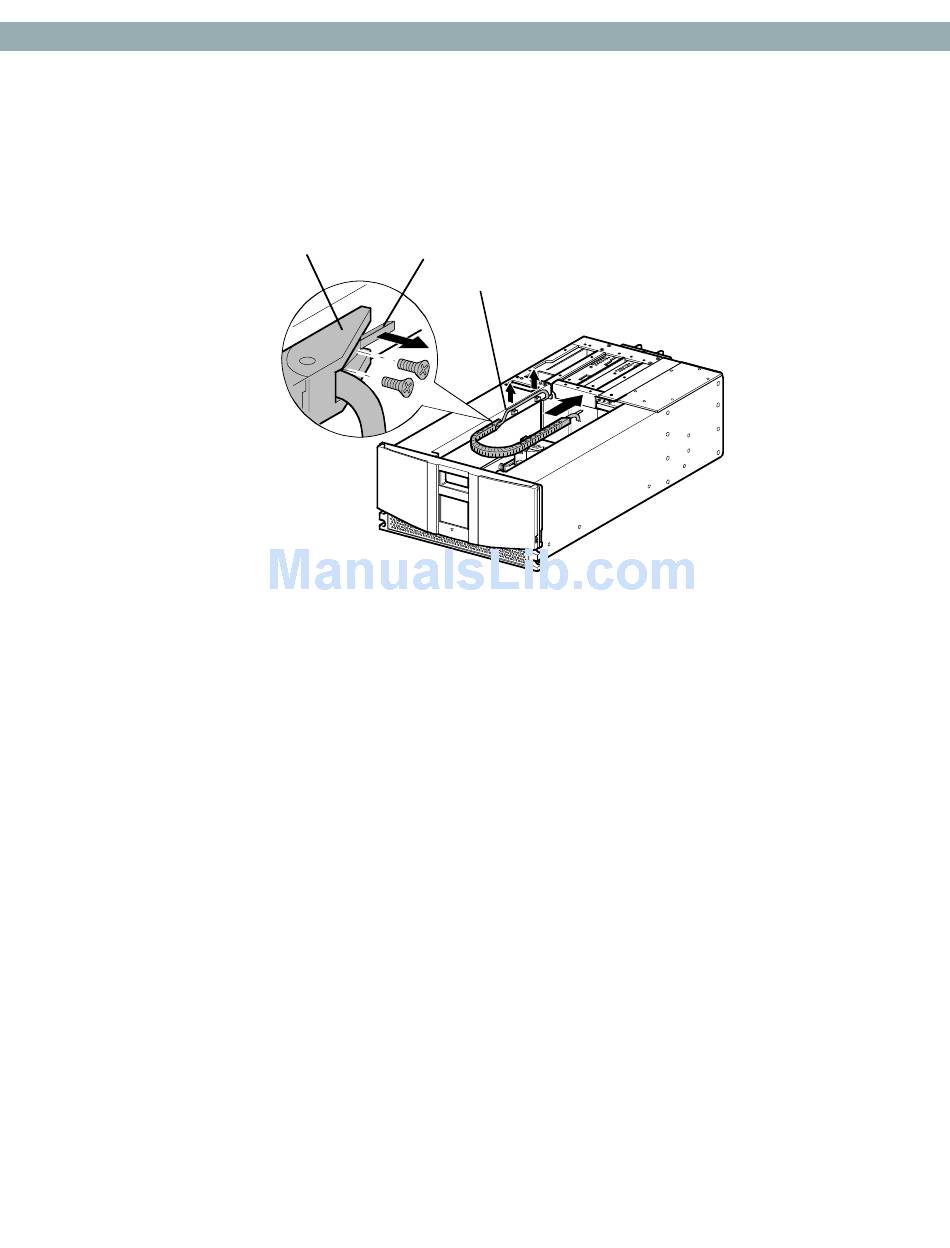

Figure 2–62. Flex Chain Removal
F C /C A
LEX ABLE HAIN SSEMBLY
Neo-9068
Servicing the Neo Series 2000 2-65
