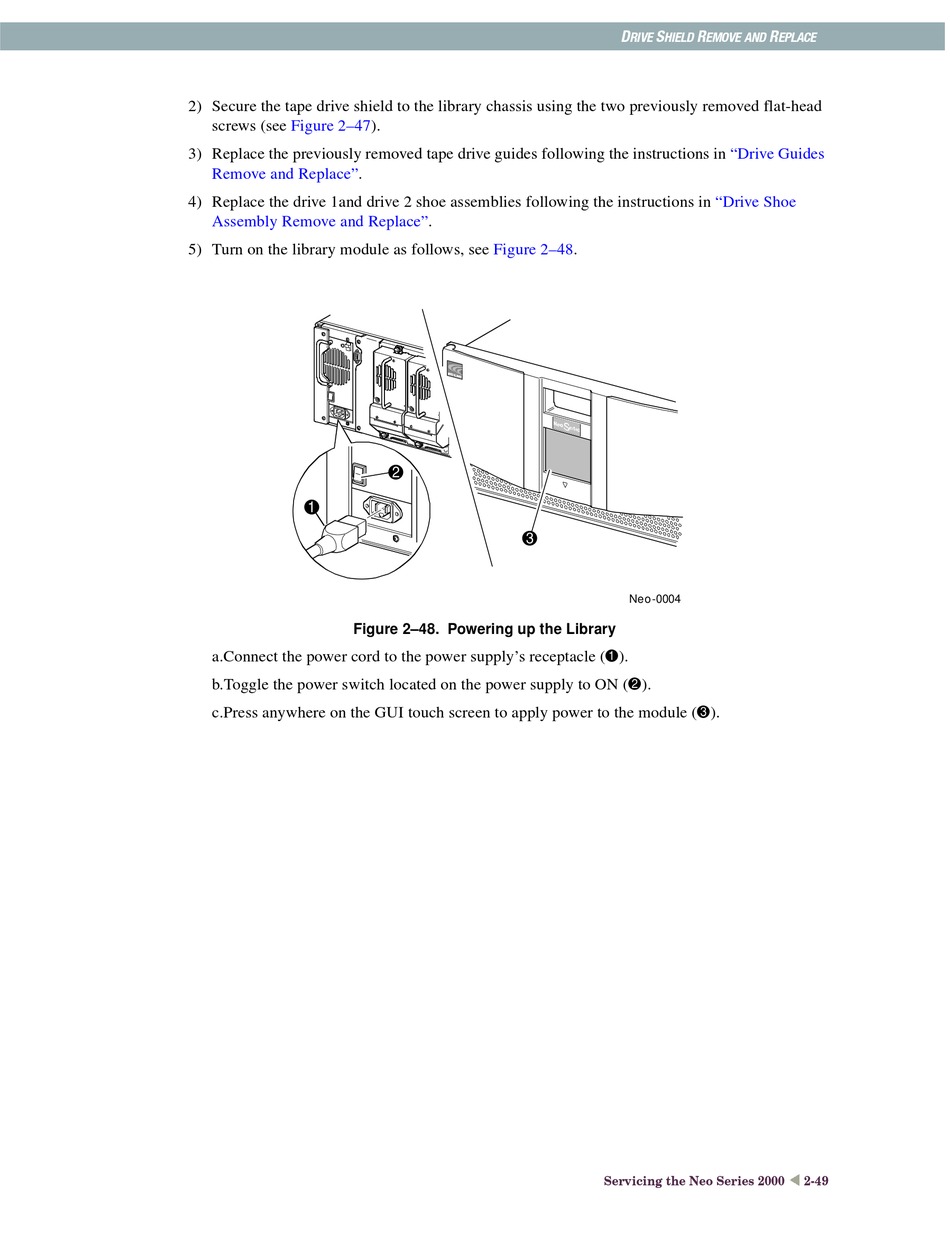

Figure 2-48 Powering Up The Library - Overland Storage Neo Series Library Service Manual

2) Secure the tape drive shield to the library chassis using the two previously removed flat-head
screws (see Figure 2–47).
3) Replace the previously removed tape drive guides following the instructions in
Remove and Replace".
4) Replace the drive 1and drive 2 shoe assemblies following the instructions in
Assembly Remove and
5) Turn on the library module as follows, see
1
Figure 2–48. Powering up the Library
a.Connect the power cord to the power supply's receptacle (1).
b.Toggle the power switch located on the power supply to ON (2).
c.Press anywhere on the GUI touch screen to apply power to the module (3).
Replace".
Figure 2–48.
2
3
D S R R
RIVE HIELD EMOVE AND EPLACE
"Drive Guides
"Drive Shoe
Neo-0004
Servicing the Neo Series 2000 2-49
