Control Panel Board

r
1
2
3
4
Figure Legend
1
2
3
4
5
6
7
8
9
-
q
w
e
r
e w
5
6

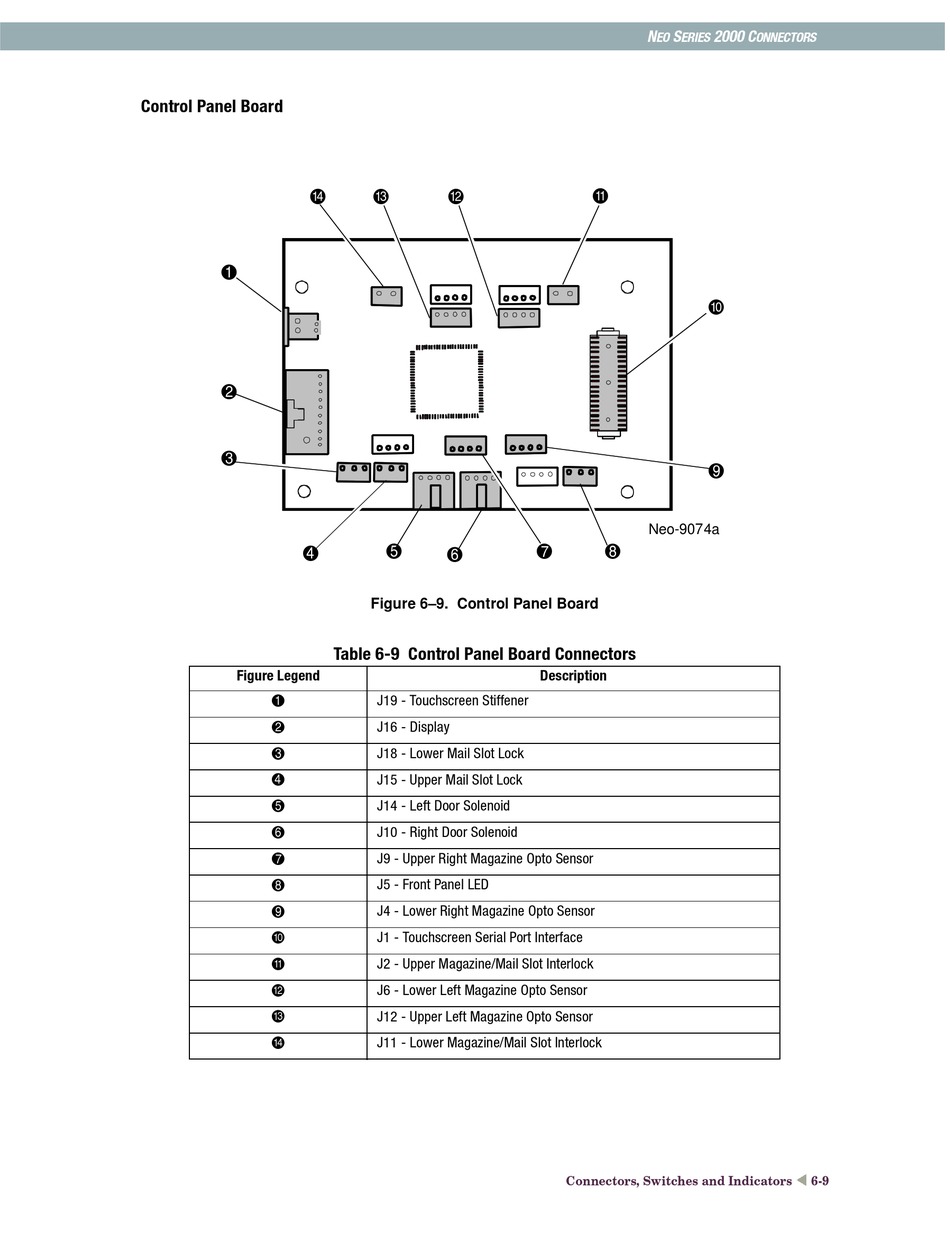

Figure 6–9. Control Panel Board

Table 6-9 Control Panel Board Connectors

J19 - Touchscreen Stiffener
J16 - Display
J18 - Lower Mail Slot Lock
J15 - Upper Mail Slot Lock
J14 - Left Door Solenoid
J10 - Right Door Solenoid
J9 - Upper Right Magazine Opto Sensor
J5 - Front Panel LED
J4 - Lower Right Magazine Opto Sensor
J1 - Touchscreen Serial Port Interface
J2 - Upper Magazine/Mail Slot Interlock
J6 - Lower Left Magazine Opto Sensor
J12 - Upper Left Magazine Opto Sensor
J11 - Lower Magazine/Mail Slot Interlock
N S 2000 C
EO ERIES
q
-
9
Neo-9074a
7 8
Description
Connectors, Switches and Indicators
ONNECTORS
6-9
