SCSI I/O B P A
OARD AND LUG SSEMBLY

SCSI I/O Board and Plug Assembly Replacement

2-46 Servicing the Neo Series 2000
u

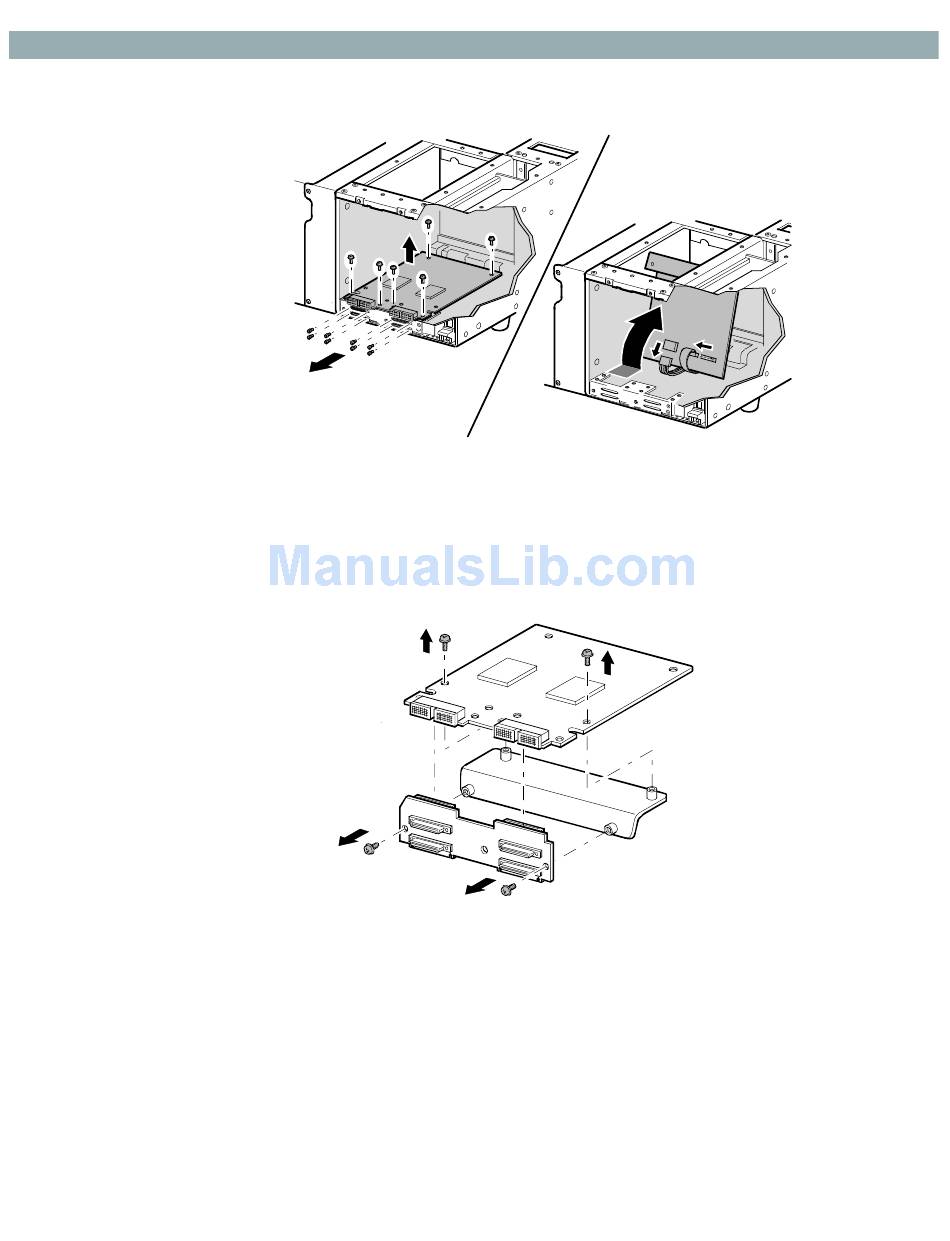

Figure 2–44. SCSI I/O Board Removal
12) Remove the cables at J1 and J5 (see
13) Remove two screws that mount the SCSI Connector Plate Assembly to the SCSI I/O PCB, see
Figure 2–45.
Figure 2–45. SCSI I/O Board / Plug Assembly
14) Disconnect the SCSI Connector Plate Assembly from the High Density SCSI I/O Board.
1) Replace the SCSI Connector Plate Assembly on the High Density SCSI I/O Board. See
Figure 2–45.
Figure 2–44). Remove the PCB from the library.
Neo-9058
Neo-9059
