C C /B P R
ARD AGE ACK LANE EMOVE AND
3-52 Servicing the Neo Series 4000
u
R
EPLACE

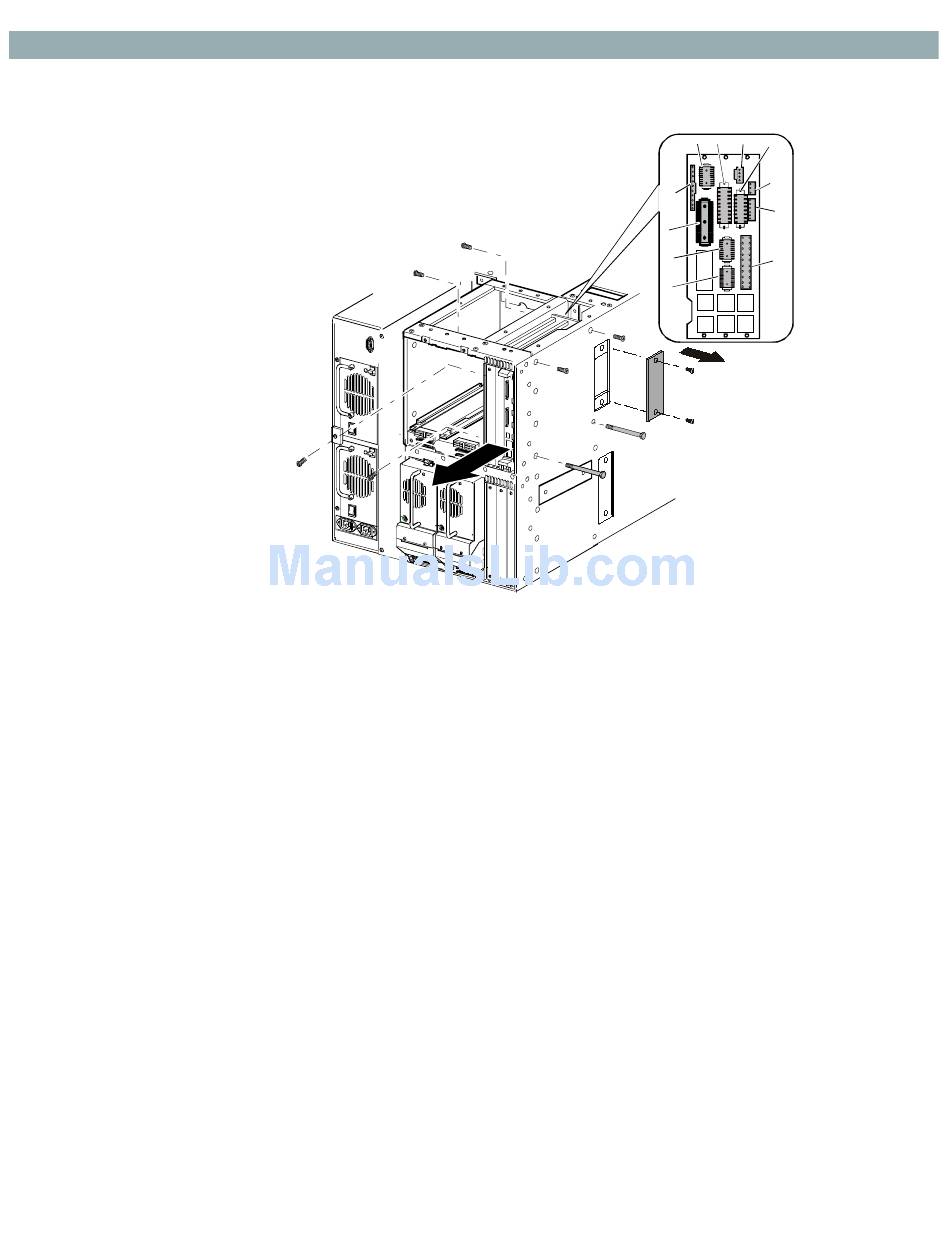

Figure 3–50. Card Cage Back Plane Assembly Removal
12) From outside the chassis, remove two flat-head screws at the top of the Card Cage and two
flat-head through-bolts at the bottom of the Card Cage.
13) Remove blank panels on the front of the Card Cage
14) Remove the 1 screw from the backplane board stiffener.
15) From inside the Card Cage, remove the grounding strip plate and spacer (2 screws, similar to
Figure 3–52).
16) Slide the Card Cage halfway out.
17) With the Card Cage loose and working from inside the drive bay access and the top, remove
the cables from J5, J6, J12, J2, J11, J1, J7, J8, J10, J9 and J4.
18) Slide the Card Cage out of the library.
J6 J1 J5
J7
J1 1
J12
J8
J2
J10
J4
J9
Neo-9057a
