Front Chassis Cover Replacement; Fan Cover Assembly Removal; Fan Cover Assembly Replacement; Figure 3-4 Cooling Fan Disconnect - Overland Storage Neo Series Library Service Manual

L C R R
IBRARY OVERS EMOVE AND EPLACE

Front Chassis Cover Replacement

Fan Cover Assembly Removal

Fan Cover Assembly Replacement

3-6 Servicing the Neo Series 4000
u
2) Lift the closest edge of the Front Chassis Cover slide it toward the front of the library to
release the two rear tabs and then lift it up and away from the library chassis.
1) Carefully slide the cover toward the back of the library and engage the two rear tabs and seat
the cover in the library chassis,
2) Replace the two screws that secure the cover to the library chassis.
1) Remove the 11 screws that secure the cover to the library chassis,
2) Lift the inside edge of the Fan Cover Assembly and disconnect the cooling fan.

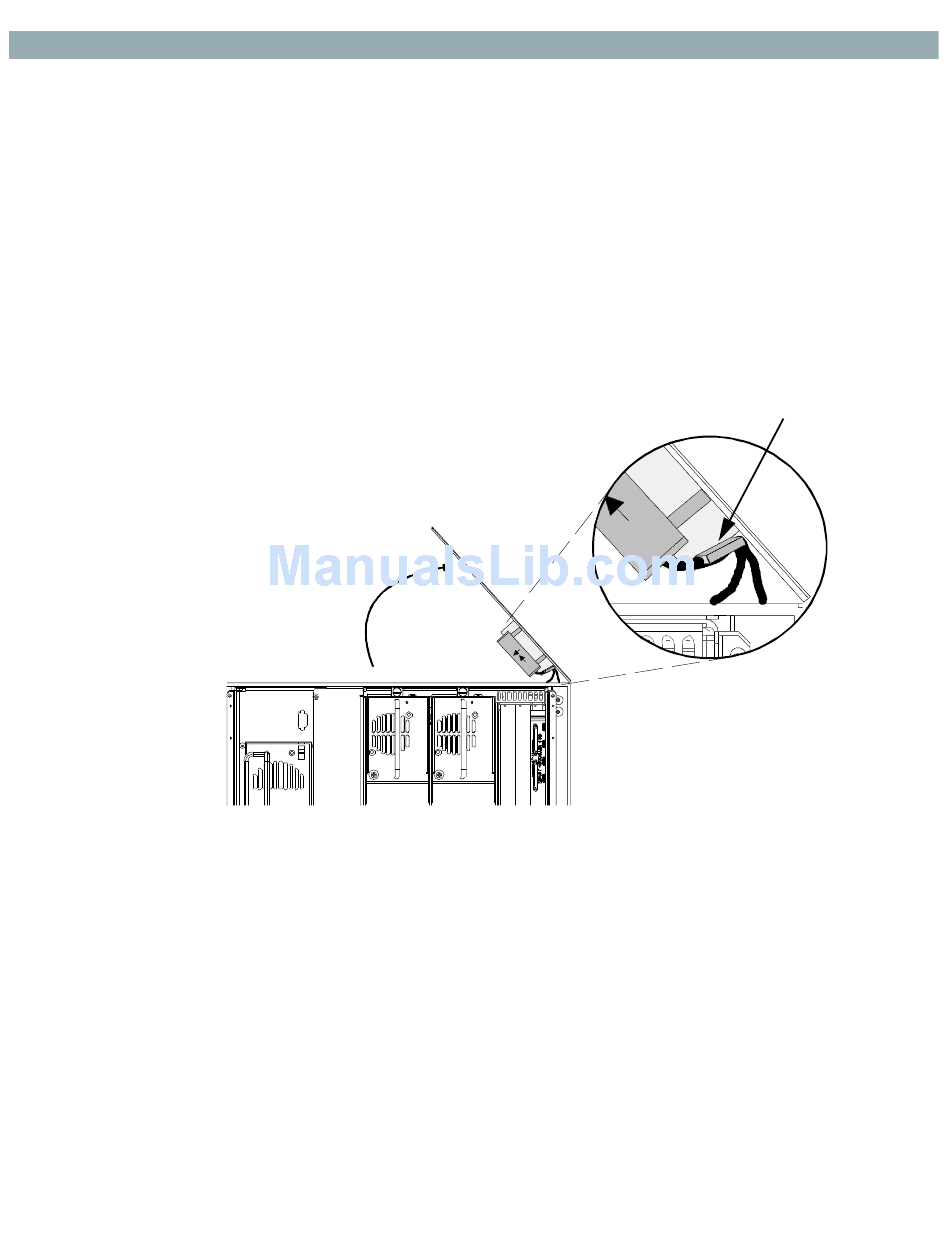

Figure 3–4. Cooling Fan Disconnect
3) Lift the cover up and away from the library chassis.
1) Connect the power cable from the fan attached to the Fan Cover Assembly cover to the Y
connector coming from the card cage fan.
2) Lower the cover vertically towards the unit.
3) Ensure that the fan power cables do not bind between the cover and the top of the library
chassis.
4) Seat the cover on the library chassis aligning the screw holes,
5) Replace the 11 screws that secure the cover to the library chassis.
(Figure 3–5).
.
Neo-0031a
(Figure 3–5).
(Figure 3–5).
