C I C
ABLING AND NTERFACE ONNECTIONS
C-28
u
6) Continue connecting cables, Router port 3 to the third module, port 4 to the fourth module and
so on until all modules are connected to the router.
NOTE: Ensure power is off before proceeding with steps 7 and 8
7) Connect the male to male 9-pin cable from the Primary Master to the lower serial port
connection on the Elevator Assembly, see
8) Connect the other 9-pin cable from the Secondary Master (module 2 in this example) to the
upper serial port connection on the Elevator Assembly, see
NOTE: The 9-pin Elevator cable to the Secondary Master module enables the firmware (by
operator initialization) to initiate a fail-over from the Primary Master (Active) to the
Secondary Master (Standby) and designate it as the Secondary Master (Active).
9) Verify and or the connect power cord to the Router.
10) Apply power to the Router.
NOTE: The Router must be powered up before the Neo modules.
11) Turn on the library modules as follows, see
2
1

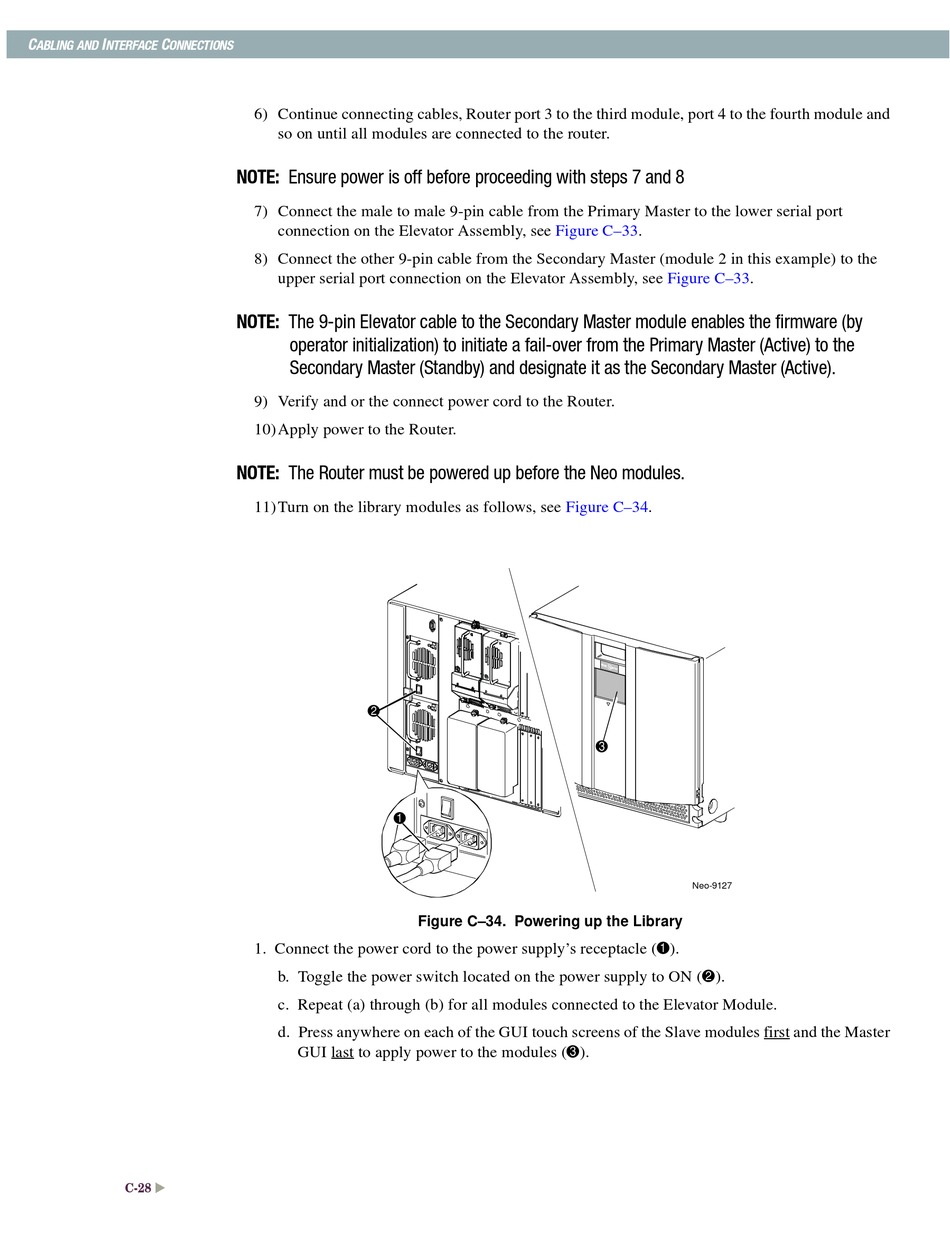

Figure C–34. Powering up the Library
1. Connect the power cord to the power supply's receptacle (1).
b. Toggle the power switch located on the power supply to ON (2).
c. Repeat (a) through (b) for all modules connected to the Elevator Module.
d. Press anywhere on each of the GUI touch screens of the Slave modules first and the Master
GUI last to apply power to the modules (3).
Figure C–33.
Figure C–33.
Figure C–34.
3
Neo-9127
